81-82 KZ1100A Meter “Damper” 20 Aug 2022 06:20 #872527

  • AmStaFF
  • AmStaFF's Avatar Topic Author
  • Offline
  • User
  • Posts: 30
  • Thank you received: 5

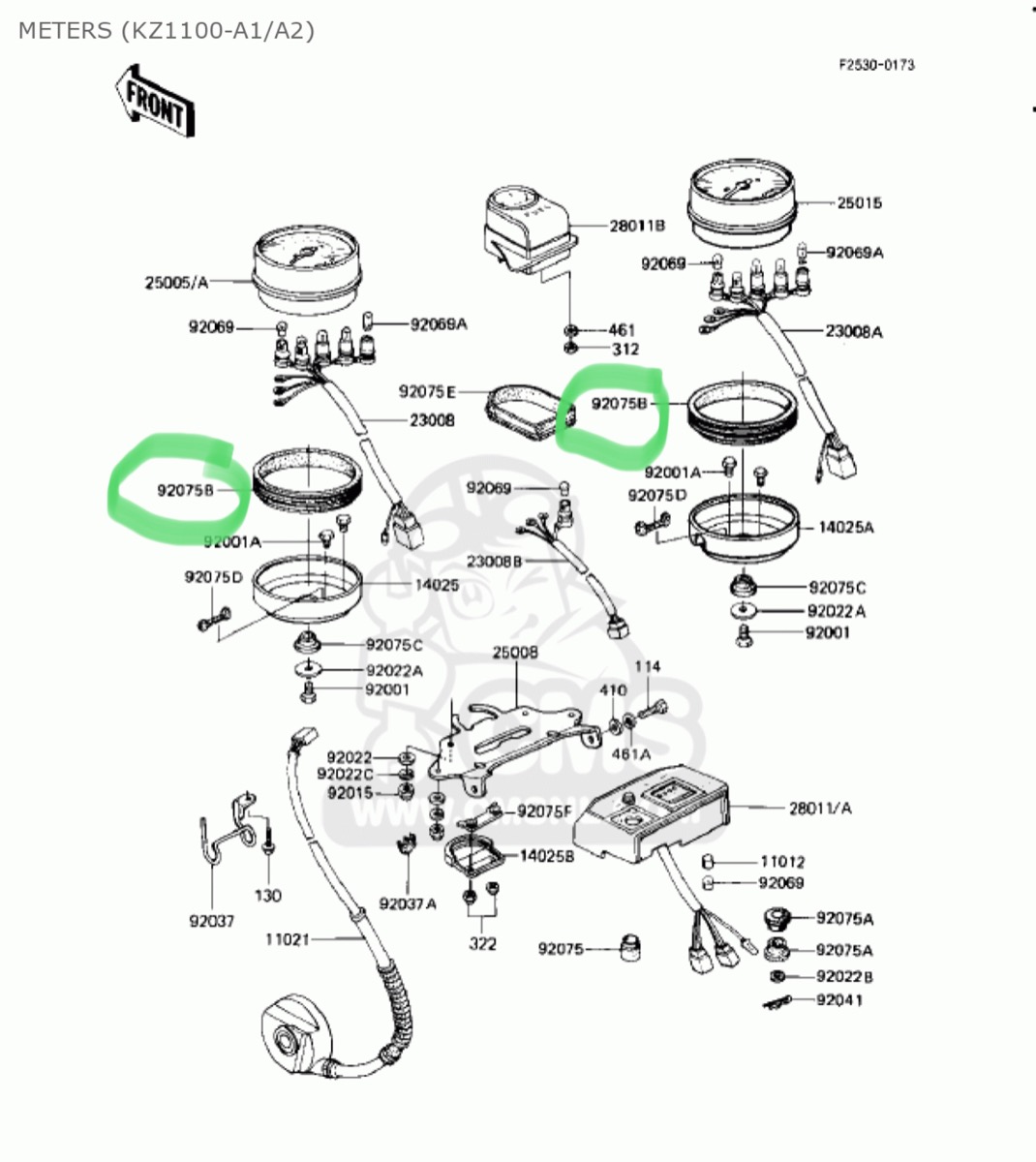

Does any inmate know of a source or substitute for replacing the rubber isolating gasket between the speedo/tach and the mounting cup?

Attachment not found

1981 KZ1100A
2013 Moto Guzzi Griso
2020 Moto Guzzi V85TT
2021 Husq FE350

Please Log in or Create an account to join the conversation.

81-82 KZ1100A Meter “Damper” 20 Aug 2022 06:22 #872528

  • AmStaFF
  • AmStaFF's Avatar Topic Author
  • Offline
  • User
  • Posts: 30
  • Thank you received: 5
1981 KZ1100A
2013 Moto Guzzi Griso
2020 Moto Guzzi V85TT
2021 Husq FE350
Attachments:

Please Log in or Create an account to join the conversation.

81-82 KZ1100A Meter “Damper” 20 Aug 2022 06:58 #872530

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
Meter damper substitute for 92075-1315 >> windshield wiper blade. Linked topic below has good pics.

Topic title = 1981 KZ1000 Speedo/Tach Rubber damper alternative by EksCelle:
www.kzrider.com/forum/4-electrical/61290...r-alternative#823762

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

81-82 KZ1100A Meter “Damper” 20 Aug 2022 07:50 #872532

  • Moose1800
  • Moose1800's Avatar
  • Offline
  • Sustaining Member
  • Posts: 295
  • Thank you received: 252

Meter damper substitute for 92075-1315 >> windshield wiper blade. Has good pics.

Topic title = 1981 KZ1000 Speedo/Tach Rubber damper alternative by EksCelle:
www.kzrider.com/forum/4-electrical/61290...r-alternative#823762
That's what I call thinking outside the box !

Please Log in or Create an account to join the conversation.

81-82 KZ1100A Meter “Damper” 21 Aug 2022 04:34 #872587

  • AmStaFF
  • AmStaFF's Avatar Topic Author
  • Offline
  • User
  • Posts: 30
  • Thank you received: 5

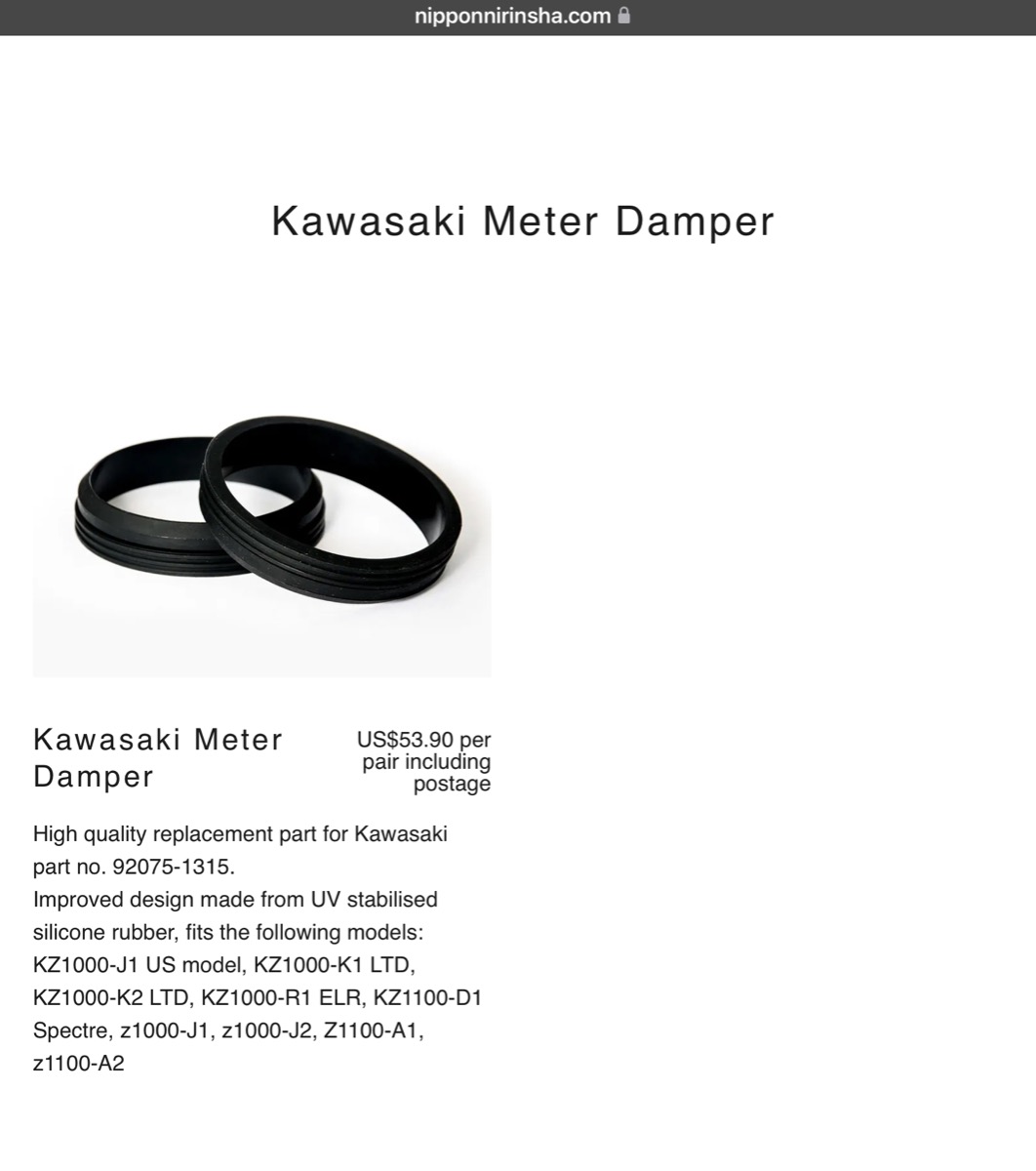

Great, Guys! Thanks. That new  part number, 92075-1315, brings up good info also. Seems there might still be a guy in Australia that makes reproductions. A little pricey though at $53 w/shipping.
1981 KZ1100A
2013 Moto Guzzi Griso
2020 Moto Guzzi V85TT
2021 Husq FE350

Please Log in or Create an account to join the conversation.

81-82 KZ1100A Meter “Damper” 22 Aug 2022 05:21 #872641

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
I could be wrong, but I think the guy in Australia doesn't make them anymore (Nippon Nirishi or something like that).

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

81-82 KZ1100A Meter “Damper” 22 Aug 2022 10:05 #872647

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1007
  • Thank you received: 335
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

81-82 KZ1100A Meter “Damper” 22 Aug 2022 11:47 #872648

  • Gdailey2112
  • Gdailey2112's Avatar
  • Offline
  • User
  • 82 KZ1100D1
  • Posts: 400
  • Thank you received: 34

www.mcmaster.com/door-weatherstripping/


awesome! that link helps with a few other projects as well
thank you
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

81-82 KZ1100A Meter “Damper” 22 Aug 2022 12:33 #872649

  • z1kzonly
  • z1kzonly's Avatar
  • Offline
  • User
  • Sustaining Member
  • Posts: 2861
  • Thank you received: 512
Looks like you could use a vacuum cleaner beater bar belt, i just changed one it was about 1/2" wide x 1/8" thick any type of rubber belt? Or Macgyver Fix!!!
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Please Log in or Create an account to join the conversation.

81-82 KZ1100A Meter “Damper” 22 Aug 2022 15:17 #872655

  • AmStaFF
  • AmStaFF's Avatar Topic Author
  • Offline
  • User
  • Posts: 30
  • Thank you received: 5
The fellow in Australia still sells them,and Sent a PayPal invoice ….

1981 KZ1100A
2013 Moto Guzzi Griso
2020 Moto Guzzi V85TT
2021 Husq FE350
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by AmStaFF.

81-82 KZ1100A Meter “Damper” 23 Aug 2022 03:59 #872672

  • howardhb
  • howardhb's Avatar
  • Offline
  • Sustaining Member
  • In God I trust
  • Posts: 422
  • Thank you received: 416
That part is a perfect candidate for 3D-printing... If I had measurements, I could model it, and be done printing in a few minutes, using a material called TPE (Thermo Plastic Elastomer).
It is pretty cheap @ $15 per pound, so that part will cost no more than 50 cents !
I have successfully printed turn signal vibration isolation "rubbers", tail-light gaskets, seat mounting blocks, float-bowl gaskets, pet-cock seals, air-box snorkel etc.
If you could post measurements here, I will draw it and post the 3D print-model for you, for free!
Just send the file to your nearest 3-D print shop.

H.
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
The following user(s) said Thank You: Mikaw, Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.

81-82 KZ1100A Meter “Damper” 23 Aug 2022 04:54 #872675

  • howardhb
  • howardhb's Avatar
  • Offline
  • Sustaining Member
  • In God I trust
  • Posts: 422
  • Thank you received: 416
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
