KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 11:40 #871925

  • ShaneDude
  • ShaneDude's Avatar Topic Author
  • Offline
  • User is blocked
  • Posts: 247
  • Thank you received: 13
Im about to install a new battery and reg/rec in my 77 KZ750B. Im not happy with the stock position of the reg/rec. There is not a lot of airflow under the massive sidecover.

Any idea on where I might relocate it to?

Please Log in or Create an account to join the conversation.

KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 12:34 #871927

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3926
  • Thank you received: 1899
I would relocate the reg/rec unit under the battery tray.

Please Log in or Create an account to join the conversation.

KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 12:47 #871929

  • ShaneDude
  • ShaneDude's Avatar Topic Author
  • Offline
  • User is blocked
  • Posts: 247
  • Thank you received: 13
Im thinking something more like the triumphs which have them up front. near the forks.

Please Log in or Create an account to join the conversation.

KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 14:13 #871931

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3926
  • Thank you received: 1899
Trust me, you don´t need more air flow on your reg/rec like a ram air system for carbs! Do not made any rocket science here!!!
Your alternator power out put is less than a half of a modern bike!

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 15:16 #871934

  • hugo
  • hugo's Avatar
  • Offline
  • Sustaining Member
  • '92 Zephyr 750
  • Posts: 276
  • Thank you received: 65

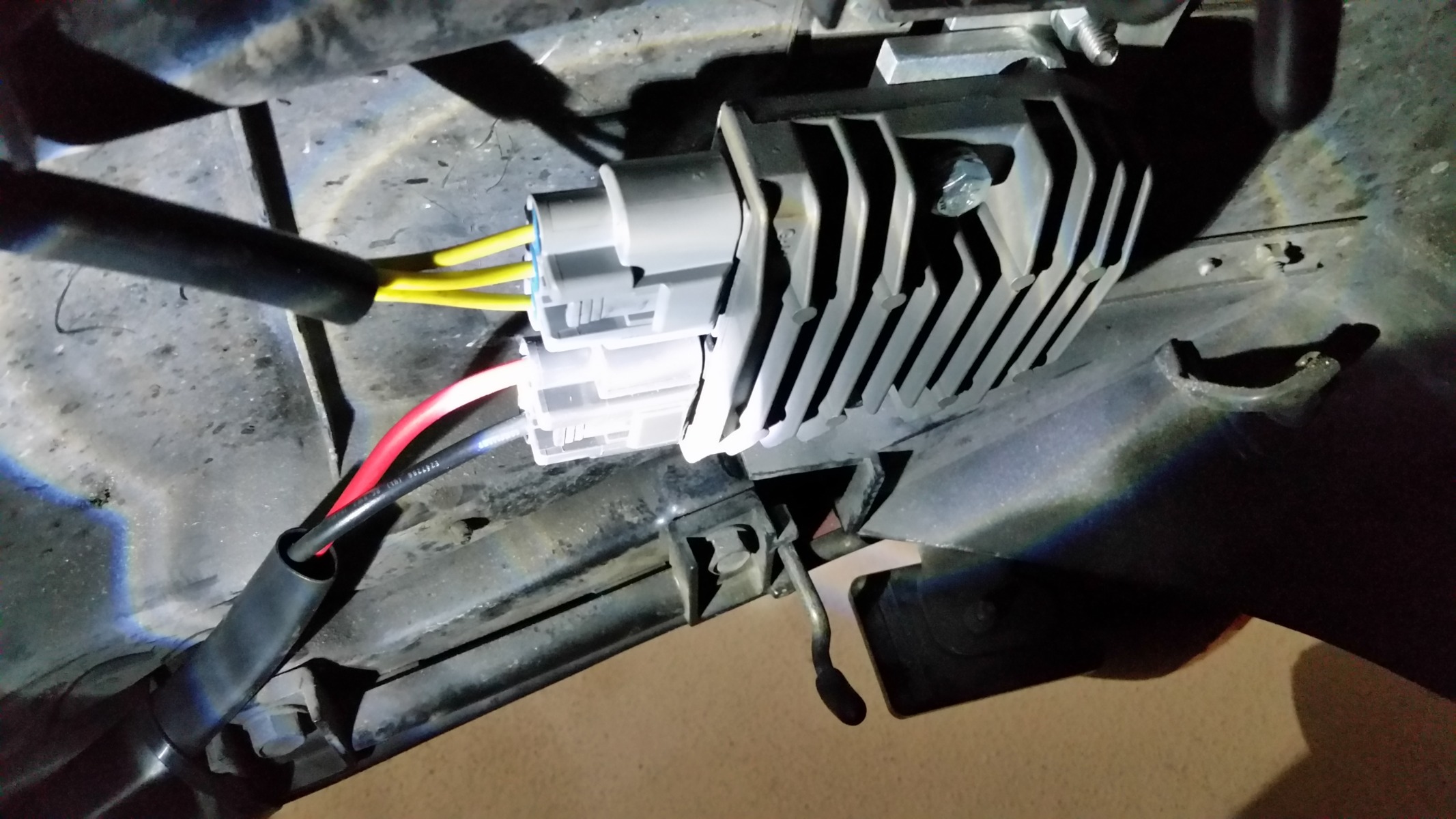

If you are so determined....,,,.and am only mentioned what I did as an idea.  .......I installed a SH775 under the rear fender, but this was a 750-4, not a twin.     I do know where to get,...and how to make,,, 'factory' electrical connectors.         The SH775 was much bigger than stock....and got the idea from a Yamaha FZ-09 which also have it under the fender.

Attachments:
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

Last edit: by hugo.

KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 15:54 #871937

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3191
  • Thank you received: 1786
If your new RR is a MOSFET ( transistorised unit) then they run much cooler than the old diode units and cooling is less of an issue. Just make sure wherever you put it that it is bolted to a heat sink and you should be fine

Please Log in or Create an account to join the conversation.

KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 17:43 #871944

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7285
  • Thank you received: 2675
Correct me if I'm wrong, but doesn't the '77 750 Twin use a field coil in it's charging system?  Assuming yes, doesn't it use a special R/R (or separate regulator and rectifier?)

Please Log in or Create an account to join the conversation.

KZ750 Twin Regulator/Rectifier relocation 09 Aug 2022 18:36 #871946

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3926
  • Thank you received: 1899
As allways, a picture of the charging system would be very helpful to clarify the charging inviroment.

Please Log in or Create an account to join the conversation.

KZ750 Twin Regulator/Rectifier relocation 10 Aug 2022 07:02 #871969

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7216
  • Thank you received: 2067
The parts diagram at Partzilla shows two charging systems for the 1977 750 B2. I guess a change was made during that model run. If so, identifying which system is on the bike in question seems paramount to resolving the issue.

www.partzilla.com/catalog/kawasaki/motor...erator-starter-motor

One system has a unified RR, while the other uses separate components.

www.partzilla.com/catalog/kawasaki/motor...-regulator-rectifier
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

KZ750 Twin Regulator/Rectifier relocation 10 Aug 2022 09:27 #871979

  • ShaneDude
  • ShaneDude's Avatar Topic Author
  • Offline
  • User is blocked
  • Posts: 247
  • Thank you received: 13
i instaaled it today. didnt need the hassle and decided not to relocate it.
