multimeter rather than test lamp?

  • katit
  • katit's Avatar
  • Offline
  • User
  • Posts: 460
  • Thanks: 47

Re: multimeter rather than test lamp?

13 Jun 2022 12:54
#868726
I've been using Mutlimeter, but just recently got test light. For some tasks I just find it more convenient. Last 2 things I did with it:
a. Watched oil pressure switch close circuit (before starting engine hand to pump oil)
b. Set static timing points on BMW airhead.

Both can be done with multimeter, but I prefer to see analog light on/off in those scenarios.
78 KZ650B2A - resto in progress
www.kzrider.com/forum/11-projects/615161...s-1978-kz650-project
Other bikes: 1978 BMW R100/7, 1978 Moto Guzzi T3, 2016 DRZ400s

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4290
  • Thanks: 2137

Re: multimeter rather than test lamp?

13 Jun 2022 15:02
#868728
Both, a test lamp and multimeter did the same job to hunt for a voltage drop but an multimeter gives you more accuracy in some special cases like amps, ohms and voltage readings.
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Gdailey2112's Avatar Topic Author
  • Offline
  • User
  • 82 KZ1100D1
  • Posts: 394
  • Thanks: 34

Re: multimeter rather than test lamp?

13 Jun 2022 20:32
#868743
anyone know where to get a new starter solenoid? has mounting bracket spot welded to the solenoid
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Gdailey2112's Avatar Topic Author
  • Offline
  • User
  • 82 KZ1100D1
  • Posts: 394
  • Thanks: 34

Re: multimeter rather than test lamp?

13 Jun 2022 20:38
#868744
crap   now i noticed that the speedometer odometer fuel lights aren't working
so I do suspect ground or lack there of
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2996
  • Thanks: 1094

Re: multimeter rather than test lamp?

14 Jun 2022 04:53
#868756
From your original post I inferred that you wanted to use the Dyna test light procedure to check your timing.  I'm going on memory, but I think they request that the advance mechanism be turned fully clockwise, and that the light should turn on at that point, but not earlier.  The light us connected to the positive side of the coil and to the battery ground.  This allows current to flow when the advance mechanism is properly installed.  So instead of using a light, simply connect your multi meter to the same points.  I think that will work.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Gdailey2112's Avatar Topic Author
  • Offline
  • User
  • 82 KZ1100D1
  • Posts: 394
  • Thanks: 34

Re: multimeter rather than test lamp?

14 Jun 2022 17:46
#868807
wrote:
From your original post I inferred that you wanted to use the Dyna test light procedure to check your timing.  I'm going on memory, but I think they request that the advance mechanism be turned fully clockwise, and that the light should turn on at that point, but not earlier.  The light us connected to the positive side of the coil and to the battery ground.  This allows current to flow when the advance mechanism is properly installed.  So instead of using a light, simply connect your multi meter to the same points.  I think that will work.



i'd thought that with a test light one lead went to neg and other on green or black wires but with multimeter i was told one lead to positive and other to green or black.
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Gdailey2112's Avatar Topic Author
  • Offline
  • User
  • 82 KZ1100D1
  • Posts: 394
  • Thanks: 34

Re: multimeter rather than test lamp?

14 Jun 2022 18:06
#868809
curious where is the ground for the gauge lights located? plz n thx
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4290
  • Thanks: 2137

Re: multimeter rather than test lamp?

14 Jun 2022 18:36
#868810
Ground or negativ is the black/yellow wire. It´s the same colour code on all Kawasaki bikes as always and connected to the bulb socket or gauge metal housing.
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: multimeter rather than test lamp?

14 Jun 2022 18:37 - 14 Jun 2022 19:36
#868811








The meter or test light connect to the black and ground for timing 1-4. Then to the green and ground for 2-3 timing. Either will work. Test light will start to glow, or the meter will start to show voltage.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 14 Jun 2022 19:36 by Mikaw.
The following user(s) said Thank You: Gdailey2112

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2996
  • Thanks: 1094

Re: multimeter rather than test lamp?

14 Jun 2022 20:17
#868815

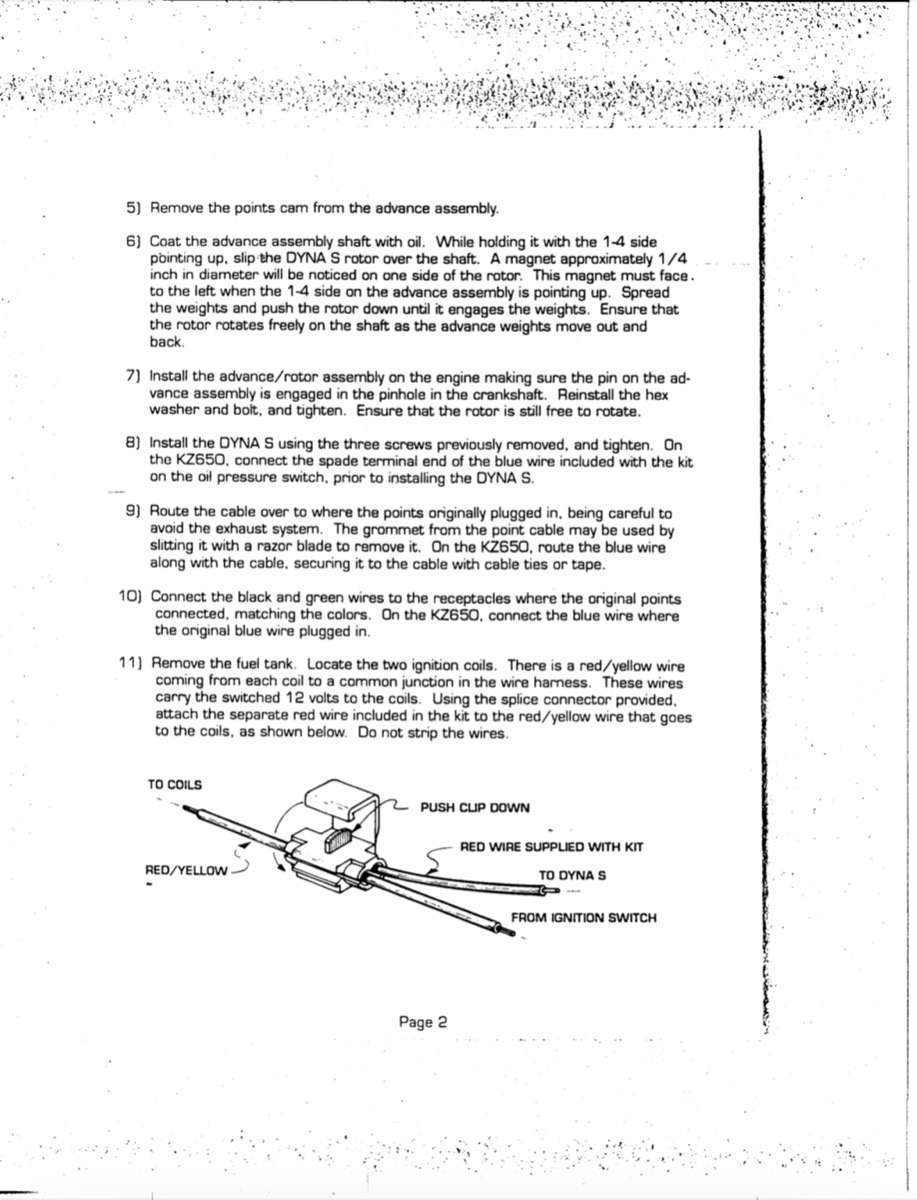

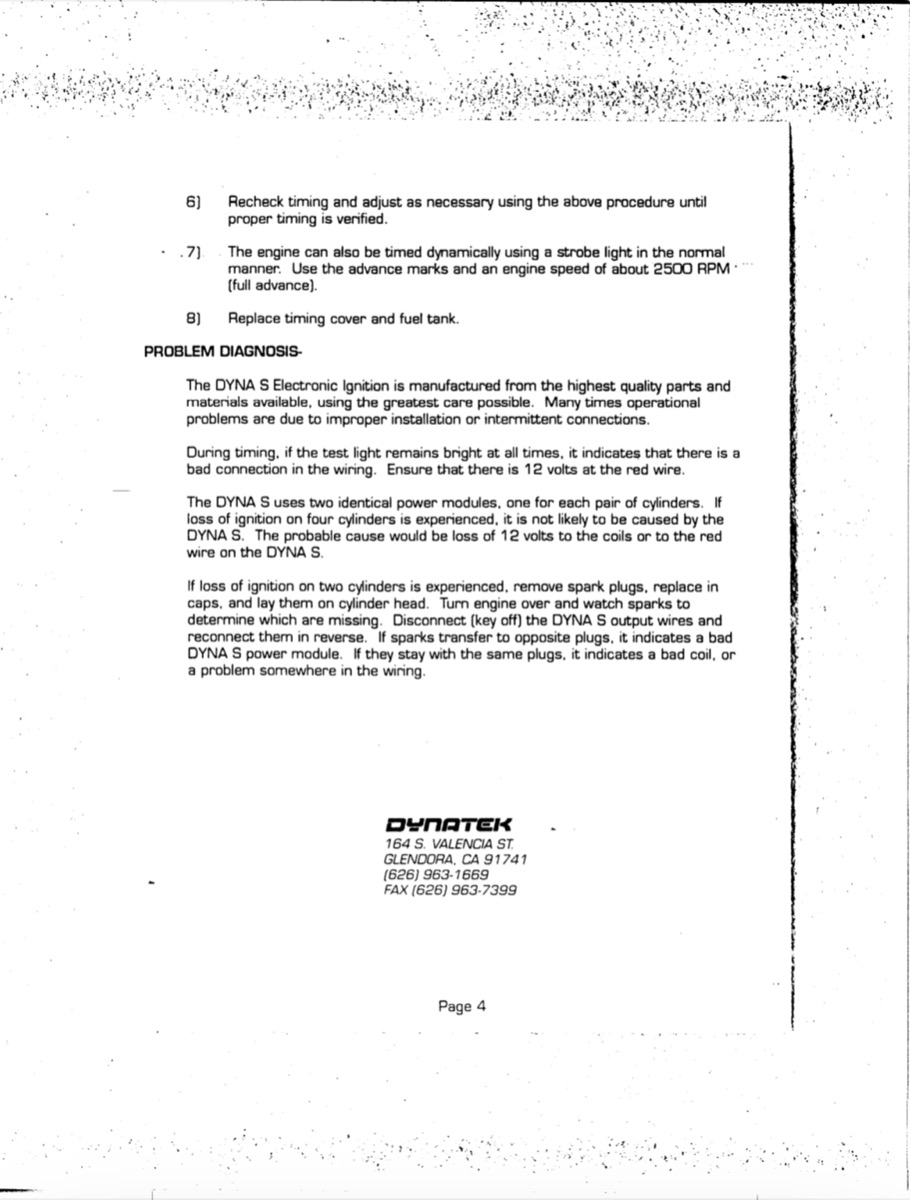

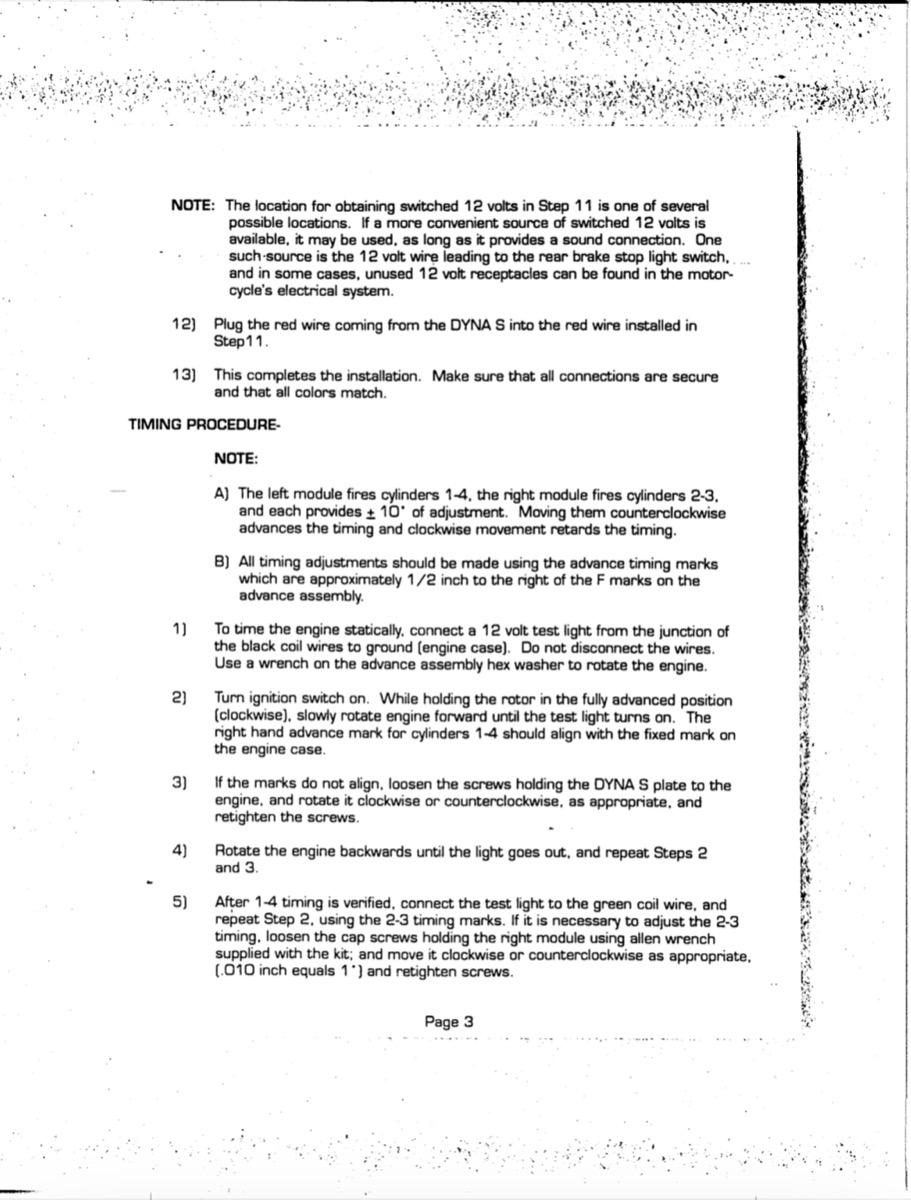

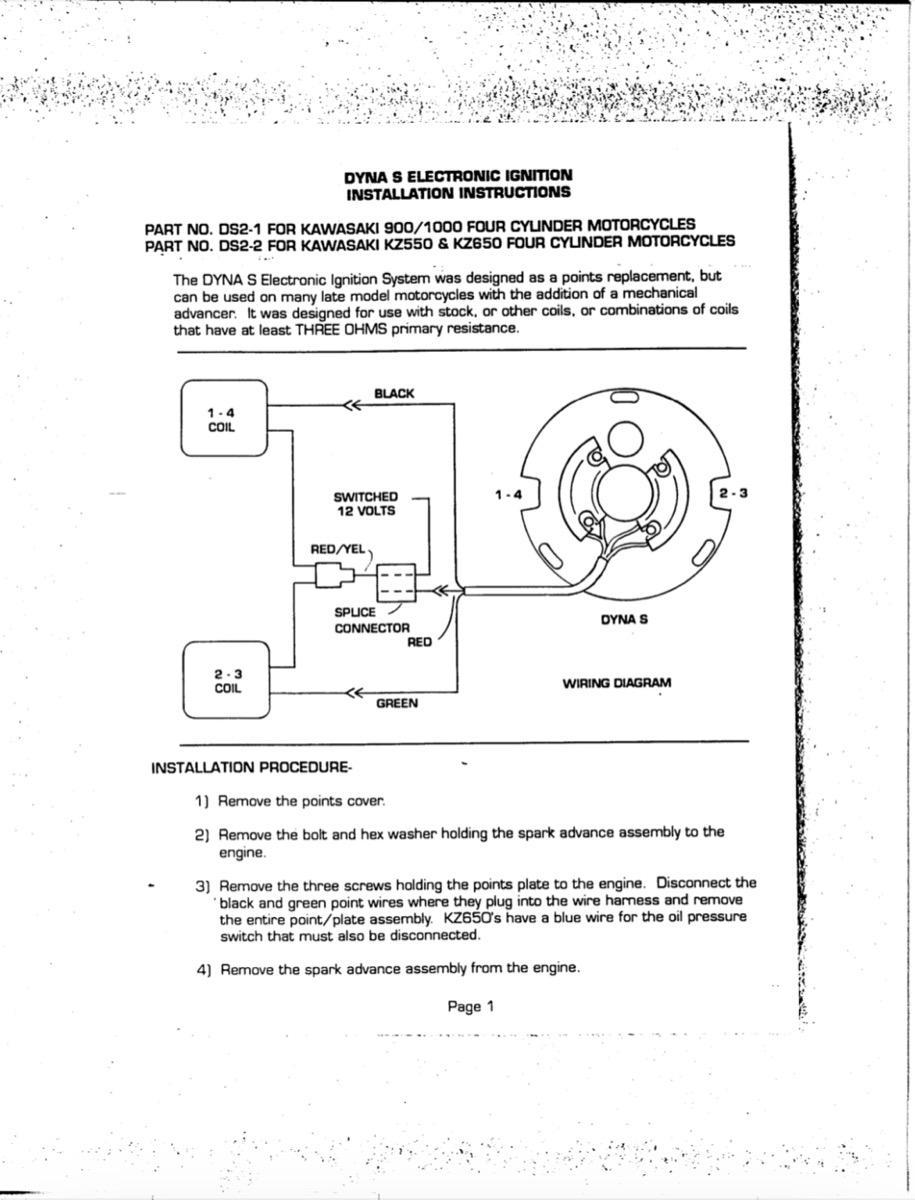

I was going on memory, but thanks to Mikaw you can see in the static timing instructions (Item 1) how to correctly attach a test light.  They say to attach one lead to engine ground.  I find it easier to go to the other end of the engine ground wire, which is the negative battery terminal.  I also don't like that attachment Dyna provides to clip into the red wire.  I've had issues with that so I use bullet connectors.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Gdailey2112's Avatar Topic Author
  • Offline
  • User
  • 82 KZ1100D1
  • Posts: 394
  • Thanks: 34

Re: multimeter rather than test lamp?

15 Jun 2022 14:23
#868846
thanx everyone and disregard the solenoid question found on evil bay

per wiregeorges relay does that leave power to coils even when key off?
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 4482
  • Thanks: 2626

Re: multimeter rather than test lamp?

15 Jun 2022 15:21
#868851
No, the relay should be turned on and off by the original coil feed from the kill switch
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: Gdailey2112
