weak spark 13 Apr 2022 02:46 #865329

  • Andyp62
  • Andyp62's Avatar Topic Author
  • Offline
  • User
  • Posts: 60
  • Thank you received: 3
Yes my meter has resistance setting I will check it
thanks
1978 Z650 B2, US import to the UK

Please Log in or Create an account to join the conversation.

weak spark 13 Apr 2022 02:49 #865330

  • Andyp62
  • Andyp62's Avatar Topic Author
  • Offline
  • User
  • Posts: 60
  • Thank you received: 3
Thank you
1978 Z650 B2, US import to the UK

Please Log in or Create an account to join the conversation.

weak spark 29 Apr 2022 01:52 #866339

  • Andyp62
  • Andyp62's Avatar Topic Author
  • Offline
  • User
  • Posts: 60
  • Thank you received: 3
I will try the relay, i see different amp relays available, any idea what amp i would require?
thanks

1978 Z650 B2, US import to the UK

Please Log in or Create an account to join the conversation.

weak spark 29 Apr 2022 01:57 #866340

  • Andyp62
  • Andyp62's Avatar Topic Author
  • Offline
  • User
  • Posts: 60
  • Thank you received: 3
I have bought coils from Z power, i am not sure what the resistance is but they said they would be compatible with the bb system
1978 Z650 B2, US import to the UK

Please Log in or Create an account to join the conversation.

weak spark 29 Apr 2022 02:07 #866341

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720

I will try the relay, i see different amp relays available, any idea what amp i would require?
thanks



Hi Andy, if you have 4 ohm coils they will draw approx 3amps each, since at times both coils are powered simultaneously you would need to double that to 6amps. You then need to allow for that figure changing due to voltage variations so I would suggest a relay rated at 10amps or above
If they are 2ohm coils (unlikely) the current draw would be 6amps each so you would be best to use a relay rated at 20amps or above. (Using a slightly heavier relay has no detrimental effect)

Please Log in or Create an account to join the conversation.

Last edit: by Wookie58.

weak spark 29 Apr 2022 02:20 #866342

  • Andyp62
  • Andyp62's Avatar Topic Author
  • Offline
  • User
  • Posts: 60
  • Thank you received: 3
thanks for the message, in the wiredgeorge relay mod if you have seen it, does the wire 12v feed to the ignition trigger unit just come off the same terminal as the feed to the coils?
1978 Z650 B2, US import to the UK

Please Log in or Create an account to join the conversation.

weak spark 29 Apr 2022 02:32 #866343

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

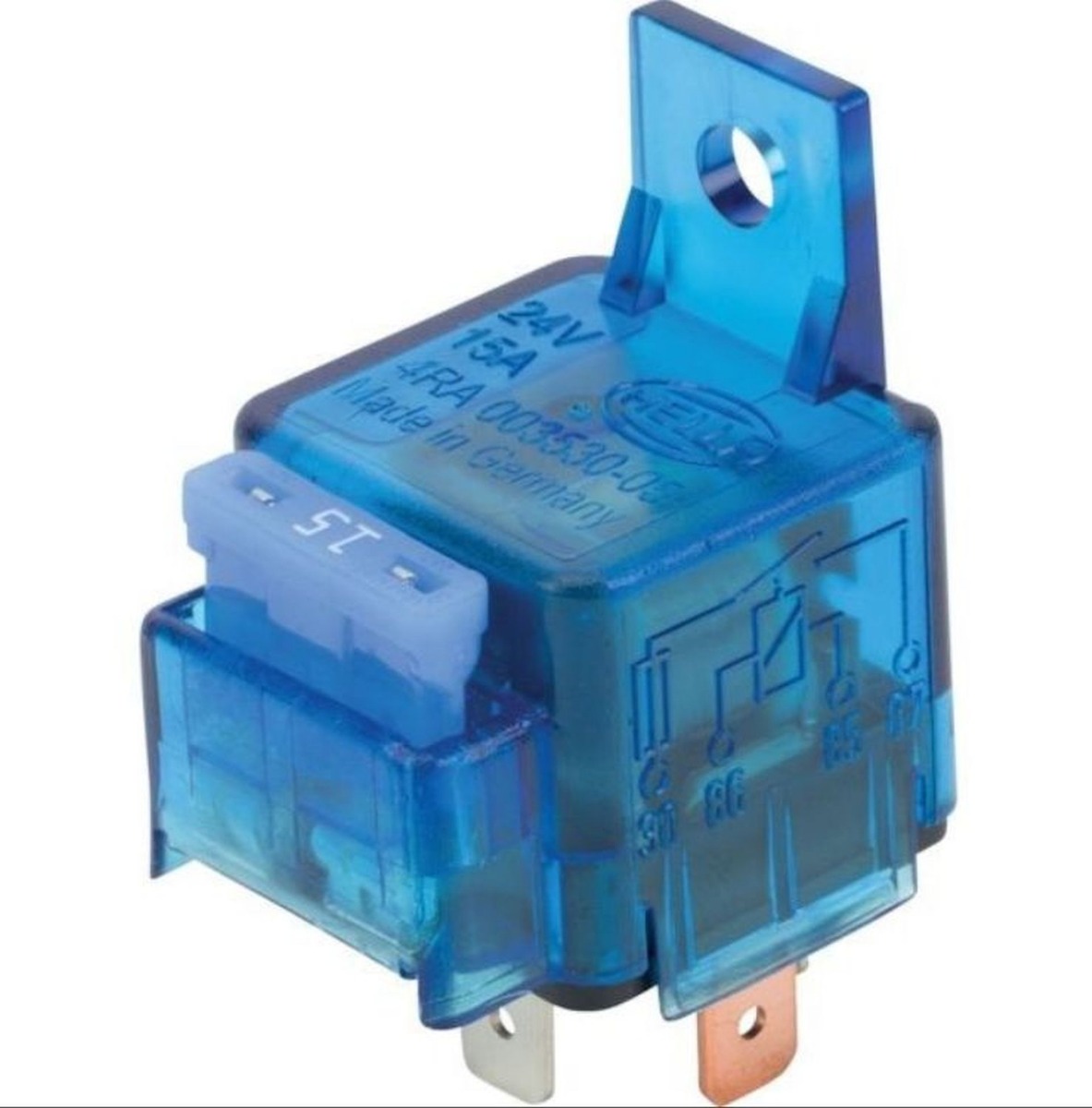

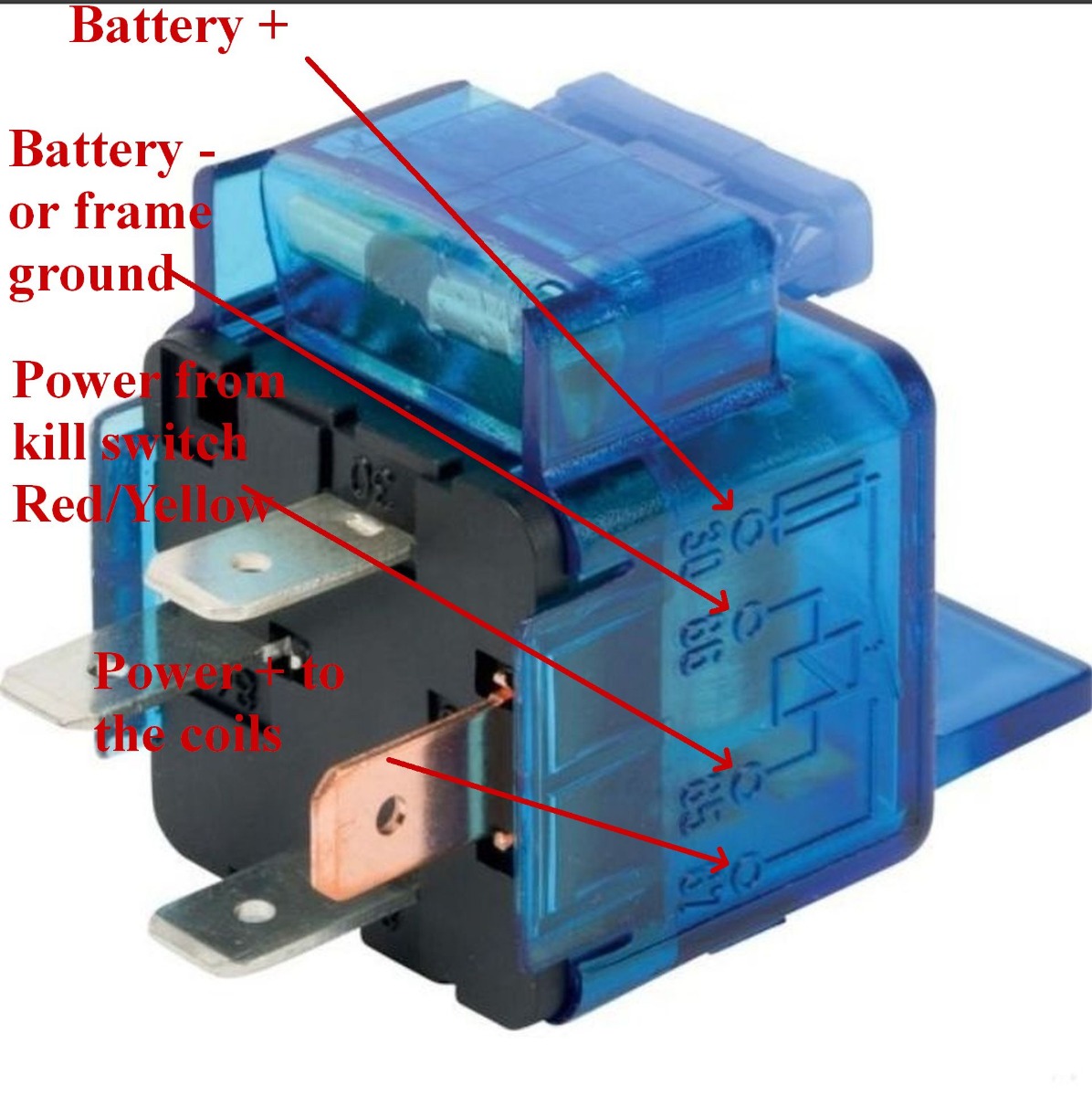

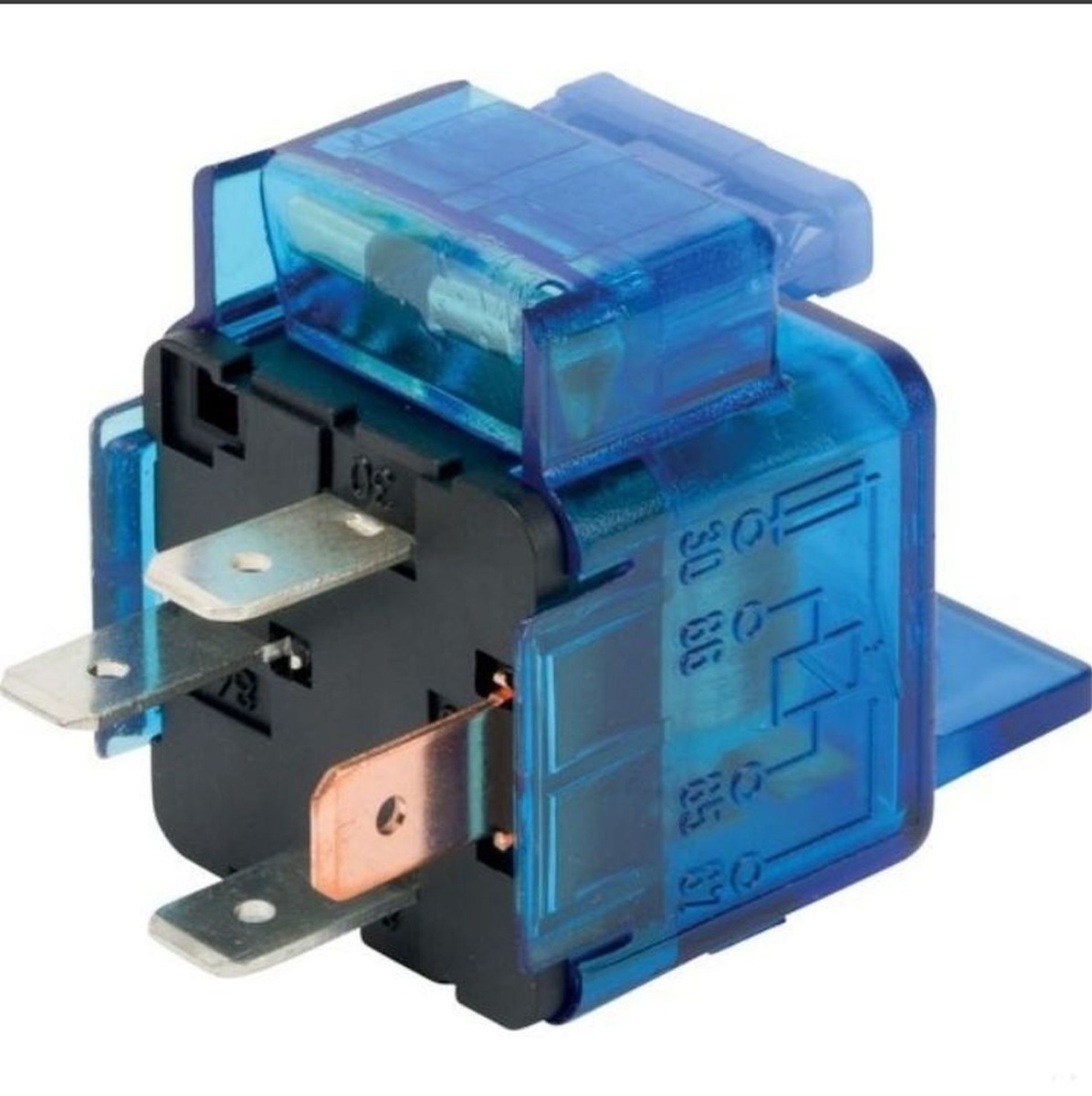

The relay i use for the wiredgeorge mod.




Attachments:
The following user(s) said Thank You: Andyp62

Please Log in or Create an account to join the conversation.

weak spark 29 Apr 2022 02:38 #866344

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648
The diagram I posted earlier in this thread shows where you make connections.

Z1000J2 somewhat modified!

The following user(s) said Thank You: Andyp62

Please Log in or Create an account to join the conversation.

weak spark 29 Apr 2022 02:58 #866345

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720

thanks for the message, in the wiredgeorge relay mod if you have seen it, does the wire 12v feed to the ignition trigger unit just come off the same terminal as the feed to the coils?
Ref the live feed for your "BB" ignition trigger, yes I would also take this from the output side of the relay (new coil feed) to ensure best possible performance
The following user(s) said Thank You: Andyp62
