 Hello, I am restoring a Kawasaki KZ650B from 1977 and I would need to find the left commutator and the right commutator, I think the original Kawasaki references; right  46091-1031 and left 46091-056.
Could you help me? I would like them to be originals and not reproductions, I don't care if they are new or second hand.
Thanks in advance for your help.

Commutator ?  Ed

wrote:

Commutator ?  Ed

Switch blocks / hand controls

Partzilla shows different part numbers.

www.partzilla.com/catalog/kawasaki/motor...7/kz650-b1/handlebar

wrote:

Partzilla shows different part numbers.

www.partzilla.com/catalog/kawasaki/motor...7/kz650-b1/handlebar

I just googles his number with "Kawasaki part" before it, hand controls showed up everywhere.

Yes, sorry I was referring to this command, in Spain we call it the light switch, according to the website where I look for the original Kawasaki reference it varies, here in partzilla it is this and I think it is the correct one 46091-1047.
I have looked for original or second hand and I can't find it, they are all reproductions.
Have you used any reproduction of this switch, or have you restored the same ones that your motorcycle has?

I have the left handlebar switch from a 1979 kz650b3. I replaced it because it was a problem. If you are going to rebuild it and just want the original case, then you can have this one for freight costs.
Joe

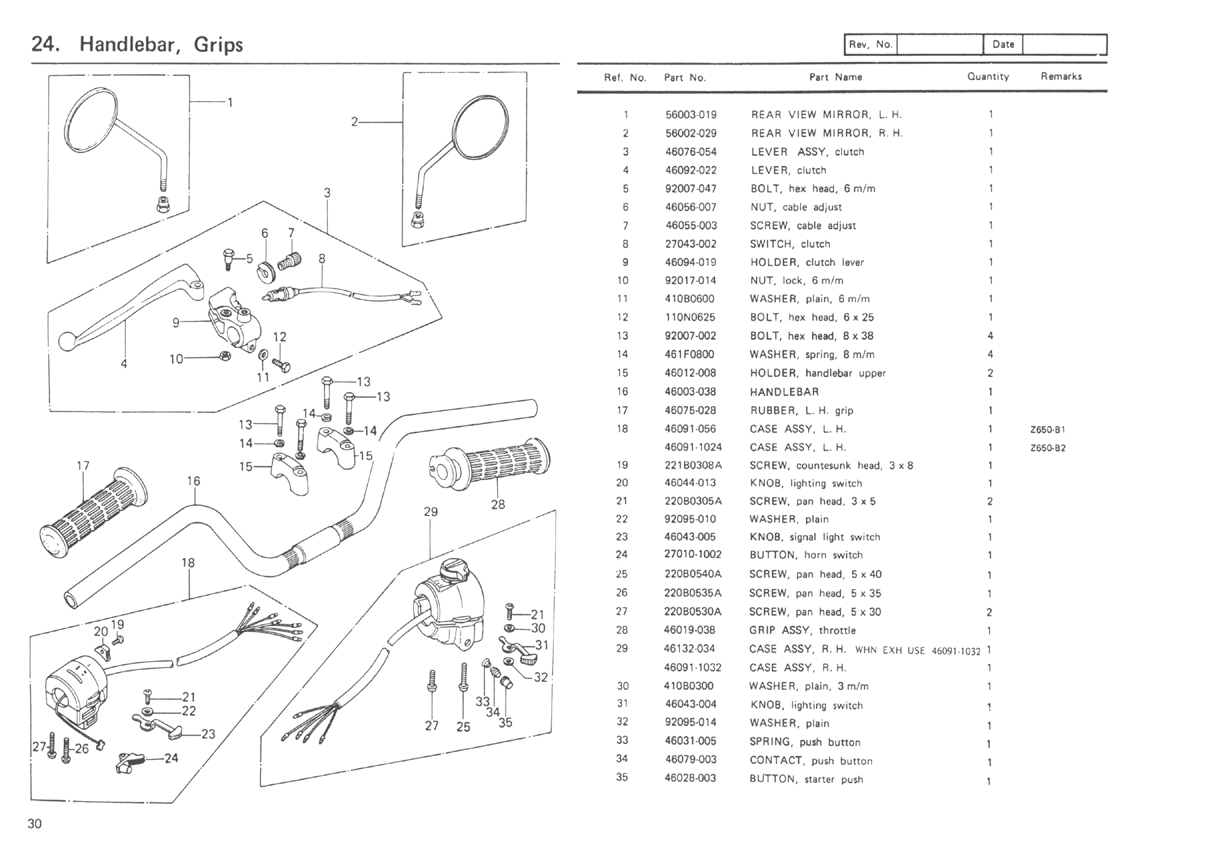

The attached parts lists for the B1 and B2 models shows the part # as follows:

Left Hand side as 46091-056 for the B1
Left Hand side as 46091-1029 for the B2

Right Hand side as 46132-034 to use this part till gone replace with
Right Hand side as 46091-1032
