J2 ignition lock source? 05 Apr 2022 05:37 #864937

  • Warren3200gt
  • Warren3200gt's Avatar Topic Author
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648
As title guys, it's not available for J1 & 2 any longer from khi. J3 repop is available from zpower but is totally different in both wire colours, mount and barrel length as the clock set for a j3 is different to a J1 & 2.
J1 & 2 is a 6 wire block with a seventh female spur.Anyone resolved this issue, if so how? or source of a repop or have a sh unit available for beer tokens?

Z1 Enterprises list the below as fitting J1, 2 & 3 but I know that must be incorrect as J3 is definately different at that list has J3 wire colour order.
www.z1enterprises.com/ignition-switch-w-...-J2%20J%20MODEL/1982
​​​​

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

Last edit: by Warren3200gt.

J2 ignition lock source? 05 Apr 2022 06:16 #864938

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
Just to be sure, is your ignition switch part #27005-5019 with the slender key cylinder? I've seen this problem before w the narrow neck: one fix was to get a similar ignition switch from a later model, such as a Vulcan 750, but I don't recall exactly. need to do some checking.

www.partzilla.com/catalog/kawasaki/motor...tch-locks-reflectors


The following user(s) said Thank You: Warren3200gt

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

J2 ignition lock source? 05 Apr 2022 06:21 #864939

  • Warren3200gt
  • Warren3200gt's Avatar Topic Author
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648

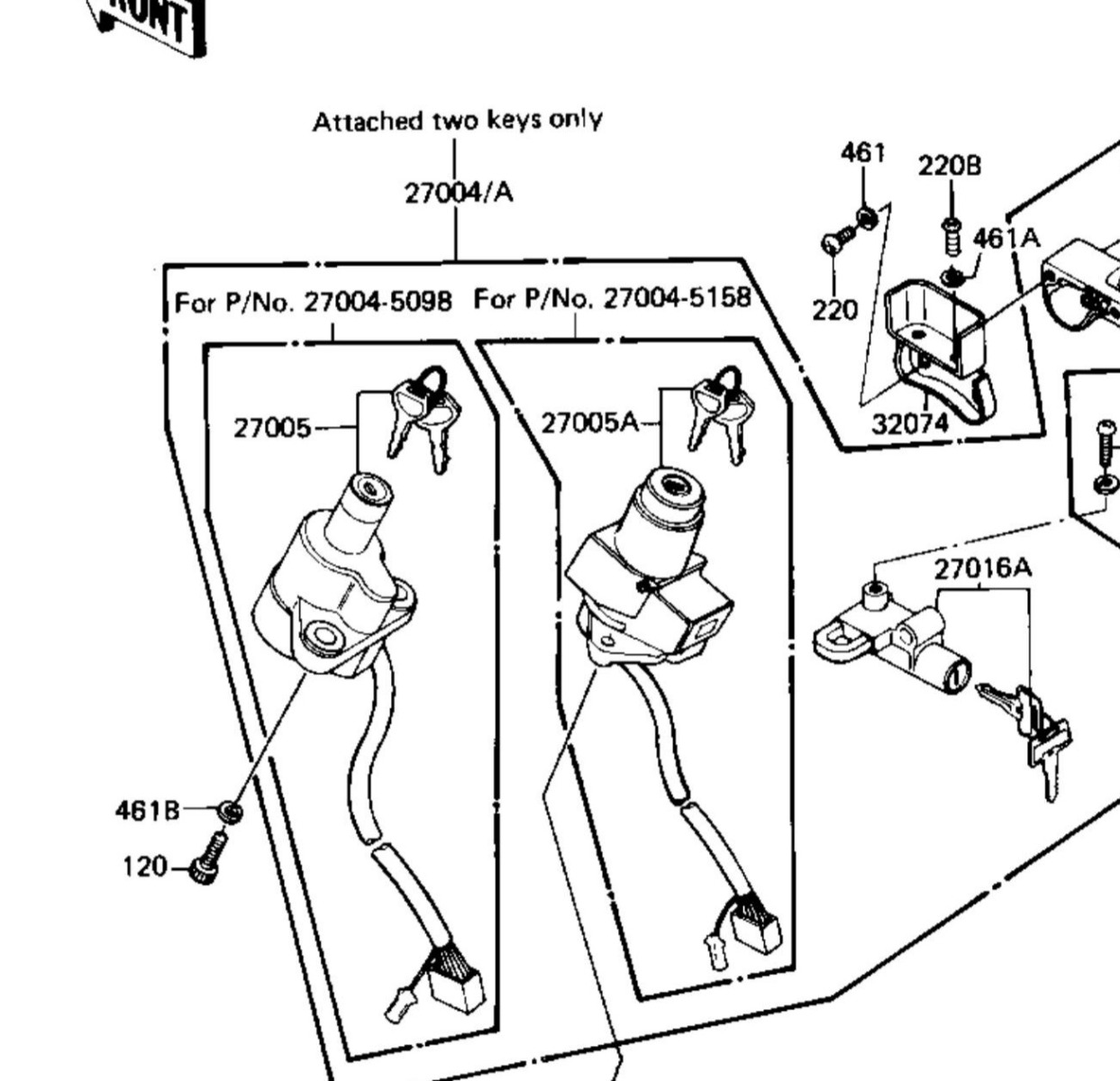

Not exactly sure tbh Martin. I bought the bike in boxes and it was all present except........ the ignition barrel. As far as I have been able to workout it needs the one on the left below.


Z1000J2 somewhat modified!

Attachments:

Please Log in or Create an account to join the conversation.

J2 ignition lock source? 05 Apr 2022 06:28 #864940

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
The one on the left is #27005-5019, as mentioned above.

Here's a topic about the narrow cylinder. There's another topic I recall but haven't found it yet.
www.kawasakimotorcycle.org/threads/ignit...ompatability.185746/
The following user(s) said Thank You: Warren3200gt

Please Log in or Create an account to join the conversation.

J2 ignition lock source? 05 Apr 2022 06:44 #864941

  • Warren3200gt
  • Warren3200gt's Avatar Topic Author
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648
I think your right Martin. Looking at the underside of the top yolk there is a half circle recess to match the lock. Plus the two bolt holes.
The J2 lock required is a 6 wire block plus a separate single bullit spur.
Wire colour layout is
Orange/green - brown - orange

White/black - red - white

Seperate spur is red/yellow.

It's unlikely another model switch would be an exact fit/wire layout so will have to get busy with a multimeter once I find one which will physically fit with the correct amount of wires.

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

J2 ignition lock source? 05 Apr 2022 07:08 #864943

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
The Emgo catalog has wire/pin info on some of their ignition switches. see catalog starting on pg 305.
emgowebsite.04833d7.netsolhost.com/wp-co...eneral_IN-2967-1.pdf

Partial list of similar ignition switches w the slender lock cylinder. not all years listed. a couple of OEM or aftermarket may be available.
1981-82 KZ1000-J1/J2 = 27005-5019
1984 ZN700/1100 = 27005-5040
1986 EN450 = 27005-5044
1986 VN750 = 27005-5052 >> this is the ignition switch that was used on a KZ1000-K Ltd.
1986-87 ZL600/900/1000 = 27005-5045
1986-87 ZN1300 Voyager = 27005-5034

Edit Vulcan 750 w photo:    www.partzilla.com/product/kawasaki/27005...b74e203821080f95ac3f
The following user(s) said Thank You: Warren3200gt

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

J2 ignition lock source? 05 Apr 2022 07:52 #864946

  • Warren3200gt
  • Warren3200gt's Avatar Topic Author
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648
Hmmmm, seems to be 7 wire quantity is the stumbling block.
They all seem to be 5 wire or 6 at most.

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

J2 ignition lock source? 05 Apr 2022 12:25 #864970

  • Warren3200gt
  • Warren3200gt's Avatar Topic Author
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648
I think I have tracked down the original thread you mentioned below Martin. Looks to be the solution I was after, thanks.
Just got to find one at a good price this side of the pond now.

www.kzrider.com/forum/4-electrical/61386...n-1981-82-kz1000-ltd

Z1000J2 somewhat modified!

The following user(s) said Thank You: martin_csr

Please Log in or Create an account to join the conversation.

J2 ignition lock source? 05 Apr 2022 16:13 #864999

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
Thanks.  Yes, that's it.  I thought it was on the other forum & never looked here on KZR. doh.  There may be an Emgo available.

Edit: you might be able to find a good used VN750 part.  27005-5052 was used until at least 2006.
