Motogadget m-Unit Blue 31 Aug 2021 03:55 #854629

  • letthegoodtimesroll
  • letthegoodtimesroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 161
  • Thank you received: 1
Over the winter I am redoing the electrical system on my '77 650 and will be installing the Motogadget m-Unit Blue and M-button. Has anyone done this and if so do they have a write up on it and a description of the new wiring harness? Thanks for any and all input.
1977 KZ650C1, Kerker Header, Dyna ignition and coils, GPZ 750 oil pan and cooler

Please Log in or Create an account to join the conversation.

Motogadget m-Unit Blue 31 Aug 2021 06:43 #854641

  • Move0ver
  • Move0ver's Avatar
  • Offline
  • User
  • Posts: 253
  • Thank you received: 56
I've used the basic, so close enough.

It's actually a pretty slick unit.
I HIGHLY recommend getting a ferrule crimper and using the proper ferrules:








The biggest thing is that the wiring is different than you're used to...  The switch has a single signal wire that goes to the unit, and the unit has a power wire that goes to the light (vs the power going through the switch to the light).
The following user(s) said Thank You: letthegoodtimesroll

Please Log in or Create an account to join the conversation.

Motogadget m-Unit Blue 31 Aug 2021 06:49 #854642

  • Move0ver
  • Move0ver's Avatar
  • Offline
  • User
  • Posts: 253
  • Thank you received: 56

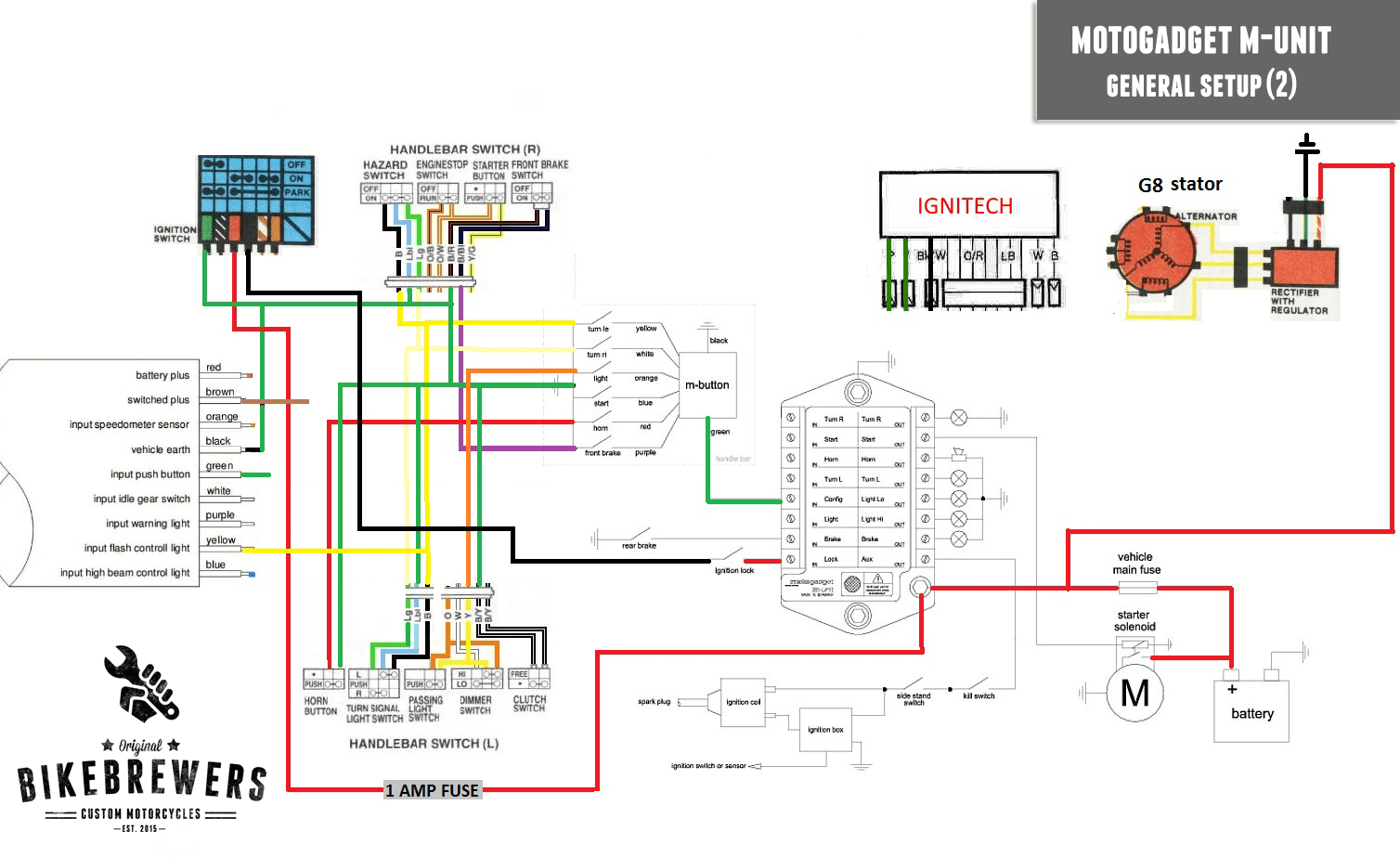

Here's the wiring diagram I made for my GS750E.  I think the diagram has a mistake in the high/low beam switch... I fixed it on the bike but never updated the diagram (I think the low beam shouldn't switch to ground?  It's been a long time since I looked at it).

The following user(s) said Thank You: letthegoodtimesroll

Please Log in or Create an account to join the conversation.

Last edit: by Move0ver.

Motogadget m-Unit Blue 31 Aug 2021 08:35 #854646

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1006
  • Thank you received: 335
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

Motogadget m-Unit Blue 31 Aug 2021 08:37 #854647

  • Move0ver
  • Move0ver's Avatar
  • Offline
  • User
  • Posts: 253
  • Thank you received: 56
agreed, revival has a really good guide on it.

Please Log in or Create an account to join the conversation.

Motogadget m-Unit Blue 31 Aug 2021 08:48 #854648

  • letthegoodtimesroll
  • letthegoodtimesroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 161
  • Thank you received: 1
I've watched a number of Youtube videos including the Revival ones but none seem to explain where the voltage regulator and rectifier go. I was hoping to be spoon fed with this. Lol! Thanks for your help guys. I will be handing this bike down to my son and I am just trying to modernize it.
1977 KZ650C1, Kerker Header, Dyna ignition and coils, GPZ 750 oil pan and cooler

Please Log in or Create an account to join the conversation.

Motogadget m-Unit Blue 31 Aug 2021 08:54 #854649

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1006
  • Thank you received: 335
The voltage regulator/rectifier aren't really part of the m-unit circuit.
On my bike they exist by themselves with the battery and the stator.

What other specific things are you wondering about concerning the M-unit?
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

Last edit: by F64.

Motogadget m-Unit Blue 31 Aug 2021 08:59 #854651

  • Move0ver
  • Move0ver's Avatar
  • Offline
  • User
  • Posts: 253
  • Thank you received: 56
R/R on my wiring diagram is the regulator/rectifier.  The stator feeds into that, which feeds into the harness.

generally, if you can, you'll want to upgrade the RR while you're in there

Please Log in or Create an account to join the conversation.

Motogadget m-Unit Blue 03 Sep 2021 05:29 #854765

  • letthegoodtimesroll
  • letthegoodtimesroll's Avatar Topic Author
  • Offline
  • User
  • Posts: 161
  • Thank you received: 1

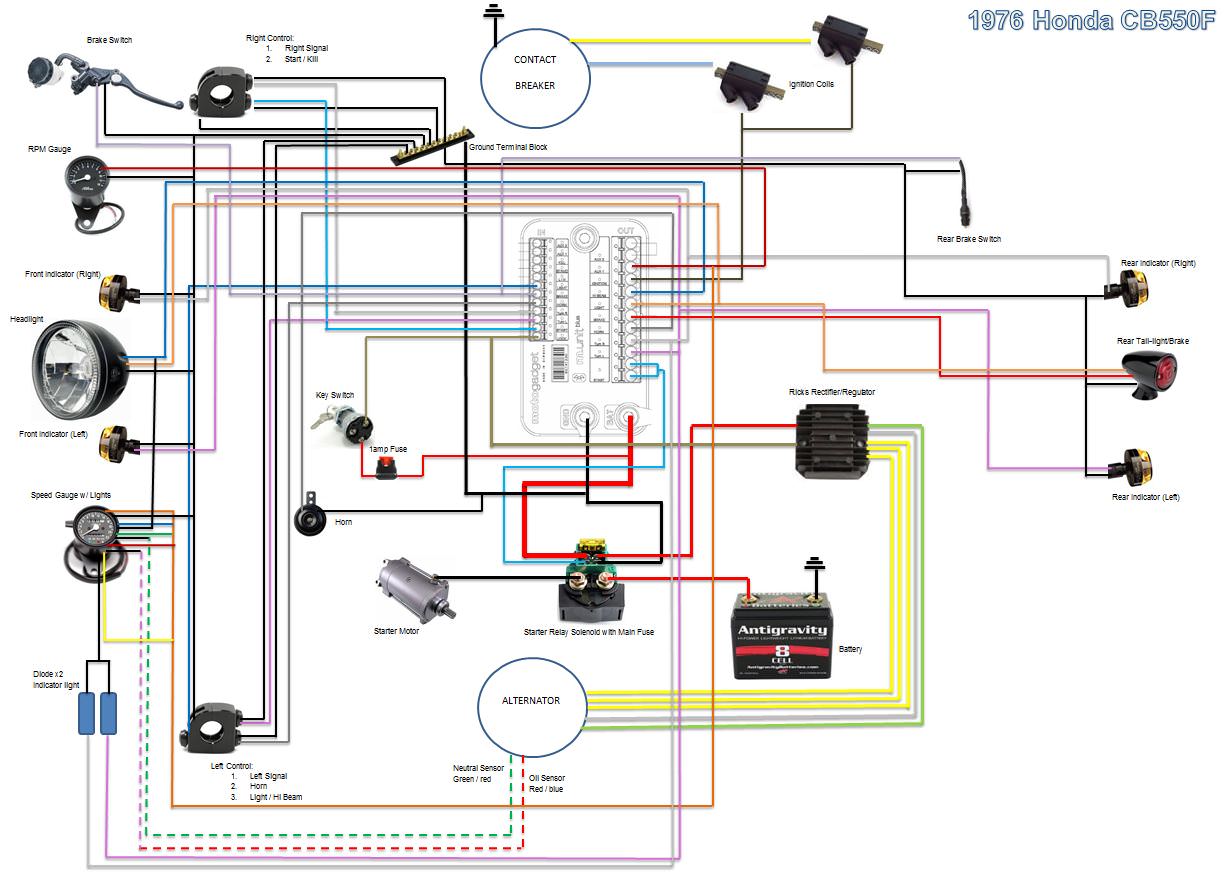

I've actually found some pretty good diagrams online and hoping that this will go smoothly. I will also try and document the process in order to assist anyone looking to do this in the future.
