KZ900 right hand controls 19 Jul 2021 03:41 #851998

  • motoaddict
  • motoaddict's Avatar Topic Author
  • Offline
  • User
  • Posts: 32
  • Thank you received: 8

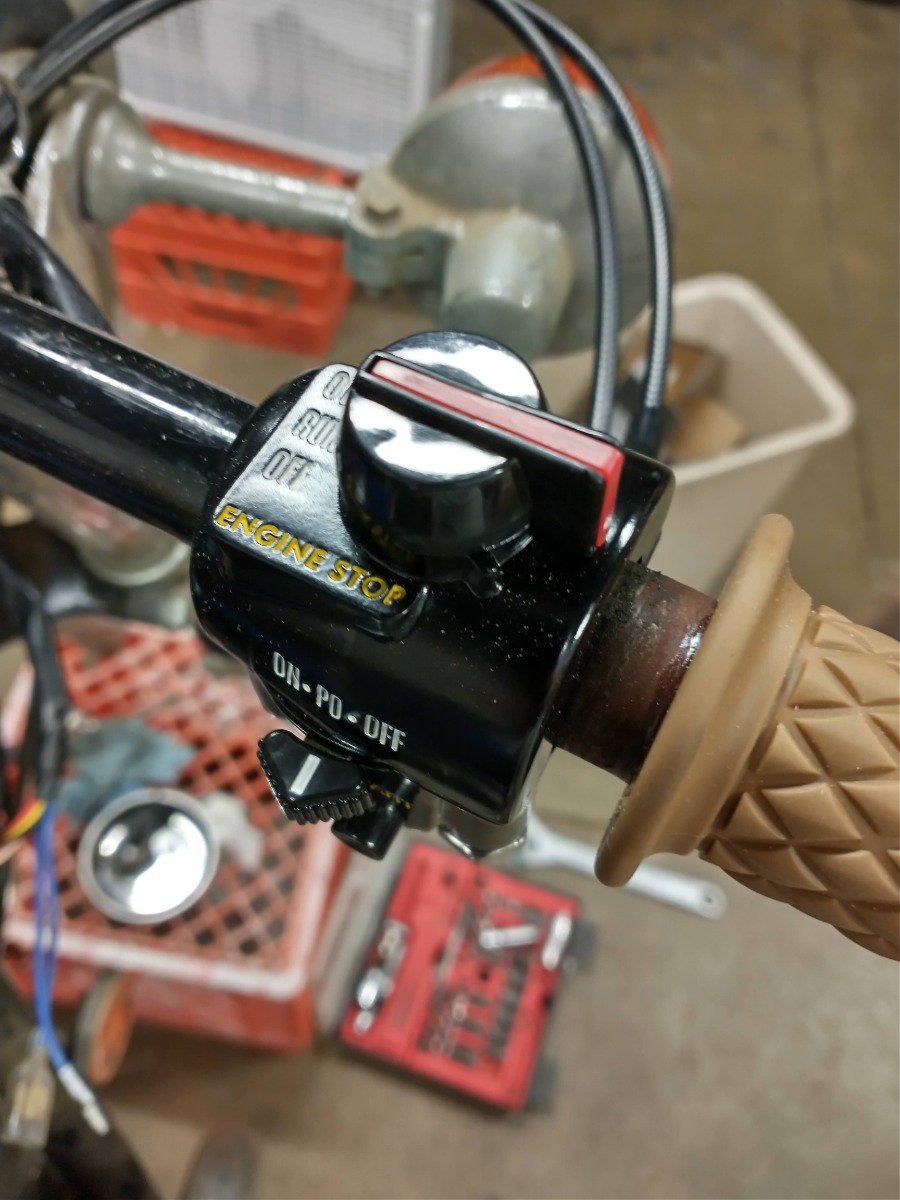

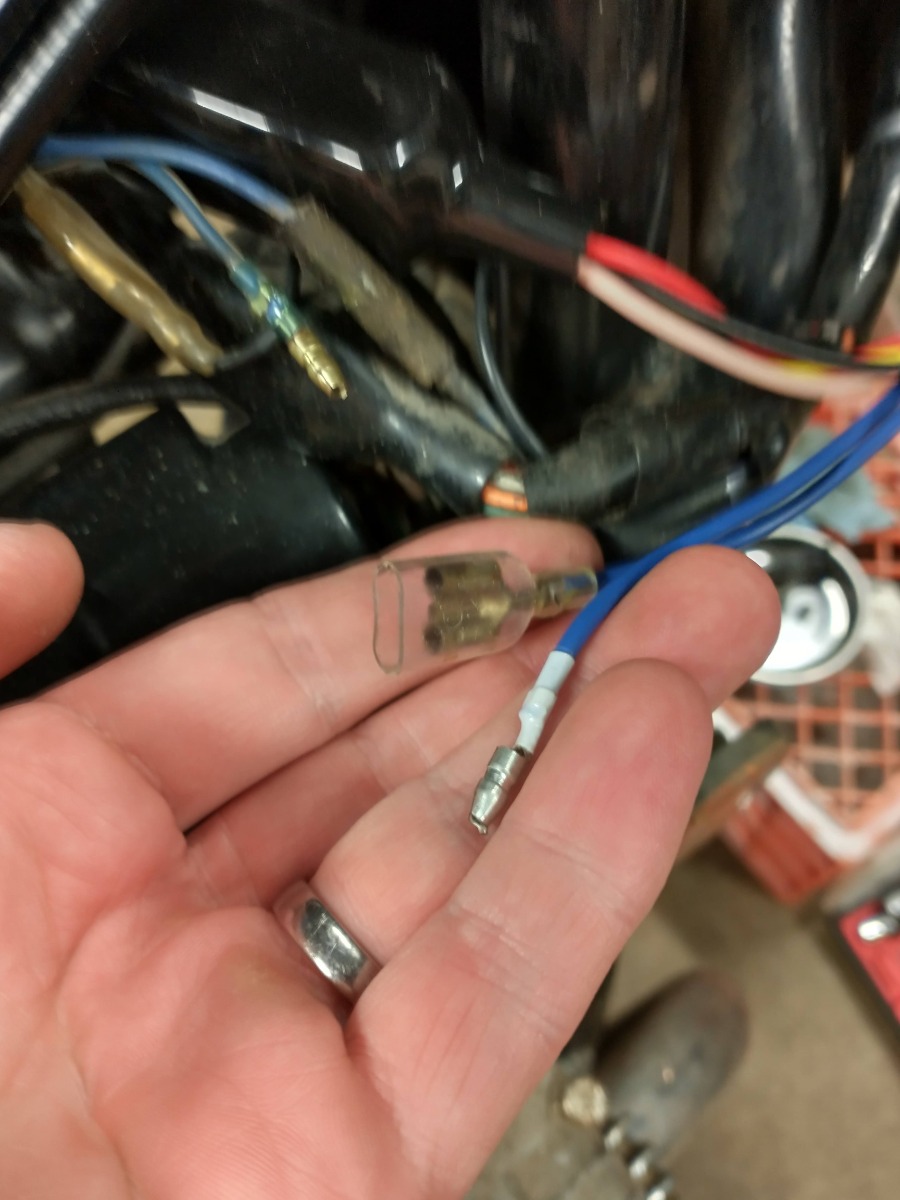

I bought and installed a new reproduction right hand controls for my kz900. The blue wire connectors from the controls are a little different from the originals and do not directly connect. Anyone else have experience with how to properly hook this up? Currently have no functioning headlight but this might be unrelated.




Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by motoaddict.

KZ900 right hand controls 19 Jul 2021 04:00 #851999

  • 73z1
  • 73z1's Avatar
  • Offline
  • User
  • Posts: 506
  • Thank you received: 97
Plug the two male connectors into female connector.


Please Log in or Create an account to join the conversation.

KZ900 right hand controls 19 Jul 2021 04:01 #852000

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1940
  • Thank you received: 565
Try connecting that blue male to the blue double female.  Then take the blue male from your left control and connect to the blue double female on the right control.

By the way...that control is for a Z1, not a KZ.  There should not be any "ON-PO-OFF" on a KZ.  But it will still work.
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Last edit: by hardrockminer.

KZ900 right hand controls 19 Jul 2021 04:41 #852003

  • motoaddict
  • motoaddict's Avatar Topic Author
  • Offline
  • User
  • Posts: 32
  • Thank you received: 8
Thanks, I will try that out. It was advertised as for a Z1 or KZ. What do the blue wires even do?

Please Log in or Create an account to join the conversation.

KZ900 right hand controls 19 Jul 2021 05:10 #852005

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15418
  • Thank you received: 2829

Try connecting that blue male to the blue double female.  Then take the blue male from your left control and connect to the blue double female on the right control.

By the way...that control is for a Z1, not a KZ.  There should not be any "ON-PO-OFF" on a KZ.  But it will still work.

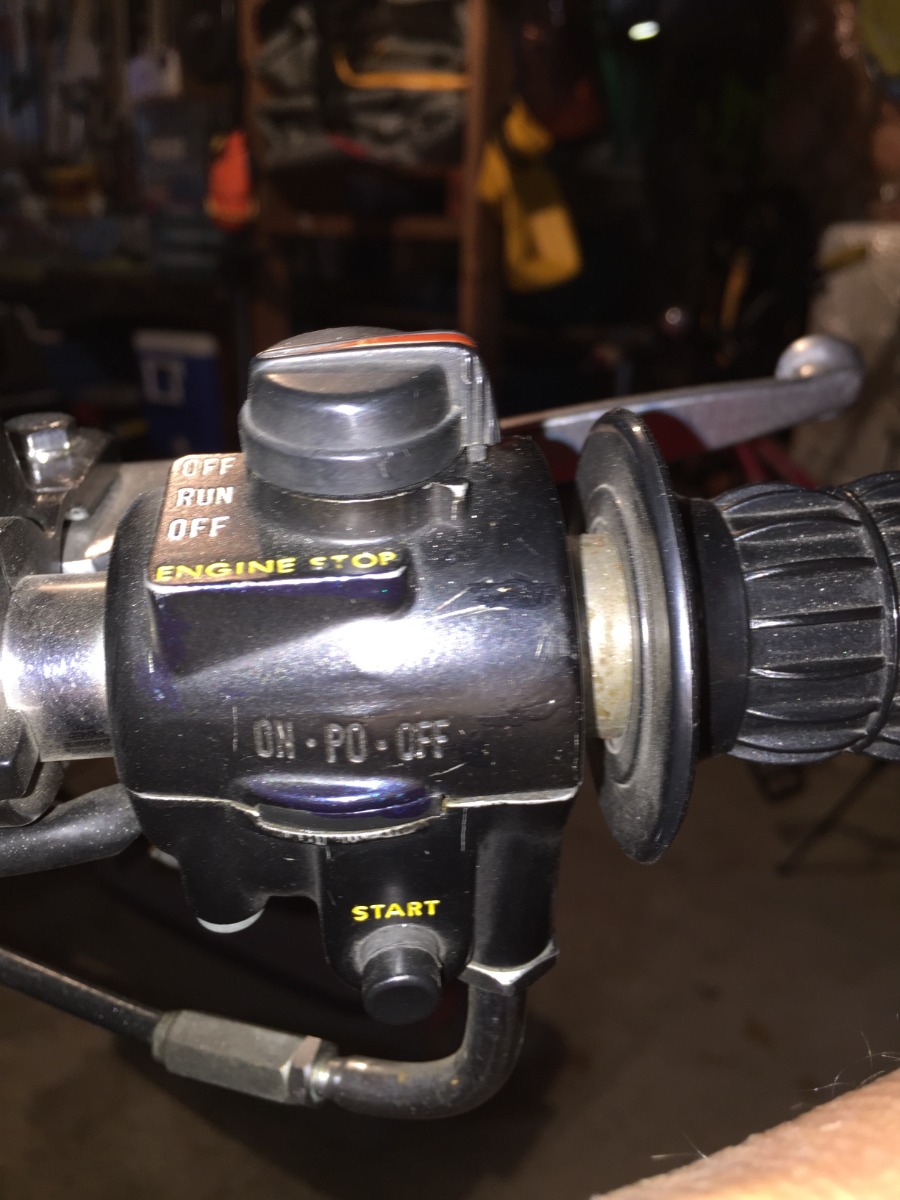

Not exactly true. My 1977 KZ650-C1 came new with the ON OFF switch.  It was somewhat later (1978?) that the headlights came on automatically when the ignition was turned on.  Ed


1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 right hand controls 19 Jul 2021 05:59 #852007

  • 73z1
  • 73z1's Avatar
  • Offline
  • User
  • Posts: 506
  • Thank you received: 97

What do the blue wires even do?

Blue wires power tail light and speedo light


Please Log in or Create an account to join the conversation.

KZ900 right hand controls 19 Jul 2021 06:11 #852009

  • jwfels
  • jwfels's Avatar
  • Offline
  • User
  • Posts: 43
  • Thank you received: 4
hi, switched lighting or unswitched? if unswitched, in your old switch wiring under the sleeve, they spliced brown. (12v feed) to blue/white and brown/white, to return to fuses for lighting, the blue wire are switch legs from light switch (ring out), what did you do with the 4 pin connector on new switch?  remove and splice direct?  brown feeds ignition and lighting,   single blue is feed for light switch, some how splice to brown, (bullet connectors are best), plug blue/white and brown white into double blue, which,, will feed lighting fuses, good luck
Z1A AND 81 650

Please Log in or Create an account to join the conversation.

KZ900 right hand controls 19 Jul 2021 16:48 #852055

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1940
  • Thank you received: 565

Try connecting that blue male to the blue double female.  Then take the blue male from your left control and connect to the blue double female on the right control.

By the way...that control is for a Z1, not a KZ.  There should not be any "ON-PO-OFF" on a KZ.  But it will still work.




Not exactly true. My 1977 KZ650-C1 came new with the ON OFF switch.  It was somewhat later (1978?) that the headlights came on automatically when the ignition was turned on.  Ed



I suppose it depend on the original market.  Here in Canada the change was in 1975.  I had a Z1B back then with no lettering.  US market may have been different.

I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

KZ900 right hand controls 20 Jul 2021 03:43 #852093

  • motoaddict
  • motoaddict's Avatar Topic Author
  • Offline
  • User
  • Posts: 32
  • Thank you received: 8

Try connecting that blue male to the blue double female.  Then take the blue male from your left control and connect to the blue double female on the right control.

By the way...that control is for a Z1, not a KZ.  There should not be any "ON-PO-OFF" on a KZ.  But it will still work.

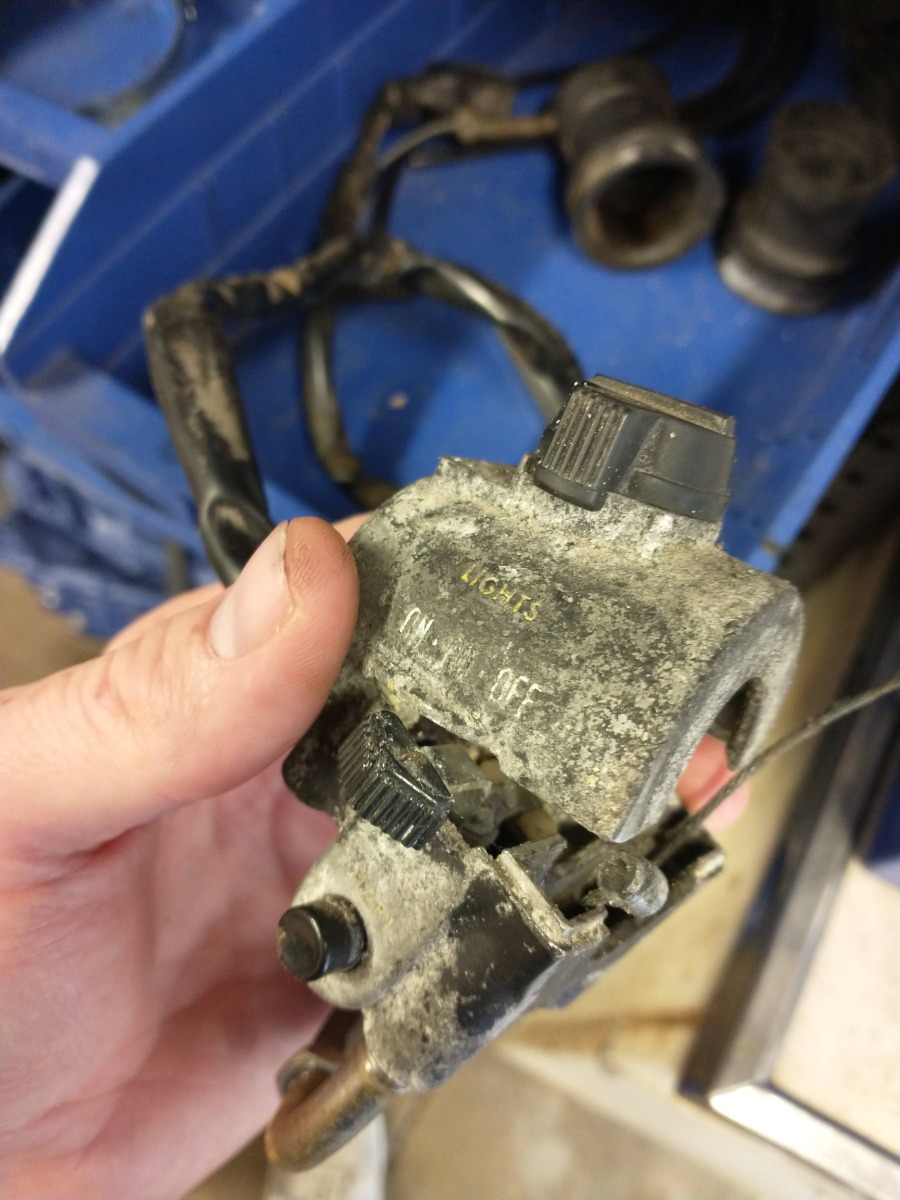

The original right hand KZ900 controls were switched unless someone at some point swapped it from a Z1? Also thanks for the wiring advice, I was able to get the headlight to turn on by experimenting with the blue wires. The headlight is not all that bright but the engine was not running. Maybe brighter then? Also the flashers and hazards dont work so I need to replace the relays for those. Also the turn signal indicator lamps to not seem to work. Do I even need these?





Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by motoaddict.

KZ900 right hand controls 20 Jul 2021 04:12 #852095

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1940
  • Thank you received: 565

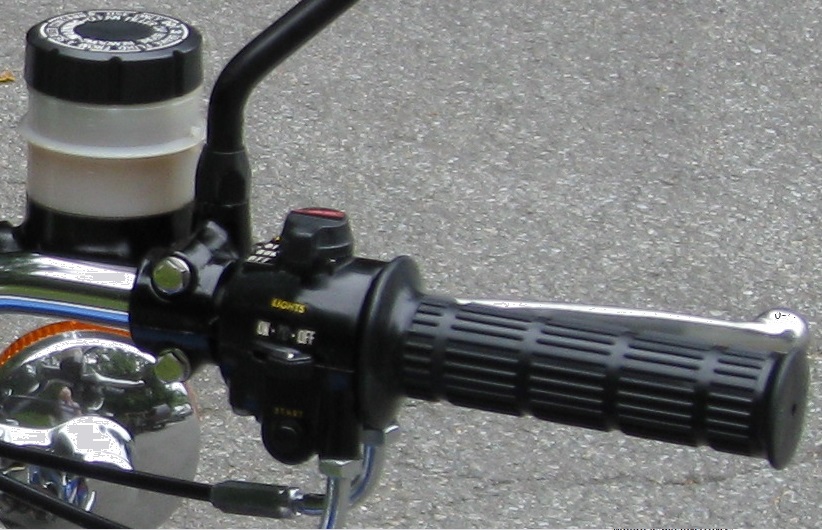

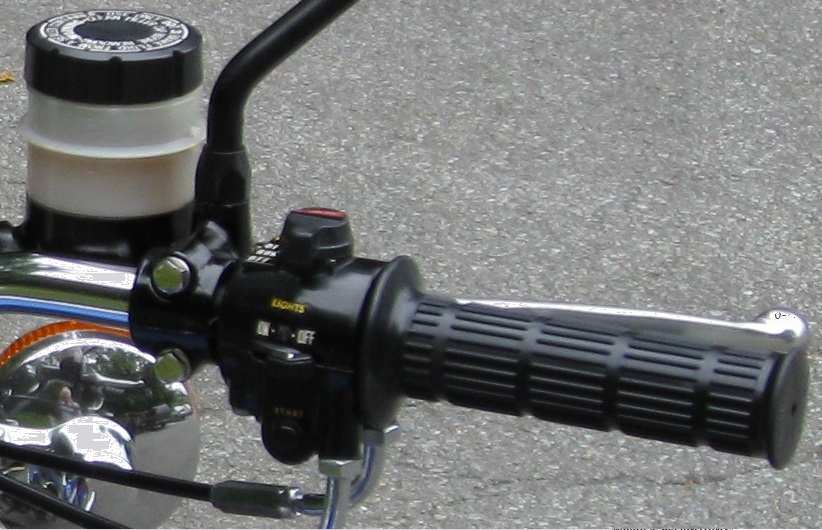

I have two Z1Bs (1975).  One was built in Sept/74 with a RH control like the one you removed.  The other was built in Jan/75 with the control in the photo below.  If you look carefully you will see a tiny piece of plastic across the slit between the two halves of the control.  I also owned a Z1B back in the day with a control like the second one.

Just a guess, but I suspect the US market didn't require the headlight to be on all the time until a later year.  In Canada it was 1975.


I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 right hand controls 20 Jul 2021 05:30 #852099

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 886
  • Thank you received: 387

motoaddict post=852093

Unless the internal switchboards are broken or completely trashed, that can very likely be restored.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

KZ900 right hand controls 20 Jul 2021 08:03 #852107

  • motoaddict
  • motoaddict's Avatar Topic Author
  • Offline
  • User
  • Posts: 32
  • Thank you received: 8
Great! I will sell it you :)
