Horn disassembly and repair 20 Jun 2021 11:25 #850469

  • ghostdive
  • ghostdive's Avatar Topic Author
  • Offline
  • User
  • Posts: 399
  • Thank you received: 118
I never use my horn, aside from when I bump the button while trying to use my turn signals. I was bored, though, so I dug in.

8mm nut takes off the front.



After that, pry off the crimp ring from the back. I used vise grips, if you're into preserving horns I'd suggest a tiny chisel.

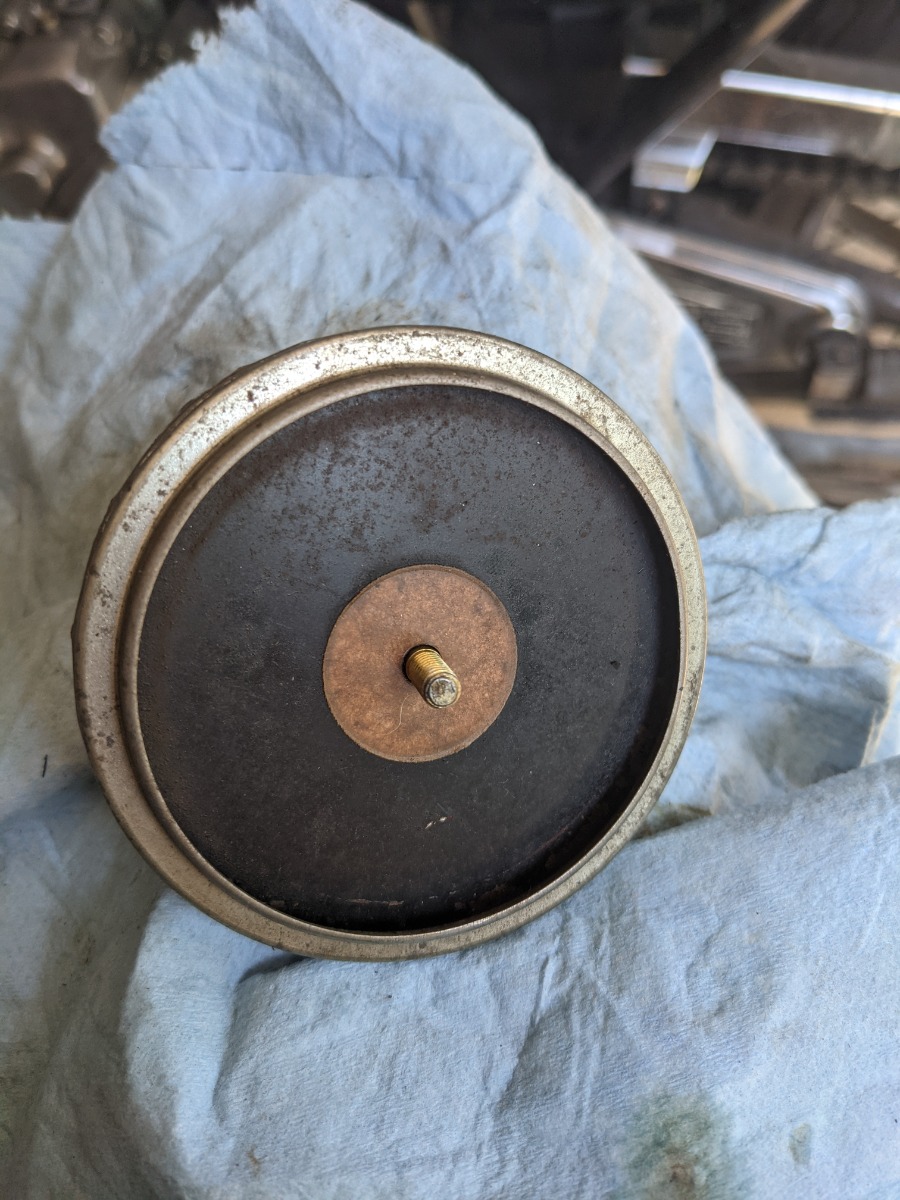

After that you can take off the diaphragm or whatever - I used a razor blade to separate it from the base. InternaIs are fairly simple; allegedly, there's an electromagnetic coil, which pulls the diaphragm down, which makes the set of contacts touch, which releases the diaphragm, repeat and it makes noise.

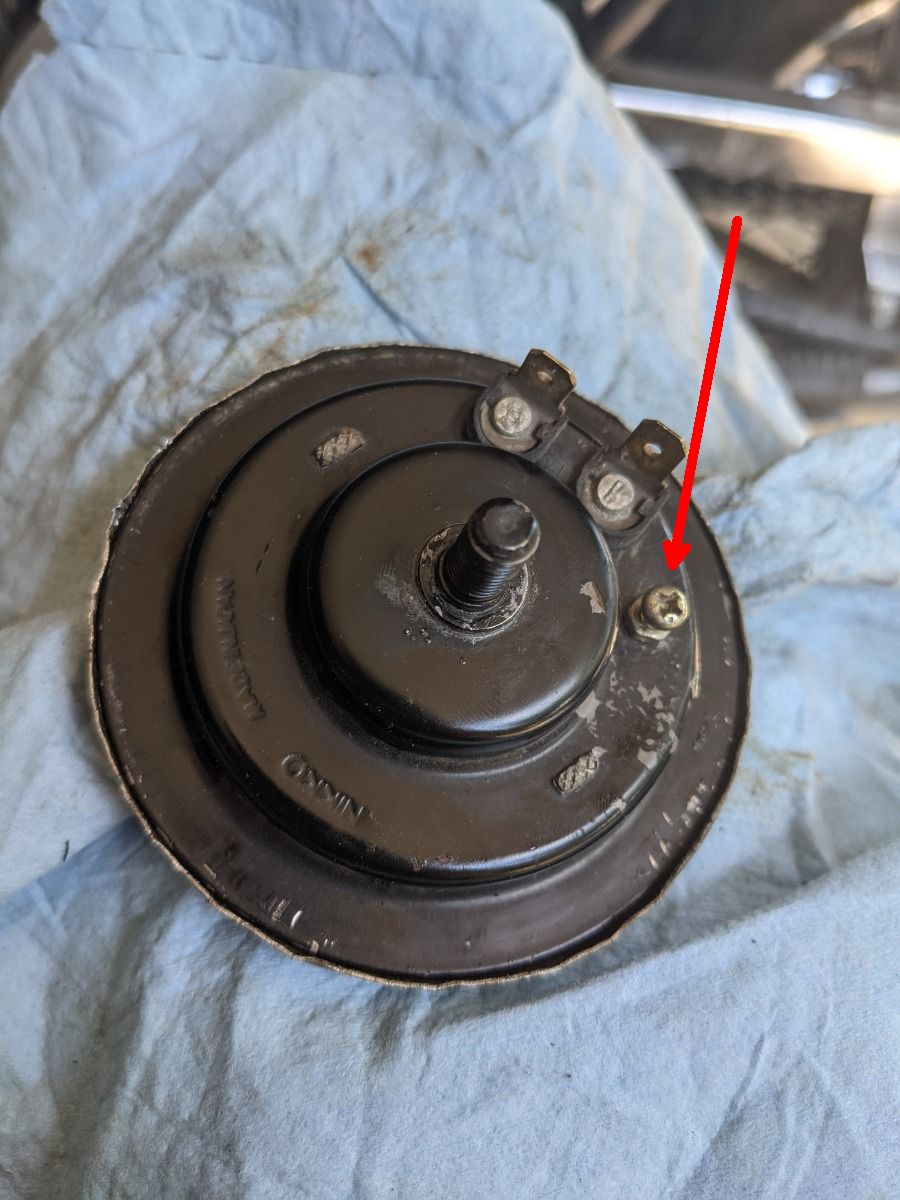

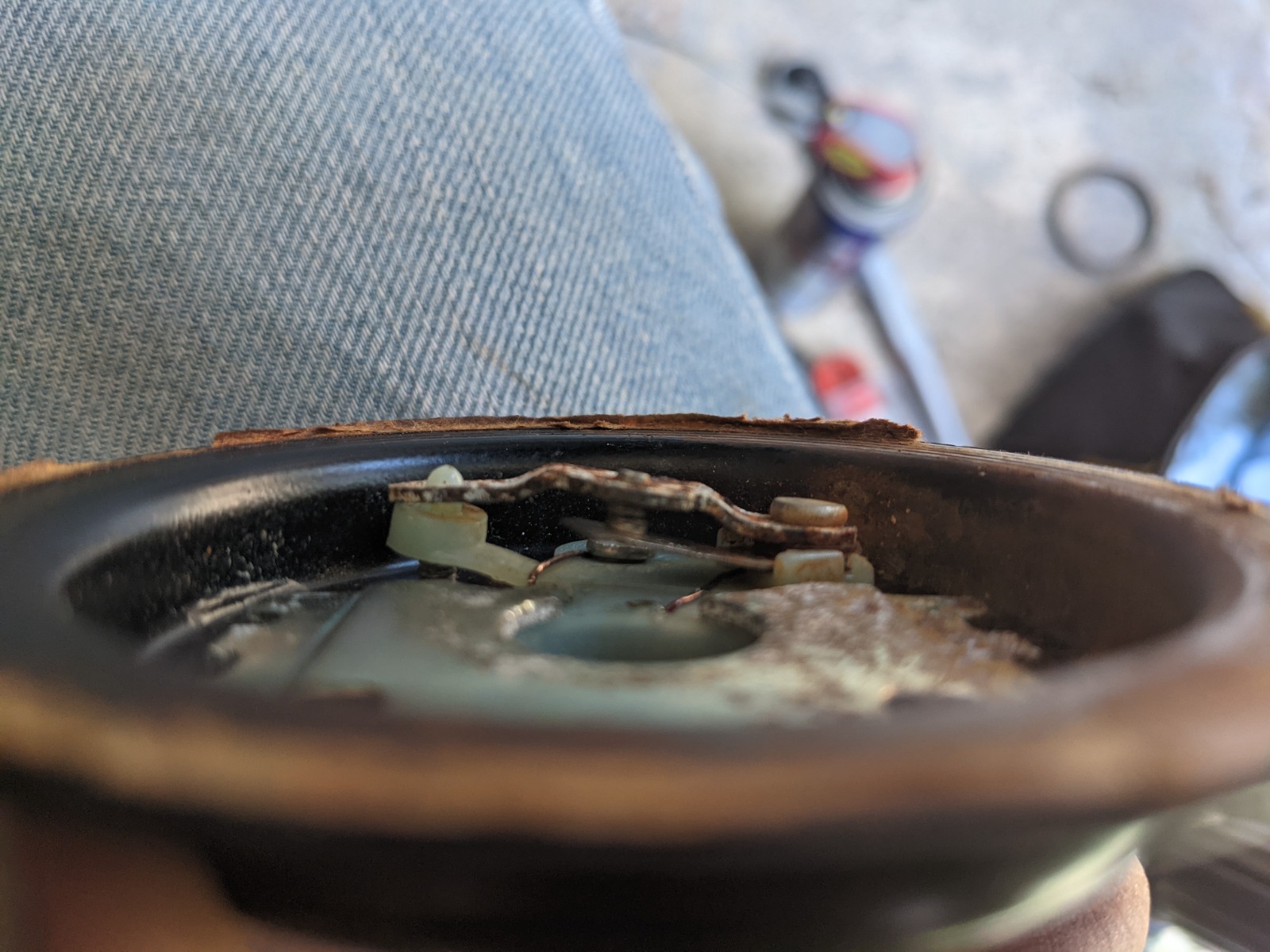

My contacts were touching with the tiny adjustment screw bottomed out, so I bent the upper arm to give the assembly some room.



I then fiddled with it for a good half an hour before giving up. The best I got was a pianissimo quack. I suppose it's time to spend $10 on a new horn.
1982 KZ750 Spectre - 6 speed swap, BS34s, 18" rear wheel

2001 ZX-6R
Attachments:

Please Log in or Create an account to join the conversation.

Horn disassembly and repair 20 Jun 2021 11:36 #850470

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Thanks for the look inside. Recently I cleaned up the original horn on my 900 project, after spending several hours and getting really nice I realized I didn’t even know if it worked. To my chagrin it didn’t work. I tried several things to adjust the contacts and could never get it to work reliable, nor sound correct when it did work. Seeing the example of yours being rusted and nasty inside that’s probably what mine looks like. I searched through evil Bay and was able to find a really nice condition one and it works great.

The 73 to 75 Z1 horn is held together with nuts & bolts, not the crimp ring. If your looking for one that can be cleaned and maintained it would be a good choice.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: ghostdive

Please Log in or Create an account to join the conversation.

Horn disassembly and repair 20 Jun 2021 11:57 #850471

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103

allegedly, there's an electromagnetic coil, which pulls the diaphragm down, which makes the set of contacts touch, which releases the diaphragm, repeat and it makes noise.

I can confirm it is true, the horn turns on and off sixty times per second making hell of a racket and scaring animals and small children.


Please Log in or Create an account to join the conversation.

Horn disassembly and repair 20 Jun 2021 11:58 #850472

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103

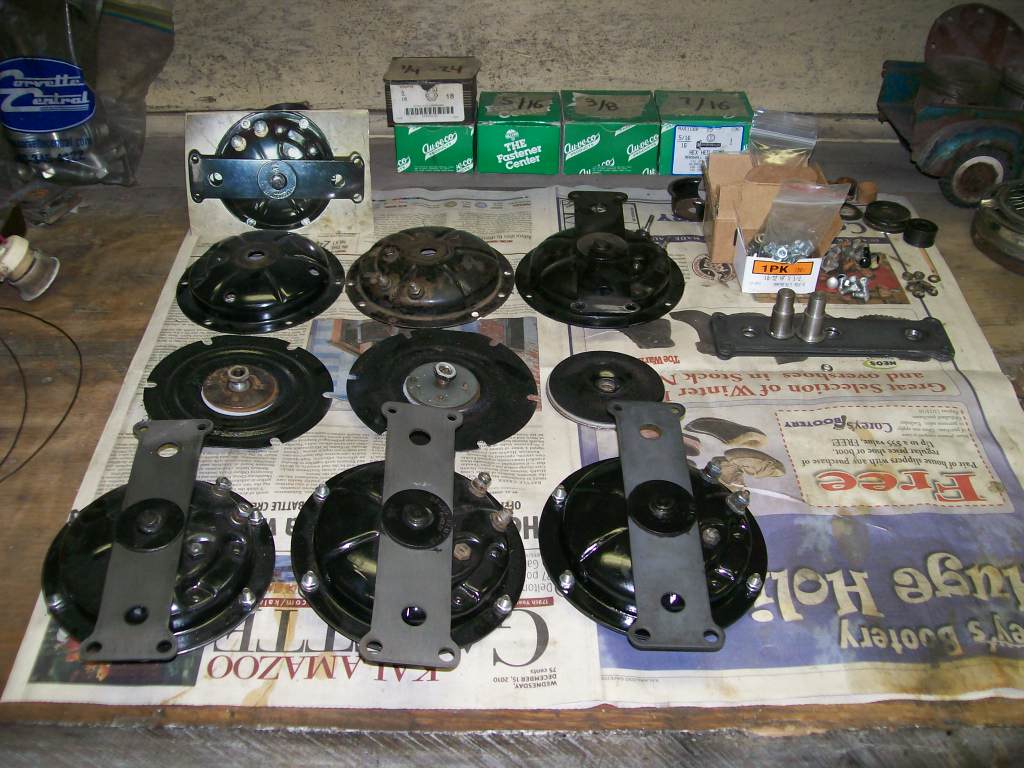

Attachments:

Please Log in or Create an account to join the conversation.

Horn disassembly and repair 20 Jun 2021 14:56 #850487

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
No need to pry off the horn. It´s adjustable with the screw. The horn mechanism (Wagner hammer) is the same as a classic door bell. Just the frequency is higher.

upload.wikimedia.org/wikipedia/commons/f...agnerscherHammer.ogv


Attachments:

Please Log in or Create an account to join the conversation.

Horn disassembly and repair 20 Jun 2021 15:08 #850489

  • ghostdive
  • ghostdive's Avatar Topic Author
  • Offline
  • User
  • Posts: 399
  • Thank you received: 118
Adjusted that to no effect; when I opened the horn I found that, even with the nut removed from the fully-threaded-in screw, the contacts were still touching. Had to bend it.
1982 KZ750 Spectre - 6 speed swap, BS34s, 18" rear wheel

2001 ZX-6R

Please Log in or Create an account to join the conversation.

Horn disassembly and repair 20 Jun 2021 18:18 #850498

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1229
  • Thank you received: 494
The same thing happened to the horn on my kz650.  It just made weak noises like a sad animal.  My wife made a lot of jokes about it (she still sometimes mentions it now ~15 years later).  Eventually I decided to show her!  I got a pair of 130db horns, high and low tone.  They looked like the factory horn, but were silver.  I mounted them to a single aluminum plate under the steering head where folks often put oil coolers.  One horn alone sounded like a normal horn, maybe a bit louder.  Nothing special.  But the two horns were close enough in pitch that they beat together.  It was a fast beat.  It didn't really sounds like a horn.  It sounded like a catastrophe.  Problem solved!  I remember coming up behind a guy on a bicycle who was weaving a bit.  I wanted to just give a little toot to let him know I was there and he nearly jumped off his bike.

I should mention that I had to add a relay to get the horns to work.  The factory switch and wires couldn't handle the higher current.  After I added the horns and the relay I wondered if dirty switch contacts might have been part of my original problem with the factory horn.  Something to check if you're having horn issues.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100

Please Log in or Create an account to join the conversation.

Horn disassembly and repair 20 Jun 2021 18:27 #850499

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
Almost the same here.  I added a Fiamm horn (including relay) to the stock horn on my 1977 KZ650-C1.  Results below.  Ed



Fiamm Horn.mov

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

Horn disassembly and repair 23 Jun 2021 22:08 #850685

  • Kaylinator
  • Kaylinator's Avatar
  • Offline
  • Sustaining Member
  • Posts: 342
  • Thank you received: 74
My KZ1000 doesn't have a crimp ring. When I pulled it out of the barn, the horn didn't work. Took it apart to find the paint had flaked. Cleaned it up and repainted and it works great now, although still not loud enough to catch the attention of any assholes who blow a stop sign while looking the opposite direction, it would seem...
1978 KZ1000-A2
kzrider.com/forum/11-projects/613296-1978-kz1000-a2-barn-find

1978 KZ400-B1

2022 Z900RS SE

Please Log in or Create an account to join the conversation.

Horn disassembly and repair 24 Jun 2021 09:38 #850703

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

My KZ1000 doesn't have a crimp ring. When I pulled it out of the barn, the horn didn't work. Took it apart to find the paint had flaked. Cleaned it up and repainted and it works great now, although still not loud enough to catch the attention of any assholes who blow a stop sign while looking the opposite direction, it would seem...
Is your bolted together. If so it’s from. 73-75 Z1
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
