Z1 Color Wiring Diagram? 13 Jun 2021 15:12 #850144

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

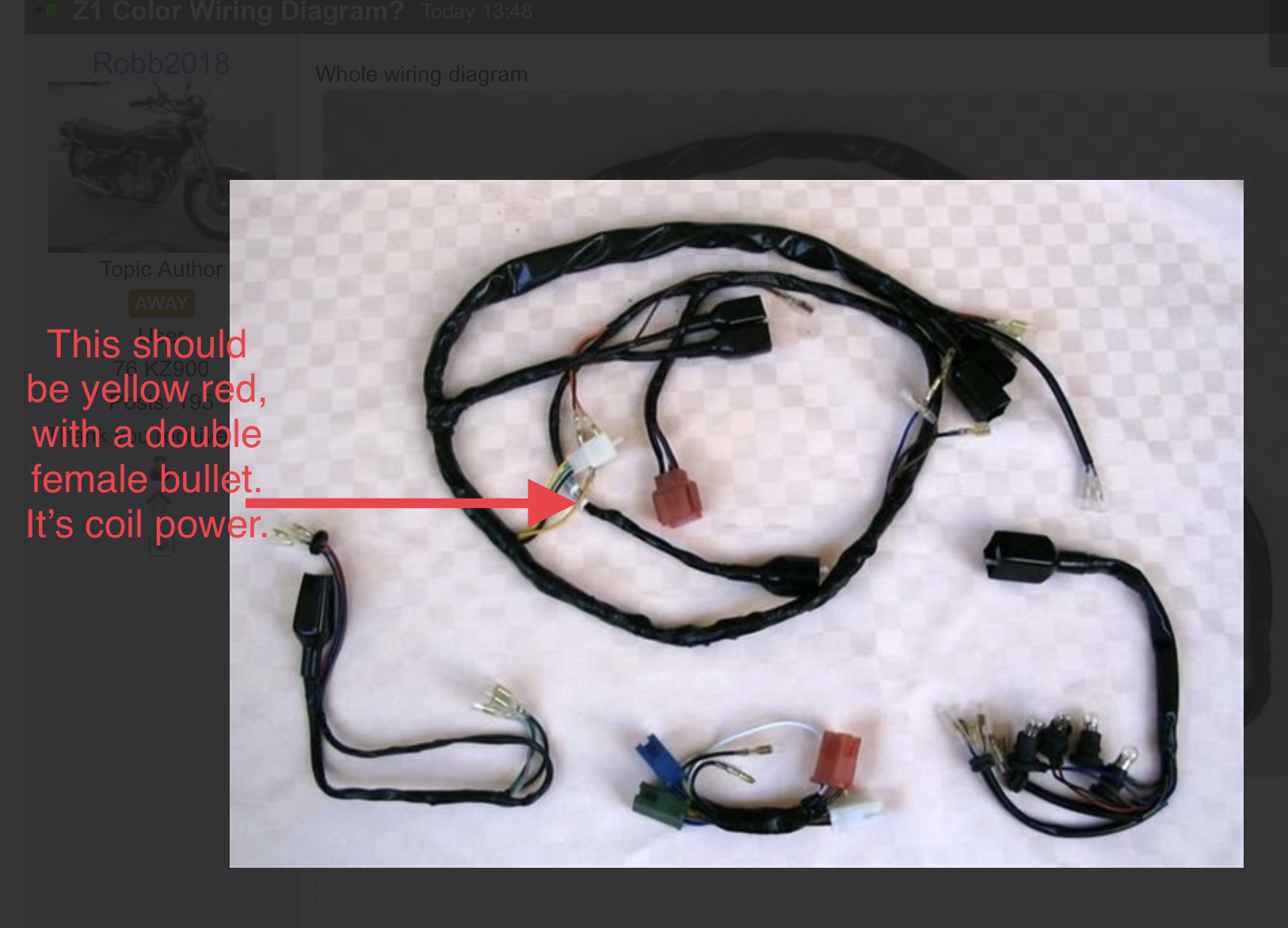

The white connector is the coils and points. Black and green are points and it should have the yellow red for coils.

edit. The white connector might be the brake light failure switch. What are the colors
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

Z1 Color Wiring Diagram? 13 Jun 2021 15:32 #850145

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29
Thanks Mikaw, you're a Godsend.  This helps tremendously.  I wonder if this harness is used on the Cop bike?  Could the white possibly be Cop bike related?

KZ900; Z1

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 15:51 #850147

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29
On my KZ900 the brown and blue goes to the horn.  I'm wondering if the front brake line is run through the plug coming off the right handlebar control?
KZ900; Z1

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:12 #850148

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Horn is brown and black. The black comes off the LH control separate, not in the connector. Brown is 12volt
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Robb2018

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:25 #850151

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

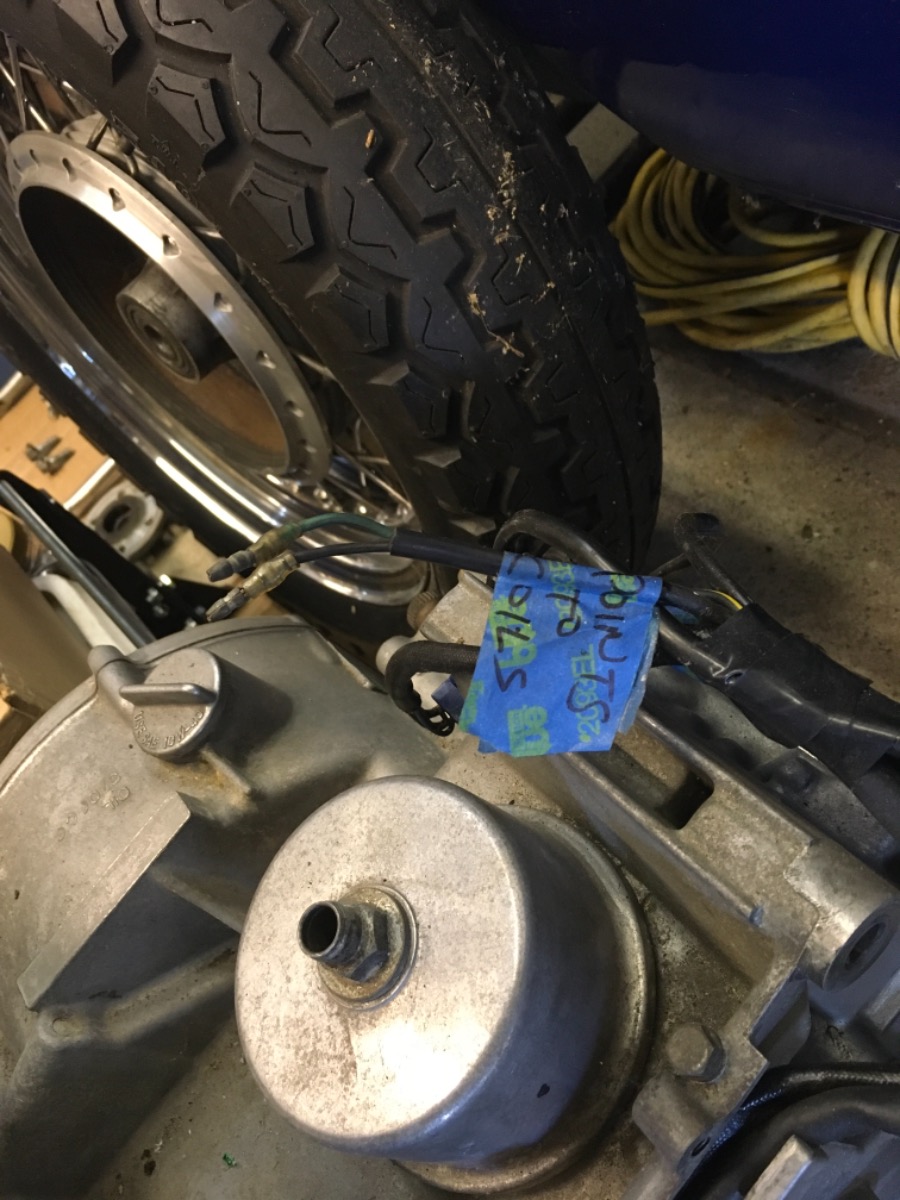

Points connect to the coils thru a two wire harness from the points. Black and green. They connect direct to the coils.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:27 #850152

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:34 #850153

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29

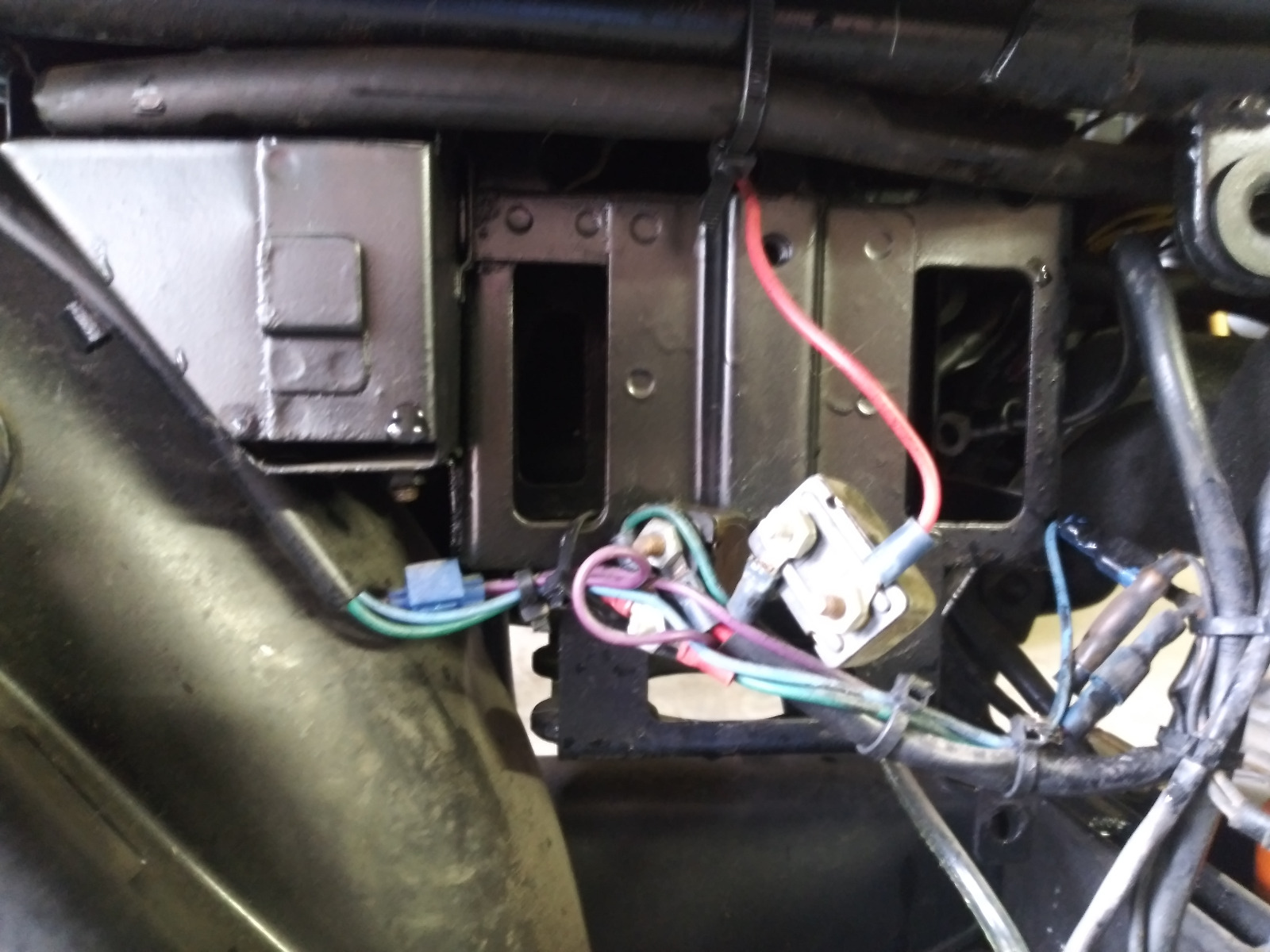

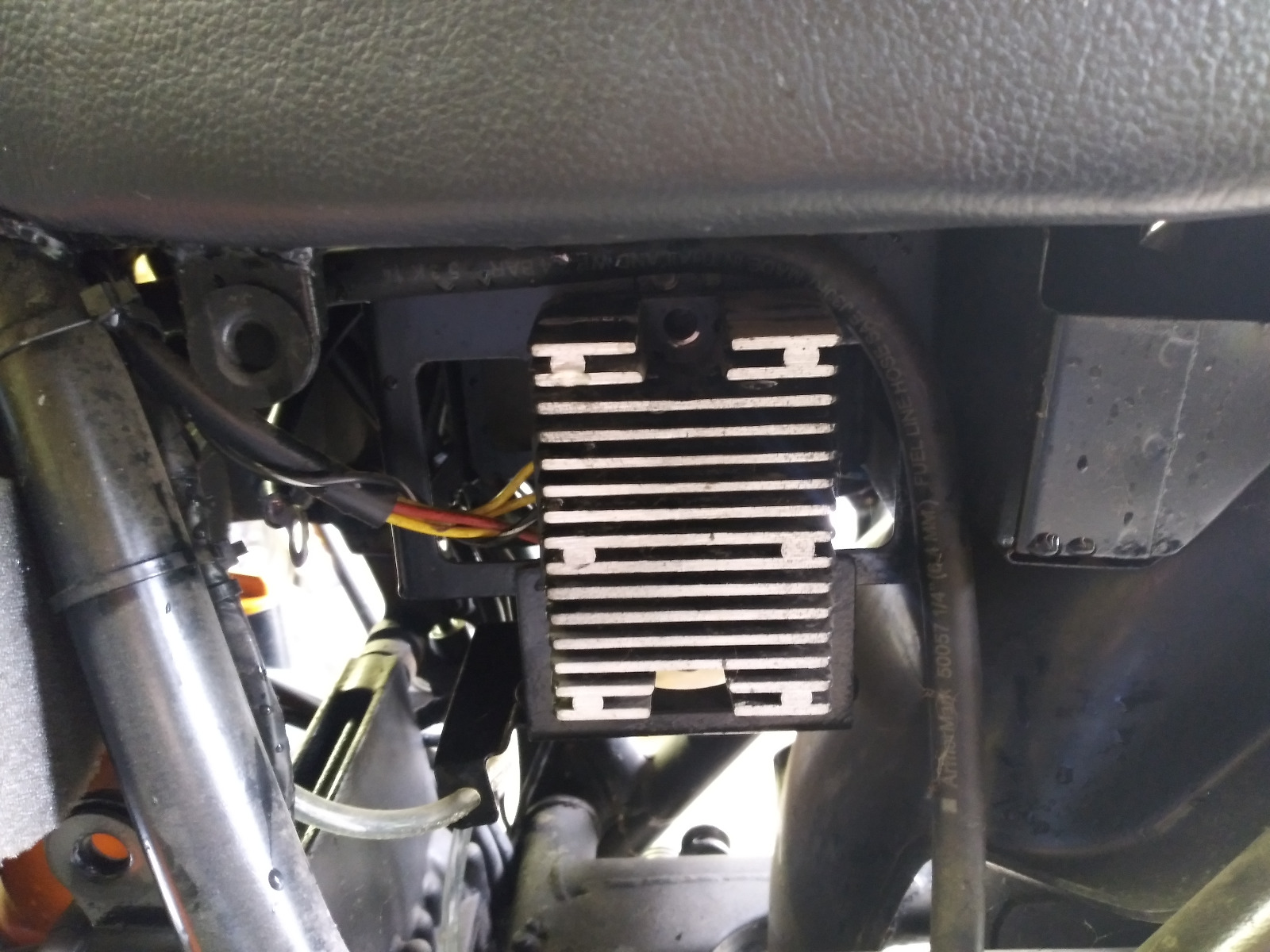

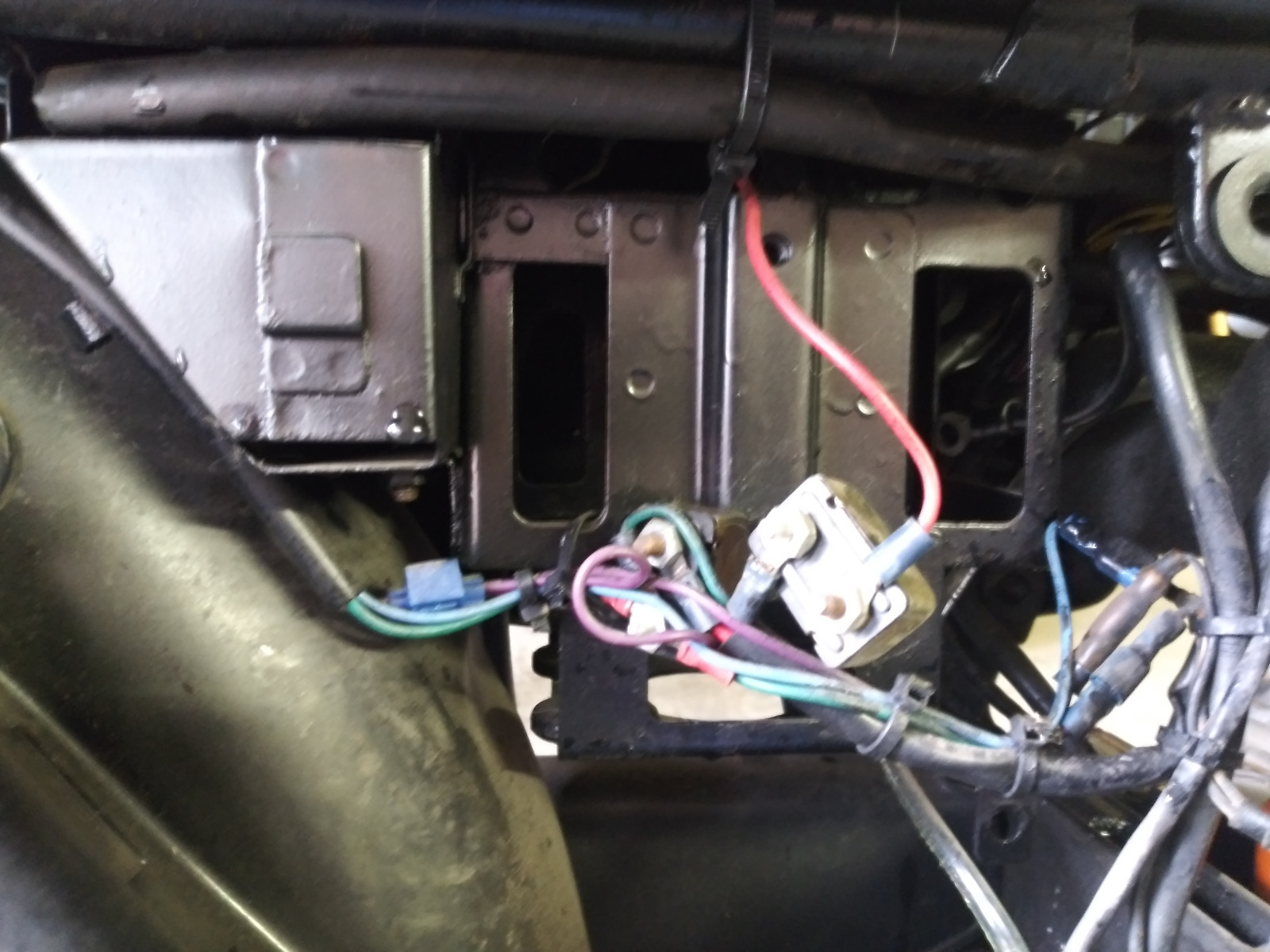

I'll tell you, it's like someone set a monkey loose with a soldering iron and a wire cutter on this electrical system.  He's got splices and goofy connectors all over the place.  He had removed the panel under the right side cover and had this crap connected to a couple of these square connectors.  Then he replaced the rectifier with a solid state regulator rectifier and cut into the harness and spliced the leads. When I converted my first KZ to regulator/rectifier it came with a canon connector that just plugged into the panel.  Also, can anyone identify this regulator rectifier?
KZ900; Z1
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Robb2018.

Z1 Color Wiring Diagram? 13 Jun 2021 16:39 #850154

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103
The three wire connector near the coils is part of the brake light warning system that appeared in 1974, warning light in tachometer, 28019-001


The following user(s) said Thank You: Robb2018

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:41 #850155

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103

can anyone identify this regulator rectifier?

Aftermarket, not oem.


Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:47 #850157

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29

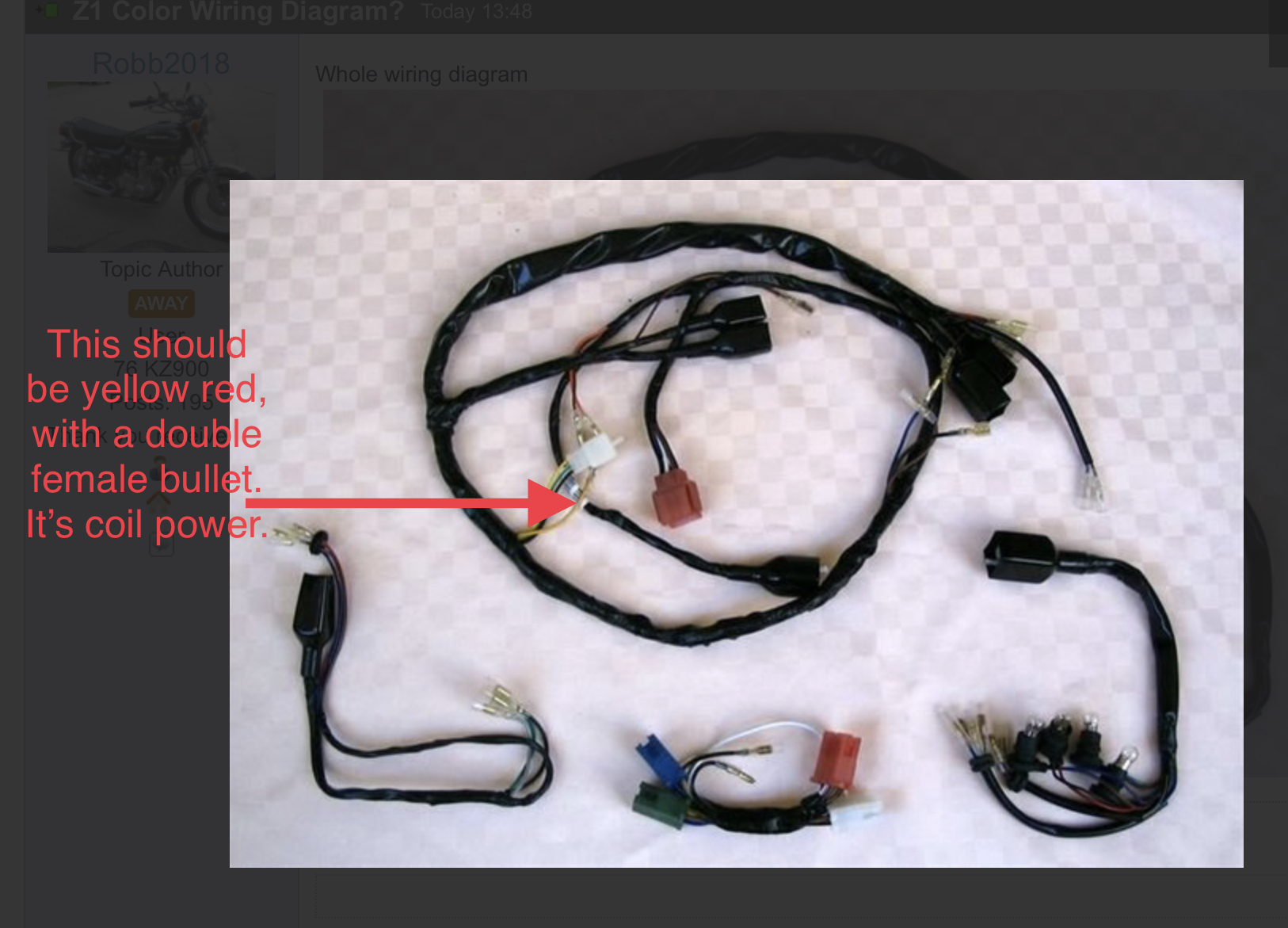

That is .in fact yellow red with double fem connector.  Making more sense little by little.  What goes to the blacks coming off the coils?
KZ900; Z1

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:50 #850158

  • Robb2018
  • Robb2018's Avatar Topic Author
  • Offline
  • User
  • 76 KZ900 73 Z1 A
  • Posts: 274
  • Thank you received: 29
73z1 post=850155

can anyone identify this regulator rectifier?

Aftermarket, not oem.


There's no name on it, just some numbers on the back that I can't make out.

KZ900; Z1

Please Log in or Create an account to join the conversation.

Z1 Color Wiring Diagram? 13 Jun 2021 16:54 #850159

  • 73z1
  • 73z1's Avatar
  • Offline
  • Sustaining Member
  • Posts: 511
  • Thank you received: 103
The points plate has a long green wire and black wire that goes under engine then up to coils.
A yellow/red wire supplies +12 volts to the coils.

The following user(s) said Thank You: Robb2018

Please Log in or Create an account to join the conversation.

Last edit: by 73z1.
