78 KZ650 stator variations was created by katit

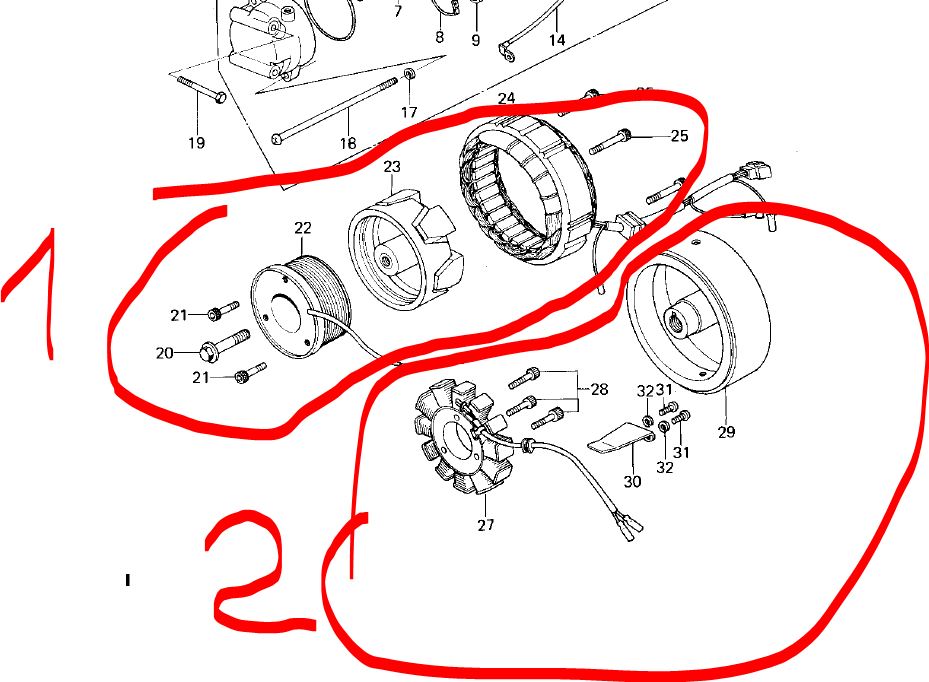

Who can tell a difference between #1 and #2? Is one better than other? Why?
Here is why I am asking. My bike setup with #2. It requires specific cover (no visible holes, stator mounts from back)
My cover needs replacement and I don't see them readily available (exact replacement). 79 will work but looks different on outside.
I will use Dyna ignition/coils which from what I know requires more amps.
So, should I stay with #2 setup or switch to #1? If Dyna needs aftermarket, will it mound to #2 or #1?
Here is why I am asking. My bike setup with #2. It requires specific cover (no visible holes, stator mounts from back)
My cover needs replacement and I don't see them readily available (exact replacement). 79 will work but looks different on outside.
I will use Dyna ignition/coils which from what I know requires more amps.
So, should I stay with #2 setup or switch to #1? If Dyna needs aftermarket, will it mound to #2 or #1?
78 KZ650B2A - resto in progress
www.kzrider.com/forum/11-projects/615161...s-1978-kz650-project
Other bikes: 1978 BMW R100/7, 1978 Moto Guzzi T3, 2016 DRZ400s
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7510
- Thank you received: 2827
23 Apr 2021 12:46 #847305
by Nessism
Replied by Nessism on topic 78 KZ650 stator variations
Type 1 is the excited coil type generator. I think it has some advantages in theory over the permanent magnet system (Type 2) but in my opinion not enough to make the switch. Within the Type 2 systems some are single phase and others are three. Three phase systems came in on the later bikes, but I can't tell you exactly when. I think the three phase type is the most powerful but one disadvantage is with the stock shunt type R/R any power produced that isn't consumed by the bike will be returned to the stator where is will generate heat, leading to reduced stator life. One phase bikes that produce less power don't have as much of a problem. If you go three phase then I advise to get a SH775 R/R. These are SERIES type not SHUNT type, the difference being they don't send the excess power to the stator like a shunt R/R, thus the stator will stay cooler.
The following user(s) said Thank You: Scirocco
