82 gpz1100 wiring diagram 17 Jun 2020 15:02 #828354

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 2932
  • Thank you received: 1280
No Video here attached, try YouTube...

Please Log in or Create an account to join the conversation.

82 gpz1100 wiring diagram 17 Jun 2020 15:06 #828356

  • DNort
  • DNort's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 13
  • Thank you received: 0
Weird, I compressed it below the attachment size but it still gives me "file too large" error.

Anyway I uploaded the video on my google drive. Anyone with this link should be able to view it.

drive.google.com/file/d/1Hfy8fIVGzq-aVzU...VJc/view?usp=sharing
82 kawasaki GPZ 1100
Mostly stock with 82 gs1000 swingarm

Please Log in or Create an account to join the conversation.

82 gpz1100 wiring diagram 17 Jun 2020 18:33 #828361

  • F64
  • F64's Avatar
  • Offline
  • Member
  • Member
  • 81-KZ440D2
  • Posts: 331
  • Thank you received: 56
I was looking at an 83 schematic....Trying to find an 82 now

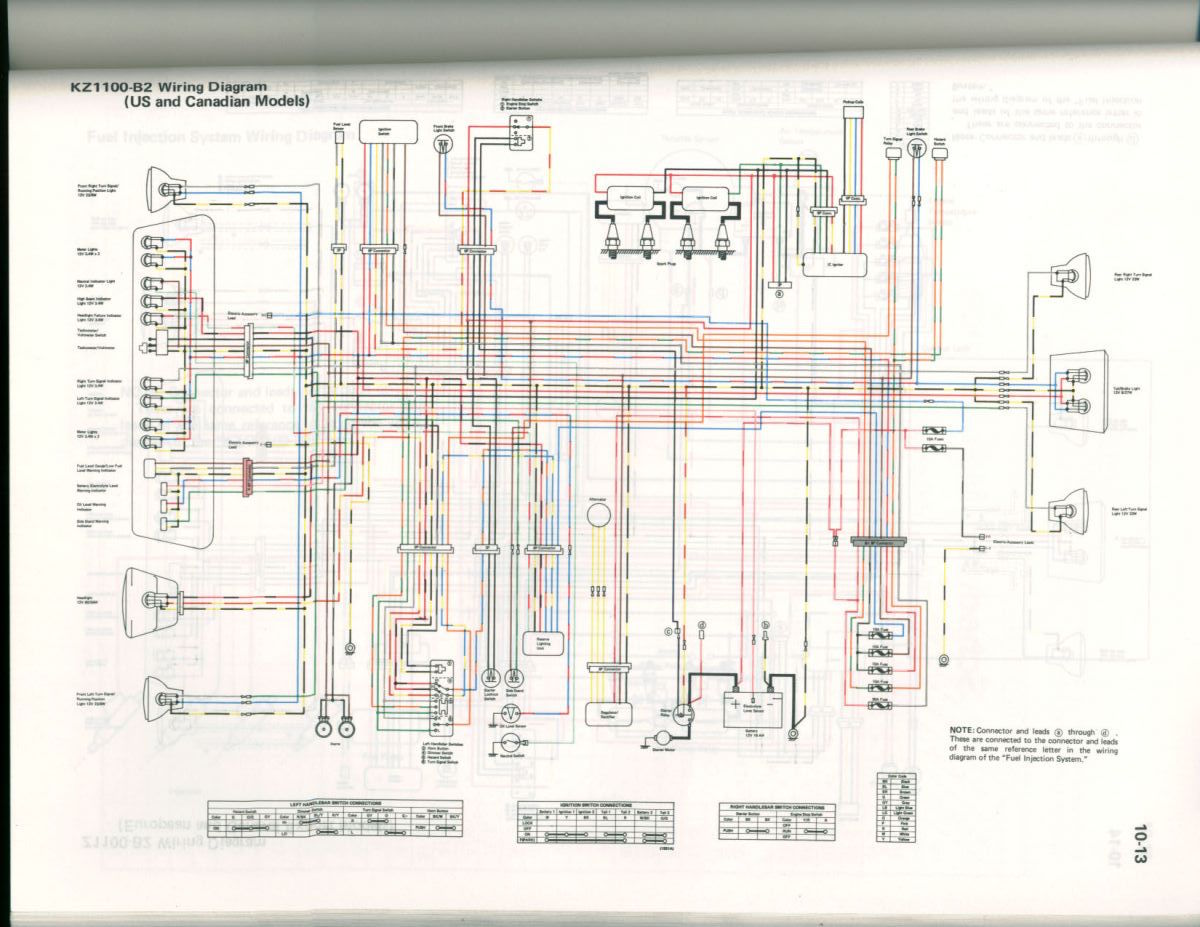

found one--hard to read though--totally different than an 83
courtesy of gd4now
www.kzrider.com/forum/4-electrical/59846...82-kz1100-us-cananda


Take a look at your regulator/rectifier. It may be having a field day with your electrical system.

When your bike is acting as it does in the video, you may be able to shut the bike off and disconnect the reg/rec 6 wire connector and restart to see if the issue remains when you restart.
Or better yet put a meter on the battery terminals when the bike is running badly to see what the regulator voltage at the battery looks like.

Looking at the video again it looks like your voltage is surging. Your headlight gets brighter and dimmer as well as your neutral light
81-KZ440-D2. Louis Dudzik's GM HEI ignition module converted 2015--no issues, Motogadget m-unit blue.
Attachments:
The following user(s) said Thank You: DNort

Please Log in or Create an account to join the conversation.

Last edit: by F64.
