Coil wire getting hot
- 1981kz750ltd
- Topic Author
- Offline
- Sustaining Member
Less
More
28 May 2020 14:33 #826765
by 1981kz750ltd
Coil wire getting hot was created by 1981kz750ltd
I' m working with a 1976 900 LTD with a wiring harness from a 1979 1000cc ( I don't know if it was an LTD). Problem is the coil feed wire ( yellow with red stripe) is heating as is the red wire from the ignition switch coming from kill switch/start button. Using the Dyno coil setup. Any solutions for resolving this? Thanks.
Please Log in or Create an account to join the conversation.
- 73z1
- Offline
- Sustaining Member
Less
More
- Posts: 513
- Thank you received: 105
28 May 2020 15:34 #826770
by 73z1
Replied by 73z1 on topic Coil wire getting hot
The coils are drawing more amps then the wire can supply without over heating.
Either the coil loop has shorted or the coils need a larger wire.
Check if coils are same temperature or differ.
Either the coil loop has shorted or the coils need a larger wire.
Check if coils are same temperature or differ.
The following user(s) said Thank You: 1981kz750ltd
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
28 May 2020 20:02 #826790
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Coil wire getting hot
Check the scotch lock connection from the red wire of dyna pick ups, to the yellow with red. It could be a bad connection. Check voltage at the coil positive where the yellow/red connects. The dyna s are power hogs. Could also be in the ignition switch. The solder connections go bad
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: 1981kz750ltd
Please Log in or Create an account to join the conversation.
- cb900f
- Offline
- User
Less
More
- Posts: 109
- Thank you received: 30
28 May 2020 22:38 - 28 May 2020 22:40 #826801
by cb900f
Replied by cb900f on topic Coil wire getting hot
Check to see that the coils have the proper input resistance and (assuming resistance is correct) if the coil input is shorting to ground via the coil's iron core laminations.
Last edit: 28 May 2020 22:40 by cb900f.
The following user(s) said Thank You: 1981kz750ltd
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
29 May 2020 14:08 #826873
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Coil wire getting hot

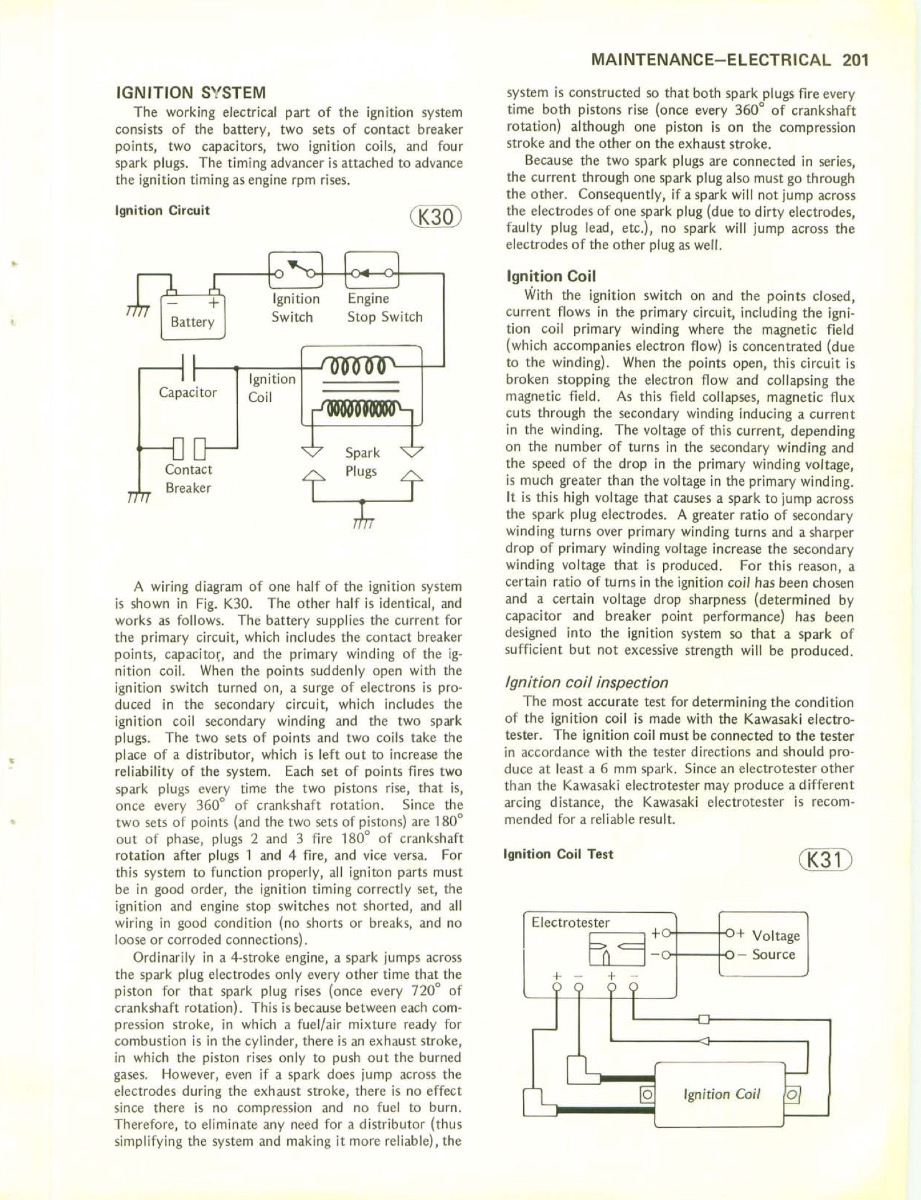

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: 1981kz750ltd
Please Log in or Create an account to join the conversation.
- 1981kz750ltd
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 68
- Thank you received: 13
10 Jun 2020 16:10 #827807
by 1981kz750ltd
Replied by 1981kz750ltd on topic Coil wire getting hot
Thank you for all the input. To follow up someone had previously repaired the handlebar kill switch with JB Weld which I believe has a lot of graphite in it. As it deteriorated the powdered JB Weld shorted the wires in the kill switch. Have repaired again with JB Weld clear epoxy.
Please Log in or Create an account to join the conversation.
- F64
- Offline
- User
- 81-KZ440D2
Less
More
- Posts: 1111
- Thank you received: 398
11 Jun 2020 08:37 - 11 Jun 2020 08:38 #827875
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic Coil wire getting hot
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Last edit: 11 Jun 2020 08:38 by F64.
Please Log in or Create an account to join the conversation.
- 1981kz750ltd
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 68
- Thank you received: 13
12 Jun 2020 21:56 #828033
by 1981kz750ltd
Replied by 1981kz750ltd on topic Coil wire getting hot
Whatever it was I can only surmise. Grey epoxy like material deteriorated to the degree it was causing a short. Whatever it was is now gone and no more short.
Please Log in or Create an account to join the conversation.
- F64
- Offline
- User
- 81-KZ440D2
Less
More
- Posts: 1111
- Thank you received: 398
12 Jun 2020 22:23 #828035
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic Coil wire getting hot
are you still having issues with the coil wire getting hot?
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Please Log in or Create an account to join the conversation.
- 1981kz750ltd
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 68
- Thank you received: 13
13 Jun 2020 07:17 #828046
by 1981kz750ltd
Replied by 1981kz750ltd on topic Coil wire getting hot
No. Wire heating problem is gone.
I've attached a picture of the inside lower half of the kill switch. Left side of the round disc that supports the brown and yellow/red kill switch wires show evidence of damage repair and partial remains of whatever substance was used to repair it. This repair substance had deteriorated and become powdery, apparently causing the short.
However.
There could be an alternative or additional cause or factor contributing to the kill switch short circuit.
For those of you who have yet to experience the joy of disassembling and reassembling these kill/run switches, they contain 3 tiny springs with a tiny ball bearing atop each one. Is it possible that after 44 years one of these little ball bearings deteriorated to the degree that its rust or flakes contaminated the switch internally, creating the short?
Or, did the previous party who repaired the broken disc not reassemble it correctly and one escaped its detent position, causing the short? Because I found only two when it came apart. But, they are tiny so it could have gotten away upon dissambly.
I'd suggest to anyone taking one of these apart, do it inside a plastic bag. if the springs or balls drop out they're contained in the bag.
Btw. These little ball bearings you can get at a good hardware store.
I've attached a picture of the inside lower half of the kill switch. Left side of the round disc that supports the brown and yellow/red kill switch wires show evidence of damage repair and partial remains of whatever substance was used to repair it. This repair substance had deteriorated and become powdery, apparently causing the short.
However.
There could be an alternative or additional cause or factor contributing to the kill switch short circuit.
For those of you who have yet to experience the joy of disassembling and reassembling these kill/run switches, they contain 3 tiny springs with a tiny ball bearing atop each one. Is it possible that after 44 years one of these little ball bearings deteriorated to the degree that its rust or flakes contaminated the switch internally, creating the short?
Or, did the previous party who repaired the broken disc not reassemble it correctly and one escaped its detent position, causing the short? Because I found only two when it came apart. But, they are tiny so it could have gotten away upon dissambly.
I'd suggest to anyone taking one of these apart, do it inside a plastic bag. if the springs or balls drop out they're contained in the bag.
Btw. These little ball bearings you can get at a good hardware store.
Please Log in or Create an account to join the conversation.
- 1981kz750ltd
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 68
- Thank you received: 13
13 Jun 2020 07:23 #828048
by 1981kz750ltd
Replied by 1981kz750ltd on topic Coil wire getting hot
No. Wire heating problem is gone.
I've attached a picture of the inside lower half of the kill switch. Left side of the round disc that supports the brown and yellow/red kill switch wires show evidence of damage repair and partial remains of whatever substance was used to repair it. This repair substance had deteriorated and become powdery, apparently causing the short.
However.
There could be an alternative or additional cause or factor contributing to the kill switch short circuit.
For those of you who have yet to experience the joy of disassembling and reassembling these kill/run switches, they contain 3 tiny springs with a tiny ball bearing atop each one. Is it possible that after 44 years one of these little ball bearings deteriorated to the degree that its rust or flakes contaminated the switch internally, creating the short?
Or, did the previous party who repaired the broken disc not reassemble it correctly and one escaped its detent position, causing the short? Because I found only two when it came apart. But, they are tiny so it could have gotten away upon dissambly.
I'd suggest to anyone taking one of these apart, do it inside a plastic bag. if the springs or balls drop out they're contained in the bag.
Btw. These little ball bearings you can get at a good hardware store.
I've attached a picture of the inside lower half of the kill switch. Left side of the round disc that supports the brown and yellow/red kill switch wires show evidence of damage repair and partial remains of whatever substance was used to repair it. This repair substance had deteriorated and become powdery, apparently causing the short.
However.
There could be an alternative or additional cause or factor contributing to the kill switch short circuit.
For those of you who have yet to experience the joy of disassembling and reassembling these kill/run switches, they contain 3 tiny springs with a tiny ball bearing atop each one. Is it possible that after 44 years one of these little ball bearings deteriorated to the degree that its rust or flakes contaminated the switch internally, creating the short?
Or, did the previous party who repaired the broken disc not reassemble it correctly and one escaped its detent position, causing the short? Because I found only two when it came apart. But, they are tiny so it could have gotten away upon dissambly.
I'd suggest to anyone taking one of these apart, do it inside a plastic bag. if the springs or balls drop out they're contained in the bag.
Btw. These little ball bearings you can get at a good hardware store.
