Headlight Relay - problem not switching Hi / Low - KZ1000-D1 Restoration
- loudhvx
- Offline
- KZr Legend
There is one relay for high beam and one relay for low beam.

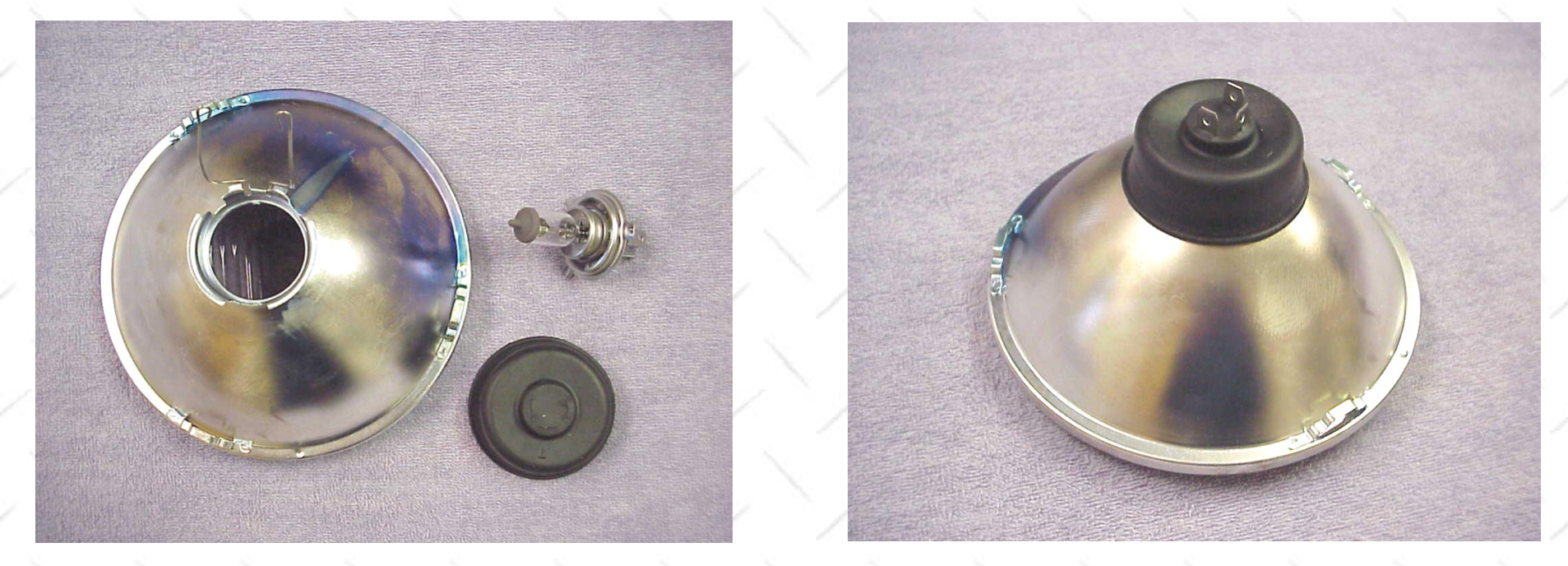

The kit plugs into the original bulb plug, then provides its own plug to the bulb.
The kit also has a connection the battery positive and ground.
When the bike powers a filament, the kit intercepts that power and uses it to energize the corresponding relay, which then feeds battery voltage to the corresponding filament of the bulb.
The hi-lo switch and RLU are still wired the same as stock and the only change is that the filament power now only powers the appropriate relay coil. This is a problem since the RLU will see the relay coil as a bad filament and assume the bulb is blown. Likewise, the RLU will also see the other filament as blown when it tries to switch over. SO the RLU will behave as if both filaments are blown. I'm not sure what the behavior will be, but it appears, from the symptoms, that the behavior is to just stay on one circuit rather than switching over to the other circuit, and to ignore hi-lo switch input.
It's also possible the RLU is defective in the first place. As DOHC suggests, it might be worth it to restore everything to stock and see if the RLU works correctly. I would even include a test to simulate a bad bulb and see if the RLU does in fact automatically switch over to the other filament. This can be done by unplugging one filament wire or the other.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- DOHC
- Offline
- Sustaining Member
- Those Doe-Hawks really go!
- Posts: 1284
- Thank you received: 548
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Please Log in or Create an account to join the conversation.
- DOHC
- Offline
- Sustaining Member
- Those Doe-Hawks really go!
- Posts: 1284
- Thank you received: 548
PDF?
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Please Log in or Create an account to join the conversation.
- DOHC
- Offline
- Sustaining Member
- Those Doe-Hawks really go!
- Posts: 1284
- Thank you received: 548
loudhvx wrote: The way the "kit" appears to work to me is: ....
Yes, I agree with everything you said. And I agree that adding the relay coils in place of the bulb is likely to be interpreted by RLU a failed filament, and it would try to activate the other filament (or both).
The PDF upload seems to have made it intact, so that should be clearer version.

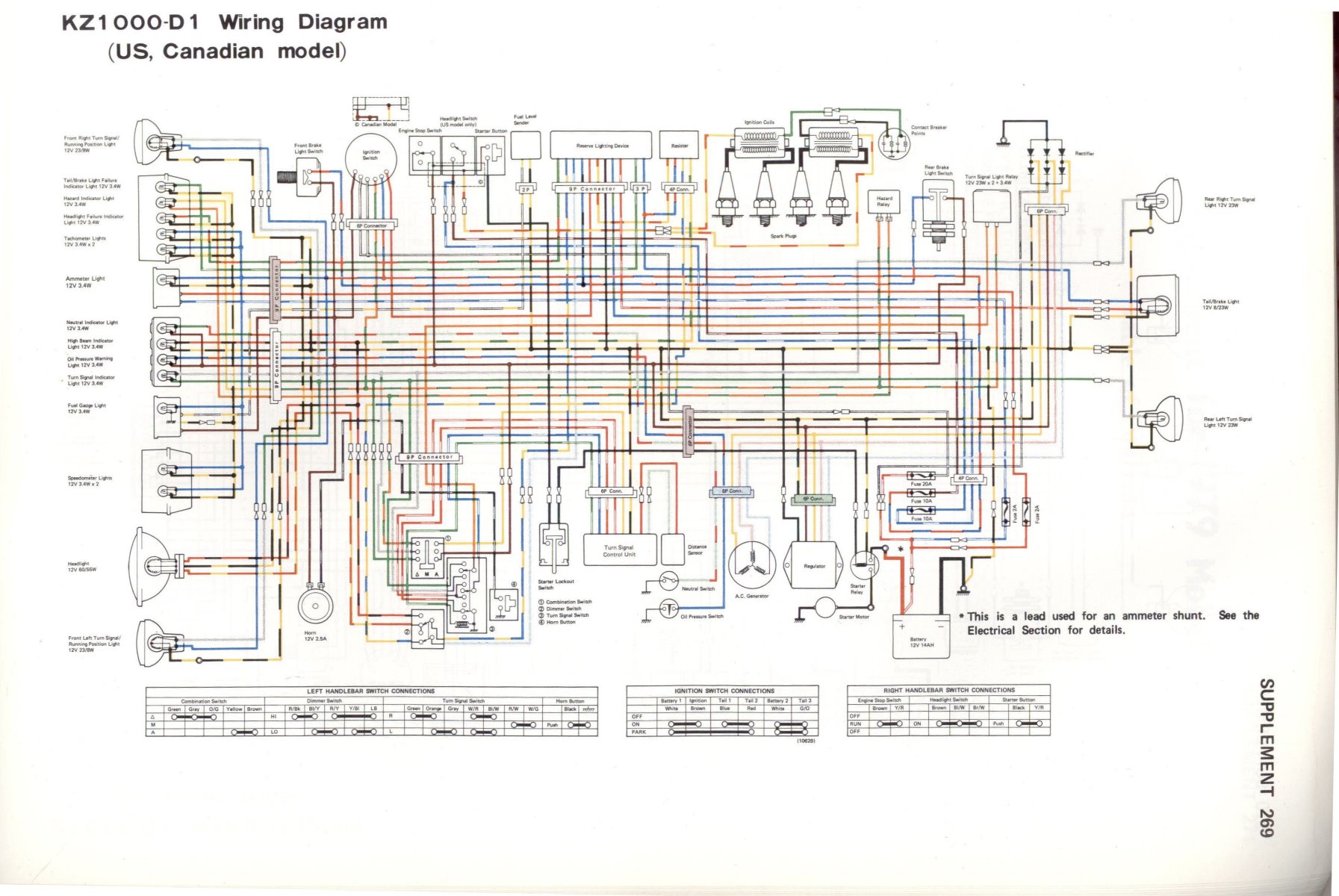

After looking at the diagram more carefully, I realize that I was mistaken. The resistor pack is used by the RLU when the dimmer switch is in the low beam position. In this case the resistor can connect the light blue wire from the RLU box to the high beam filament. However, with the switch in the high beam position, the light blue wire is now connected to the low beam, and the blue/yellow is connected to the high beam filament. It looks like the RLU box could then drive both filaments in this case, even with the resistor removed.
So it seems like, with the two aftermarket relays installed, and with the resistor pack unplugged, I would expect the low beam switch position to work as expected, but the high beam position to light both filaments.

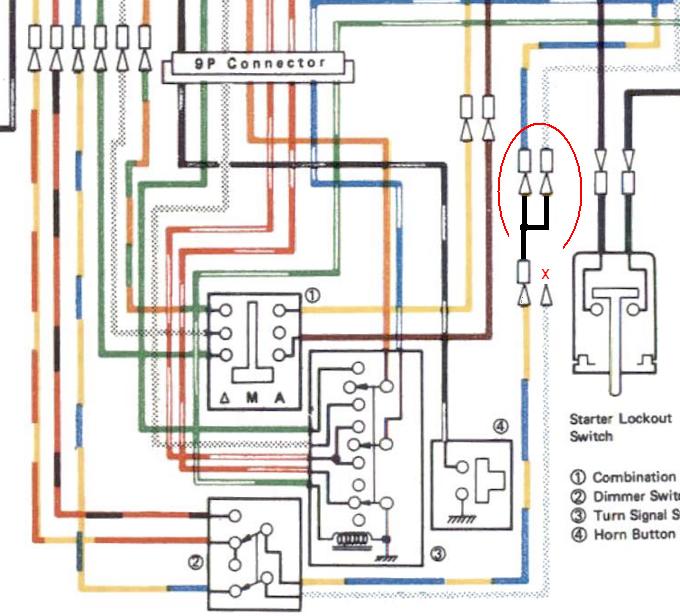

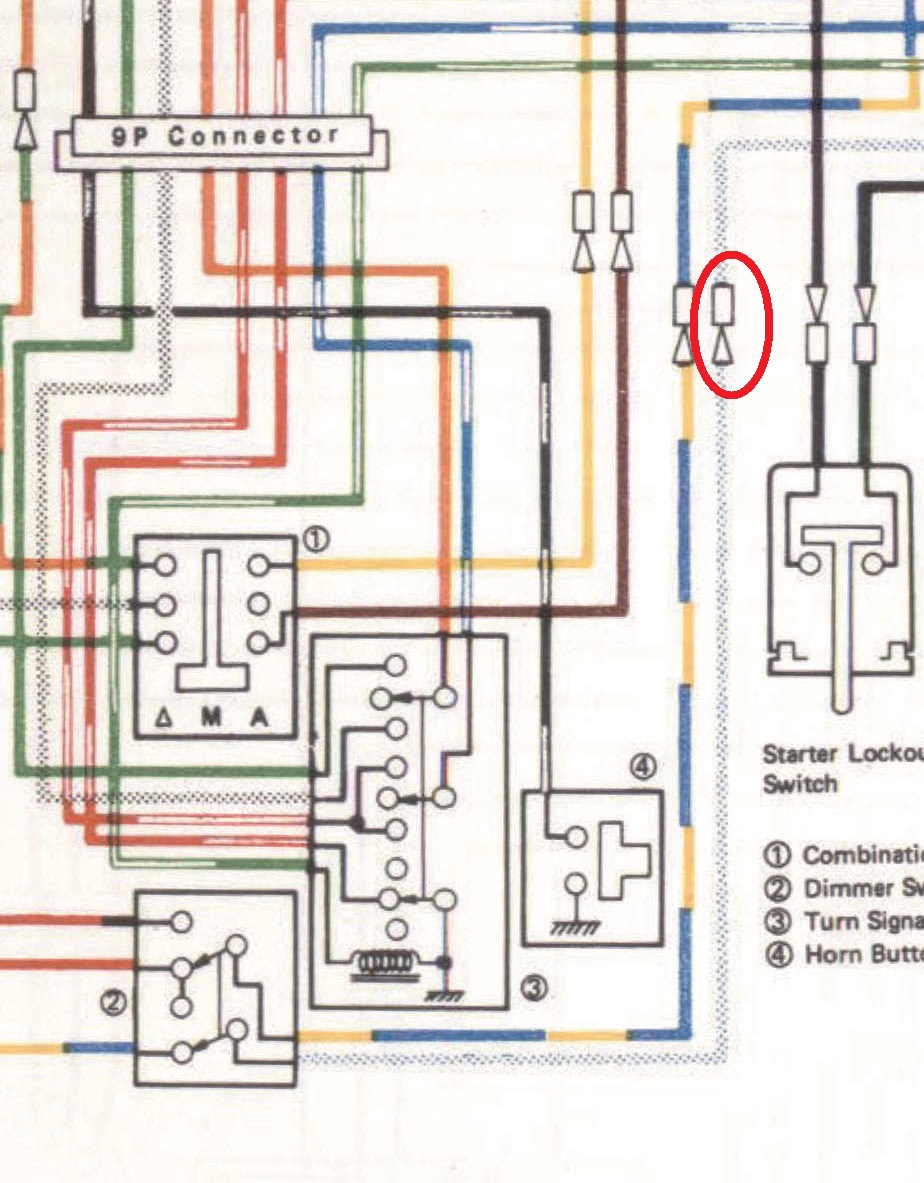

Here is another thing to try. The diagram shows a bullet connector for the light blue wire leading into the left handlebar control. I believe the left control wires go through the bars, come out at the top clamp, and then go down the left side of the tank. There is a hood on the left side just behind the steering head where I suspect you'll find this connector.
Anyway, I think if you disconnect the light blue wire the RLU will not be able to drive the alternate filament on. The RLU box might get grumpy, but I don't think it will be able to do anything about it (other than turning everything off, which seems unlikely). And with the light blue wire disconnected you should be able to plug the resistor pack back in.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4198
- Thank you received: 2068
Edit: DOHC is right, the site compress Images!
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
I played with the image a bit (less background noise and smaller footprint) but it still got shrunken.
So I will host it offsite for a while. EDIT It's the same file shown below.

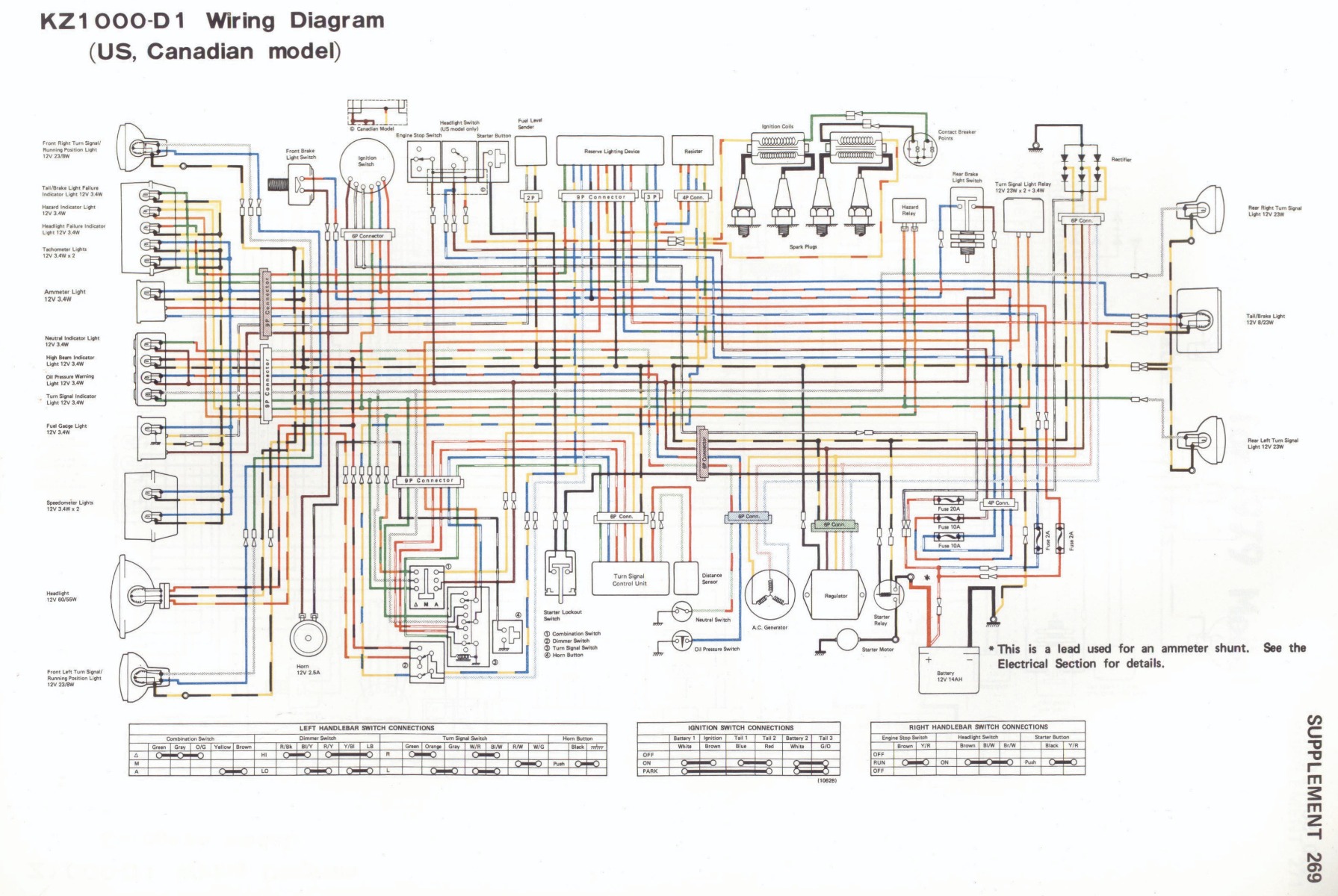

loudfiles.s3.amazonaws.com/KawKz1000D1_78_Z1R_cleanedLD.JPG
