H4 bulb? Which terminal is ground?

  • Kawidave
  • Kawidave's Avatar Topic Author
  • Offline
  • User
  • Posts: 40
  • Thanks: 3

H4 bulb? Which terminal is ground?

25 Oct 2019 07:14 - 25 Oct 2019 07:21
#812999

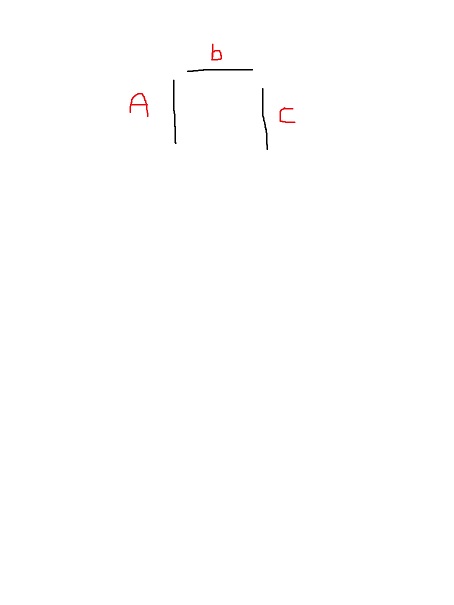

The best way I could diagram it. When looking at the bulb from the terminal side, which terminal is ground?

Attachments:

Last edit: 25 Oct 2019 07:21 by Kawidave.
The following user(s) said Thank You: Zedsded

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15343
  • Thanks: 2832

Re: H4 bulb? Which terminal is ground?

25 Oct 2019 07:44
#813000

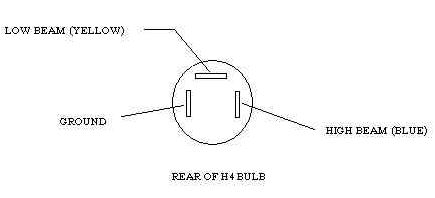

Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

The following user(s) said Thank You: Kawidave

Please Log in or Create an account to join the conversation.

  • Zedsded
  • Zedsded's Avatar
  • Offline
  • User
  • Posts: 12
  • Thanks: 3

Re: H4 bulb? Which terminal is ground?

13 Mar 2021 17:12
#844882
Thank you. That's just solved a long standing issue with my Z1B!
73 Z1
75 Z1B
