Relay mod for powering coils question...

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
03 Jul 2019 10:44 #806915 by Gdailey2112
Relay mod for powering coils question... was created by Gdailey2112
If I run a relay to (key on) power my coils, what should be done with the previous 2 factory red wires? Thanks!
1982 KZ1100D1

Please Log in or Create an account to join the conversation.

More
03 Jul 2019 16:40 #806926 by Nessism
Replied by Nessism on topic Relay mod for powering coils question...
I thought the idea was to use the red coil wires, which get switched power through the ignition switch, as the trigger to turn on the relay and feed power straight from the fuse box?
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: SWest

Please Log in or Create an account to join the conversation.

  • SWest
  • Offline
  • Sustaining Member
  • 10 22 2014
More
03 Jul 2019 19:17 #806932 by SWest
Replied by SWest on topic Relay mod for powering coils question...
On the larger fours it's yellow and red stripe.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

More
03 Jul 2019 21:31 - 03 Jul 2019 21:33 #806933 by Warren3200gt
Replied by Warren3200gt on topic Relay mod for powering coils question...

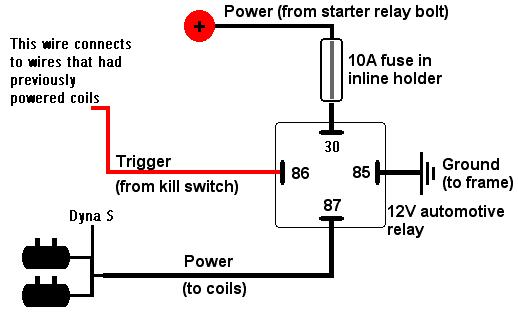

Connect to the wire drawn in red on the diagram below.
[img
[img
[img
[img
[img

Z1000J2 somewhat modified!
[img
