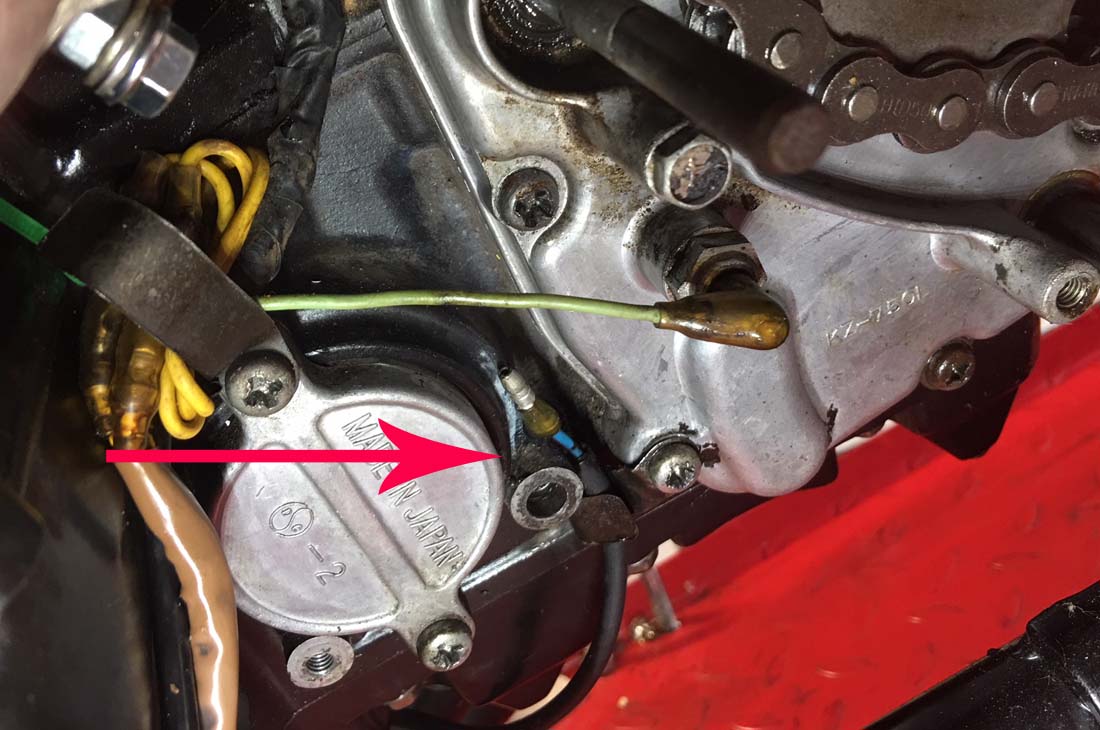

Where does this oil pressure elec wire connect to?
- chopper1963
- Topic Author
- Offline
- User
Less
More
21 Jun 2019 12:09 - 21 Jun 2019 12:10 #806213
by chopper1963
Where does this oil pressure elec wire connect to? was created by chopper1963
Last edit: 21 Jun 2019 12:10 by chopper1963.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4198
- Thank you received: 2068
21 Jun 2019 12:53 - 21 Jun 2019 12:54 #806218
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Where does this oil pressure elec wire connect to?
Could be the connector for the oil pressure switch but it Looks like more as a bullet connector for the oil level switch/sensor in the oil pan.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 21 Jun 2019 12:54 by Scirocco.
Please Log in or Create an account to join the conversation.
- chopper1963
- Topic Author
- Offline
- User
Less
More
- Posts: 206
- Thank you received: 37
21 Jun 2019 13:09 #806221
by chopper1963
Replied by chopper1963 on topic Where does this oil pressure elec wire connect to?
The wiring does originate on the oil switch under the bike but I don't know where that blue lead would plug into anything down there.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
21 Jun 2019 13:13 - 21 Jun 2019 13:29 #806223
by martin_csr
Replied by martin_csr on topic Where does this oil pressure elec wire connect to?
Did you try digging around that bundle of wires there in the pic? There should be a matching female bullet terminal w protective cover. From the wiring diagram there's a blue-red wire from the wire harness for the oil pressure switch. I can't tell from the pic, but maybe the po used electrical tape to wrap up & hide the wire & terminal for the pressure switch.
...
...
Last edit: 21 Jun 2019 13:29 by martin_csr.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4198
- Thank you received: 2068
21 Jun 2019 13:41 - 21 Jun 2019 13:43 #806226
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Where does this oil pressure elec wire connect to?

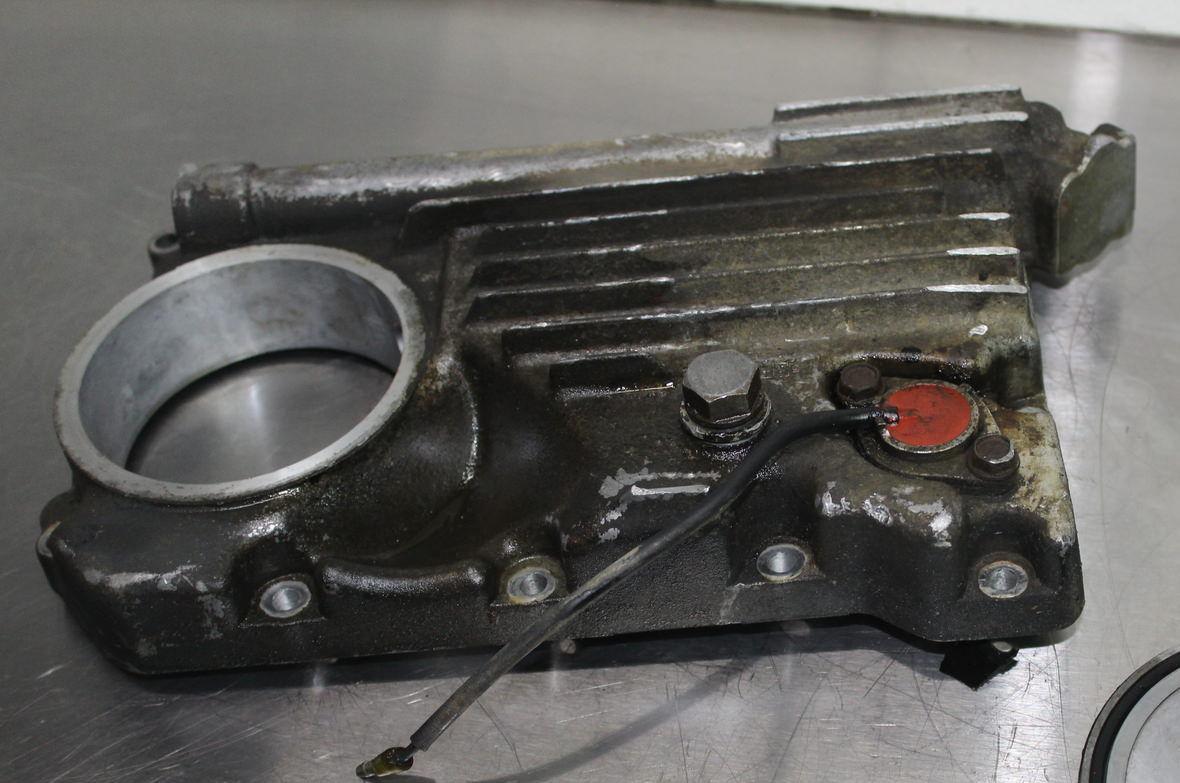

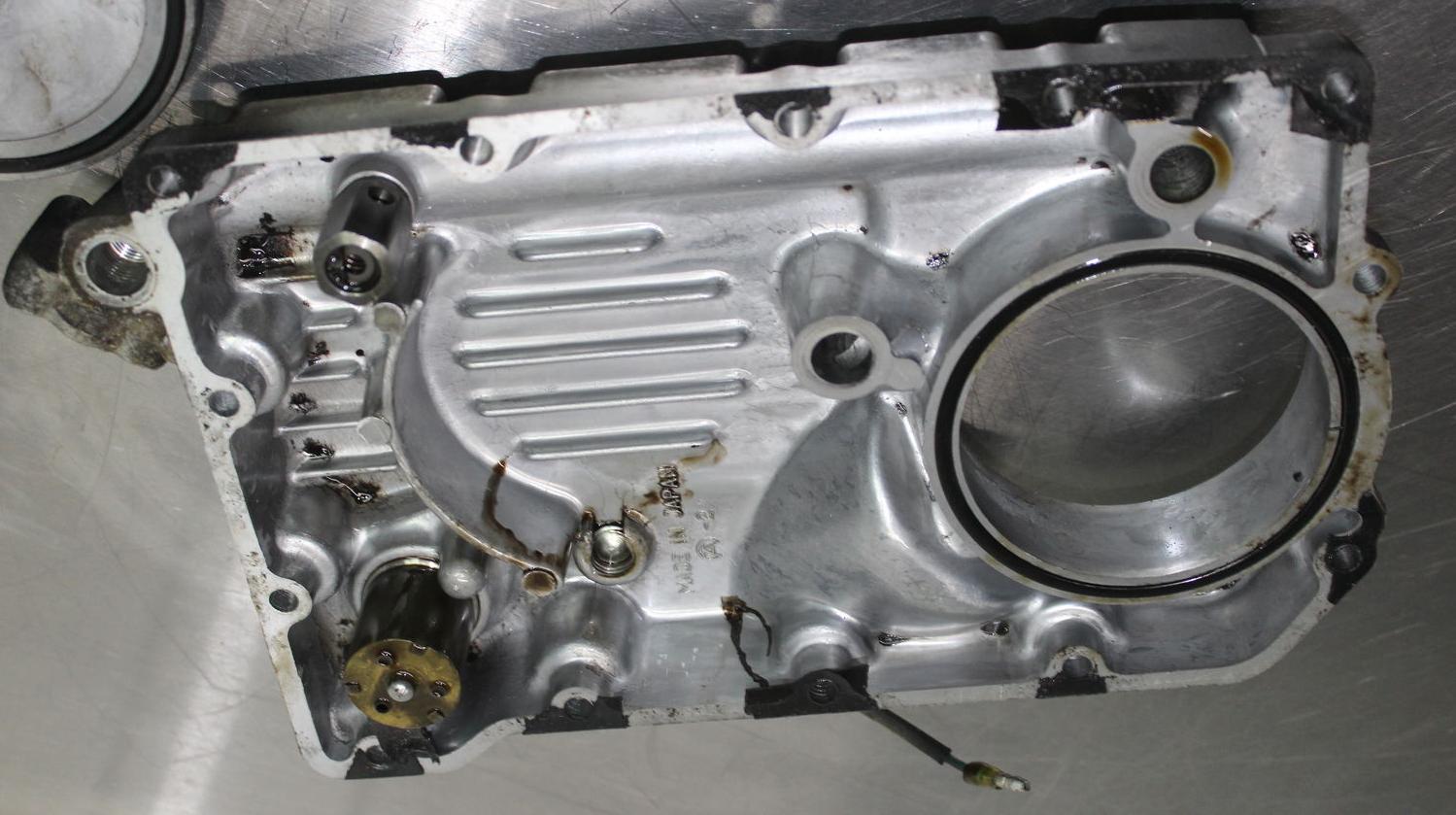

Get down to the floor and take a look on the oil pan.
s3.amazonaws.com/gpzweb/OilPans/Kz550oilPans.html
and please add your bike info to your Avatar/use profile please......
s3.amazonaws.com/gpzweb/OilPans/Kz550oilPans.html
and please add your bike info to your Avatar/use profile please......
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 21 Jun 2019 13:43 by Scirocco.
The following user(s) said Thank You: martin_csr
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
22 Jun 2019 07:13 - 22 Jun 2019 07:27 #806258
by martin_csr
Replied by martin_csr on topic Where does this oil pressure elec wire connect to?
Good pics. AAA+++ ... From one of his other topics, the motorcycle is an 81 GPz550 which should have a typical oil pressure switch, instead of the big oil level sensor. Either way, the wiring should be about the same, if not identical as both are located at the oil pan. If the protective cover is missing from the female bullet, I would get a replacement cover.
Neutral switch. if not done already, while the engine sprocket cover is off, you should clean up the neutral switch connection as it gets grungy, sometimes leading to a glitchy neutral light. My wire terminal didn't fit tight, so I crimped it a little with a good crimper.
...
Neutral switch. if not done already, while the engine sprocket cover is off, you should clean up the neutral switch connection as it gets grungy, sometimes leading to a glitchy neutral light. My wire terminal didn't fit tight, so I crimped it a little with a good crimper.
...
Last edit: 22 Jun 2019 07:27 by martin_csr.
