Dina pickup power wire
- bergerbut
- Topic Author
- Offline
- User
Less
More
03 Apr 2019 12:09 #801448
by bergerbut
Replied by bergerbut on topic Dina pickup power wire
Found a wiring diagrams for installation ;; dyna;;;
it matches my plan to pull power from a coil;;;
it matches my plan to pull power from a coil;;;
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
03 Apr 2019 13:02 - 03 Apr 2019 13:02 #801451
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Dina pickup power wire
Remember to check for an available un-used female bullet connector fitting on a brown wire somewhere from the harness, which may avoid any splicing by providing a quick clean connection for a male bullet on the wire that feeds battery positive voltage to the Dyna-S (such as on the '76 KZ900-B LTD). The factory wiring diagram should show any extra un-used brown wire female bullet connector that's available in the stock wiring.
Good Fortune!
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 03 Apr 2019 13:02 by Patton.
The following user(s) said Thank You: bergerbut
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
03 Apr 2019 13:42 - 03 Apr 2019 13:45 #801456
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic Dina pickup power wire

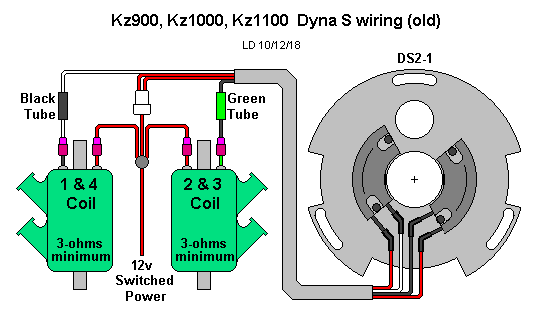

There are a few iterations of the Dyna S (small KZ's versus big Kz's) . This animation shows the minor differences in the wiring... mostly wire color and "tube" color.
www.kzrider.com/media/kunena/attachments/959/DynaSwiringANI.gif
www.kzrider.com/media/kunena/attachments/959/DynaSwiringANI.gif
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Last edit: 03 Apr 2019 13:45 by loudhvx.
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 3035
- Thank you received: 1090
03 Apr 2019 14:17 #801458
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic Dina pickup power wire
I would not take power from a coil. I do what Patton suggested. I use the brown wire on the headlight end of my wiring harness.
