Kz650 pink wire
- vict182
- Topic Author
- Offline
- User
Less
More
23 Oct 2018 03:12 #792712
by vict182
Kz650 pink wire was created by vict182
Hello everyone
Doing some maintenance to my kz 650 d4 also called SR. i have been told it is not so common and wasn't sold in the usa.
By the way it has few items stolen from other models, mostly from the kz750 4cyl.
For example rear disc brake, electronic ignition, etc.
My question is: i found a pink wire under the fuel tank, coming out from the main wiring harness. It has a connector. It seems it doesn't have any other connector around to match.
No mention of this cable in the wiring diagram
Anyone knows what is that for?
Thanks
Doing some maintenance to my kz 650 d4 also called SR. i have been told it is not so common and wasn't sold in the usa.
By the way it has few items stolen from other models, mostly from the kz750 4cyl.
For example rear disc brake, electronic ignition, etc.
My question is: i found a pink wire under the fuel tank, coming out from the main wiring harness. It has a connector. It seems it doesn't have any other connector around to match.
No mention of this cable in the wiring diagram
Anyone knows what is that for?
Thanks
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
23 Oct 2018 05:43 - 23 Oct 2018 06:33 #792716
by martin_csr
Replied by martin_csr on topic Kz650 pink wire
I don't know. I'm assuming it has a plastic connector. What type of connector is it? 1-pin, 4-pin or what? Are there any other wires going to it.
Some possibilities: battery sensor wire (pink wire is found on the 750R models). passing light or distance sensor (non-US models).
Kawasaki KZ650 service manual. jarlef z650. the 1981 KZ650 pdf is in the Files section.
In case your motorcycle shares any electrical components with the 750-4, the 750 manual may have more in-depth information.
KZ750 Manual. 750turbo.com --- Index. 1980-84 750-4 & KZ700. 1983-85 ZX750. pdf manual link near the bottom of the list.
yellow/gold cover w color wiring diagrams. get the one listed as ->> GPz750 Base Manual.pdf. good scans.
The one that says full english is a poorly copied version. all files except the last one should be pdfs (not exe).
I don't know if they'd be much help, but these 750-4 wiring diagrams are easier to read than the 81 KZ650 pdf.
note: the 750-R1 has a pink wire for the battery sensor.
Wiring diagrams. mbsween. bike-night. KZ750L3. Scroll down & click "The Bible" link.
the site has wiring diagrams & that poorly copied 750-4 pdf manual.
Note: some of the wiring diagrams are mislabeled in the links: the 1981 Ltd is an H2, the 82 is an H3, & the 83 is an H4.
....
Some possibilities: battery sensor wire (pink wire is found on the 750R models). passing light or distance sensor (non-US models).
Kawasaki KZ650 service manual. jarlef z650. the 1981 KZ650 pdf is in the Files section.
In case your motorcycle shares any electrical components with the 750-4, the 750 manual may have more in-depth information.
KZ750 Manual. 750turbo.com --- Index. 1980-84 750-4 & KZ700. 1983-85 ZX750. pdf manual link near the bottom of the list.
yellow/gold cover w color wiring diagrams. get the one listed as ->> GPz750 Base Manual.pdf. good scans.
The one that says full english is a poorly copied version. all files except the last one should be pdfs (not exe).
I don't know if they'd be much help, but these 750-4 wiring diagrams are easier to read than the 81 KZ650 pdf.
note: the 750-R1 has a pink wire for the battery sensor.
Wiring diagrams. mbsween. bike-night. KZ750L3. Scroll down & click "The Bible" link.
the site has wiring diagrams & that poorly copied 750-4 pdf manual.
Note: some of the wiring diagrams are mislabeled in the links: the 1981 Ltd is an H2, the 82 is an H3, & the 83 is an H4.
....
Last edit: 23 Oct 2018 06:33 by martin_csr.
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
23 Oct 2018 06:17 #792719
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Kz650 pink wire
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- vict182
- Topic Author
- Offline
- User
Less
More
- Posts: 65
- Thank you received: 0
23 Oct 2018 06:47 #792720
by vict182
Replied by vict182 on topic Kz650 pink wire

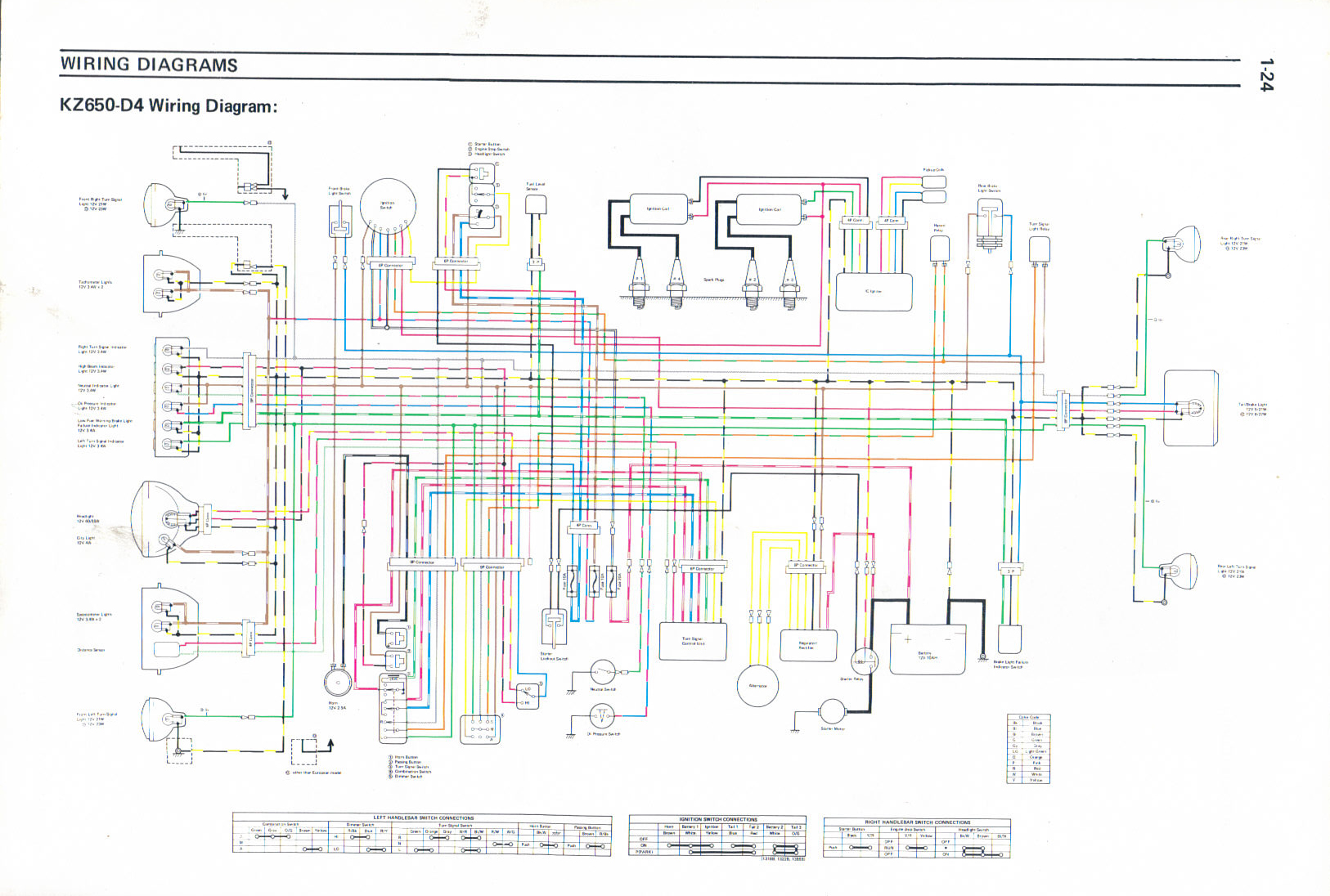

I have this diagram for the kz650d4 model. No pink wires. What seems pink in this diagram, is actually red.
I will look into the voltage sensor thing. It seems to be what i was looking for
Thanks a lot!
I will look into the voltage sensor thing. It seems to be what i was looking for
Thanks a lot!
Please Log in or Create an account to join the conversation.
- vict182
- Topic Author
- Offline
- User
Less
More
- Posts: 65
- Thank you received: 0
23 Oct 2018 11:44 #792727
by vict182
Replied by vict182 on topic Kz650 pink wire
I must apologize
Ed, in the diagram you posted, i can see that pink wire coming out of the brown main wire, connecting to nothing
I didn't find it when i searched on the kz650 d4 diagram myself. My bad
I found it also in the diagrams that Martin suggested. Also some versions of the 750 have this pink wire connected to nothing
Go figure
Good news there is nothing wrong with my motorbike
Thanks to you both!
Ed, in the diagram you posted, i can see that pink wire coming out of the brown main wire, connecting to nothing
I didn't find it when i searched on the kz650 d4 diagram myself. My bad
I found it also in the diagrams that Martin suggested. Also some versions of the 750 have this pink wire connected to nothing
Go figure
Good news there is nothing wrong with my motorbike
Thanks to you both!
Please Log in or Create an account to join the conversation.
- OKC_Kent
- Offline
- User
Less
More
- Posts: 1718
- Thank you received: 20
25 Oct 2018 10:50 #792822
by OKC_Kent
Oklahoma City, OK
78 KZ650 B2 82,000+ miles
Replied by OKC_Kent on topic Kz650 pink wire
I think the wire is just a powered accessory lead.
Oklahoma City, OK
78 KZ650 B2 82,000+ miles
Please Log in or Create an account to join the conversation.
- gordone
- Offline
- Sustaining Member
Less
More
- Posts: 1377
- Thank you received: 67
26 Oct 2018 00:03 #792850
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Replied by gordone on topic Kz650 pink wire
I have 81 sr 650cc, cannot rember to seen pink wirer.... can it be some custom wiring?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
26 Oct 2018 06:05 #792851
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic Kz650 pink wire
It is in the diagram. It doesn't connect to anything. It is switched 12v power, so like OKC says, it's probably for accessories.gordone wrote: I have 81 sr 650cc, cannot rember to seen pink wirer.... can it be some custom wiring?
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
