wiring to the coils was created by KZ802
Hi All,
I have a 1976 KZ900 A4. what is the color of the wiring to the coils, from left to right? It is something like black, yellow, green, yellow? I don't remember how I have it wired, I'm going off the top of my head. My bike was running very poorly. now won't start. I unplugged the coil wires while testing voltage to different points and don't remember what they were originally. I have the factory service manual and a clymer. I can't find anywhere that says how to wire the coils. Maybe it doesn't matter? I don;t see any marks on the coils to say which is the trigger wire....
I have a 1976 KZ900 A4. what is the color of the wiring to the coils, from left to right? It is something like black, yellow, green, yellow? I don't remember how I have it wired, I'm going off the top of my head. My bike was running very poorly. now won't start. I unplugged the coil wires while testing voltage to different points and don't remember what they were originally. I have the factory service manual and a clymer. I can't find anywhere that says how to wire the coils. Maybe it doesn't matter? I don;t see any marks on the coils to say which is the trigger wire....
1980 KZ750 LTDx2
1978 KZ1000 LTD
1976 KZ900 A
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
23 Sep 2018 19:39 - 23 Sep 2018 19:42 #791332
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic wiring to the coils
Take a look at the KZ900-A4 wiring diagram in the link below. It looks like the coil for cylinders 1&4 have a red/yellow wire from the kill switch and a green wire from the points, and the coil for cylinders 2&3 have a red/yellow wire from the kill switch and a black wire from the points. Ed
www.dotheton.com/forum/index.php?action=...;attach=186086;image
www.dotheton.com/forum/index.php?action=...;attach=186086;image
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Last edit: 23 Sep 2018 19:42 by 650ed.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
24 Sep 2018 06:39 - 20 Oct 2018 17:28 #791347
by Patton
1973 Z1
KZ900 LTD

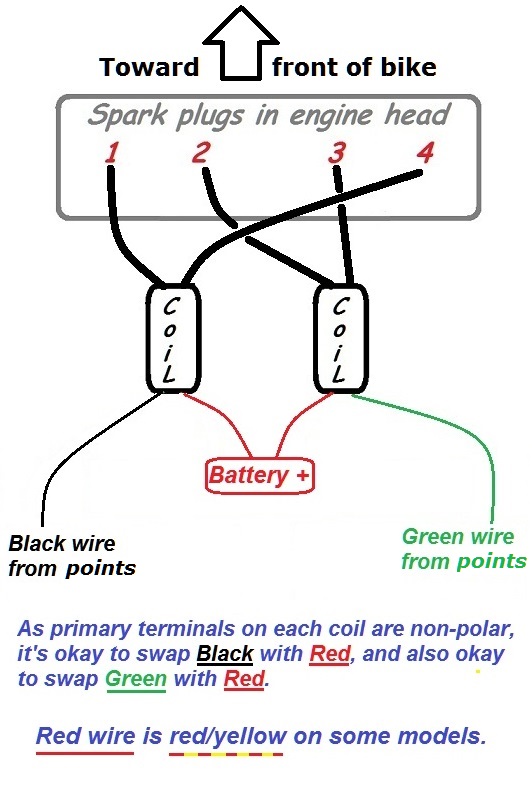

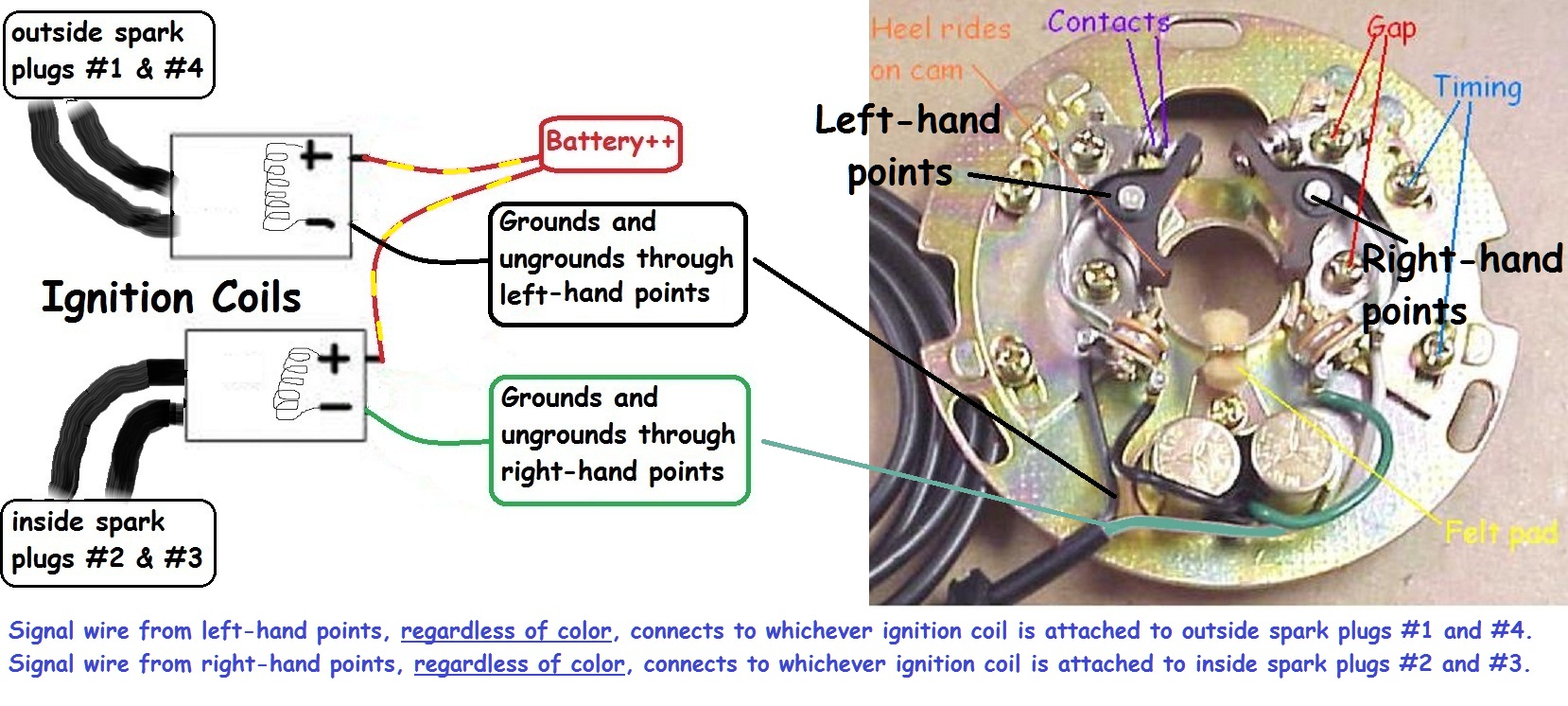

Replied by Patton on topic wiring to the coils
1973 Z1
KZ900 LTD
Last edit: 20 Oct 2018 17:28 by Patton.
The following user(s) said Thank You: loudhvx, KZ802
Please Log in or Create an account to join the conversation.
- KZ802
- Topic Author
- Offline
- User
Less
More
- Posts: 157
- Thank you received: 13
20 Oct 2018 17:22 #792621
by KZ802
1980 KZ750 LTDx2
1978 KZ1000 LTD
1976 KZ900 A
Replied by KZ802 on topic wiring to the coils
Thank you Patton, that's what I was looking for. I could not find + or - symbols anywhere on the coils so I was hoping it didn't matter....
