Is this what a fried connection looks like? What would cause this?
- JoeyCrush
- Topic Author
- Offline
- User
Less
More
11 Aug 2018 19:28 - 11 Aug 2018 19:29 #788692
by JoeyCrush
1980 KZ550A
Chicago, IL
Is this what a fried connection looks like? What would cause this? was created by JoeyCrush

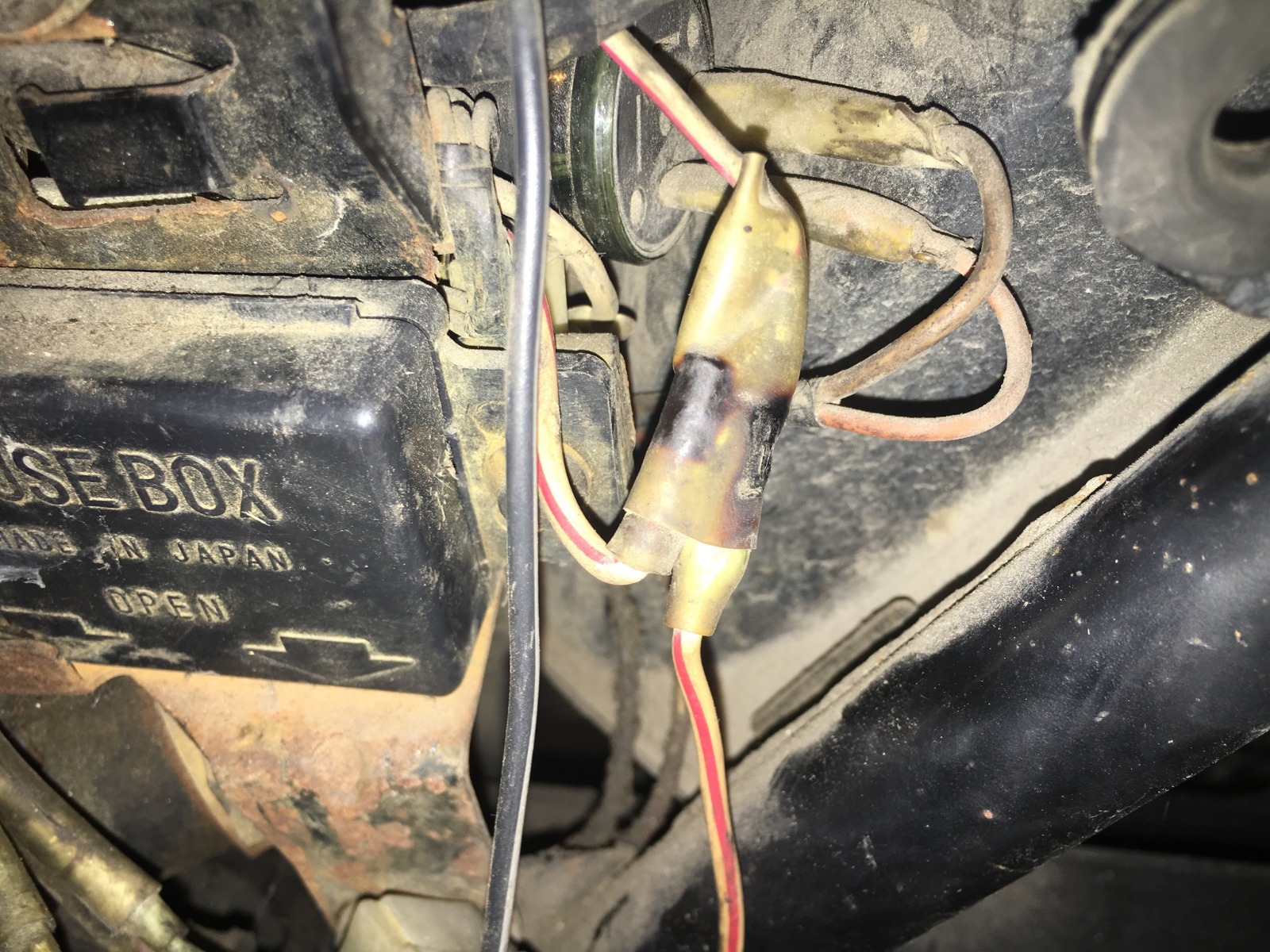

I'm currently working through replacing my single phase stator with a triple phase stator and replacing my regulator rectifier when I noticed the connection below. The left white/red wire is connected to the battery and the right white/red wire is connected to the reg/rec.
It appears to have been burned - am I correct? This might explain why the regulator rectifier was toast.
What would cause this? Should I be looking to replace something else in my electrical system?
It appears to have been burned - am I correct? This might explain why the regulator rectifier was toast.
What would cause this? Should I be looking to replace something else in my electrical system?
1980 KZ550A
Chicago, IL
Last edit: 11 Aug 2018 19:29 by JoeyCrush.
