Kz1100 cdi testing?

Recently put a bunch of hours into an 82 1100. Rewired everything got it running. (Carbs throttle fuel etc..) fired it up and throttle stuck. I yanked out the big hot to starter coil and acc. Hooked everything back up and now I have no spark.

Pickup coils @ 480Ω each

Ign coils. 4-5Ω and 8Ω on starboard side

Ign coils 3 primary (small wires) are 12v top right ign coil wire is 2.6 v even while cranking.

Stator yellow wires read .12v and 4v cranking
Spark plug wire are 5kΩ
Black and yellow wire on cdi reads 12v?

I had .02v on all my grounds so I just cut bl/y cdi wire.

Not sure what to do. The wiring is tight Im just not sure where it goes. Any help would be appreciated.

Why does bl/y (ground?) have 12v?
Why does too right coil wire 1 of have 2.4v instead of 12v like the rest?

My bobo schematic

Bike

If you have 12v on the large balck/yellow wire, then the igniter is not grounded. It won't work without a ground.

Also, your diagram doesn't show where you are getting power from. The coils and igniter need power. You said there's 12 v on those wires, so it's probably hooked up, but the diagram doesn't show it. Power for those things usually comes from the kill switch. You show the kill switch routing power to something in the upper right corner. Are those lights?

As a side note, your diagram shows the regulator/rectifier having a brown wire, but you have it cut going nowhere. That will fry your whole electrical system if you let the bike rev up for too long. The brown wire is what the regulator senses to control the output voltage of the rectifier. Without it, the full power of the stator will be fordumped into the battery and electrical system.

The start button and kill switch wiring are puzzling. The way you have it shown, the kill switch only gets power when the start button is pressed.

I think you are right with the power only when starter is pressed. I made a better diagram for starter.
Where does brown rectifier wire go?
Where does IC igniter bl/y wire go? Is this ground? (On starter coil?)
Where does yellow wire on kill switch go?
Where does black wire on kill switch go?.

It did rev high af for 3 seconds after idle for 6 seconds. I didnt have kill switch throttle stuck I just ripped the main hot off as it wasnt on there great. I hooked everything up the way it was and got no spark.
May have cooked it.
I am tempted to just rewire from one of many schematics ive seen here.
May also break down and get dyna and coil kit if I can reliably test ic ignitor w my digital multi.
Any help is truly appriciated.

Diagram

The bike.

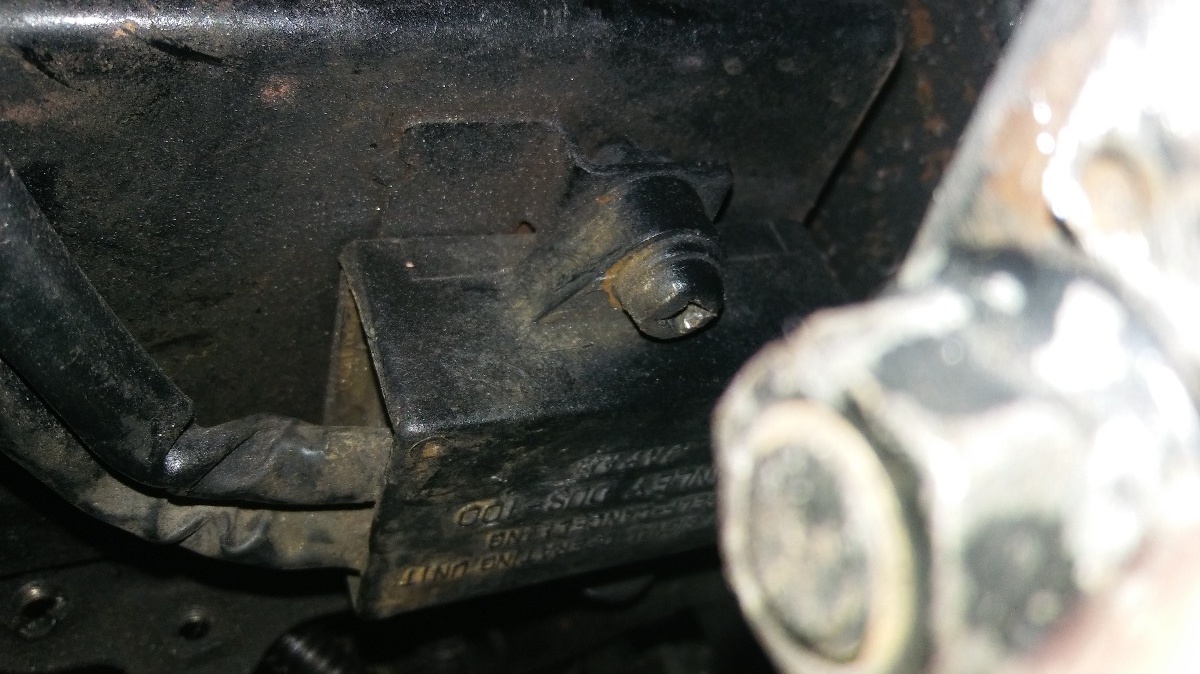

I found another ic igniter under bike. It has different color wires going to try to test con nectors now and possibly hook this one up

If I rewire it I may use this diagram.

Page 16 of the Mattylight thread has a bare bones diagram for an 82 Kz1100D1 Spectre. That might be the same as your bike?
www.kzrider.com/forum/4-electrical/17274...mattylight?start=300

I don't think 3 seconds would fry anything with the brown wire disconnected. The diagram in the link shows how the brown wire should be connected.

If the stock ignition (BTW, it's not CDI) works, it's more efficient than the Dyna S.

The other box might be a reserve lighting unit or turn signal control unit. I don't think that era of bike had plastic housing igniters.

Broke down and ordered the whole dyna 2000 shooting match.
Hopefully get it installed this week.
Thanks for the advice loud

lowkeyfilmz wrote: Broke down and ordered the whole dyna 2000 shooting match.
Hopefully get it installed this week.
Thanks for the advice loud

Wow, that sounds expensive. Perhaps spring for one of the aftermarket wiring harnesses too?

Loudvhx posted a link to a pretty nice bare bones wiring diagram he made. I would spend more time diagnosing the ignition, and cleaning up the wiring before I tossed more money at this project. Just sayin.

I don't see any fuses in your drawing.

There is an entire ignition troubleshooting section in the service manual.

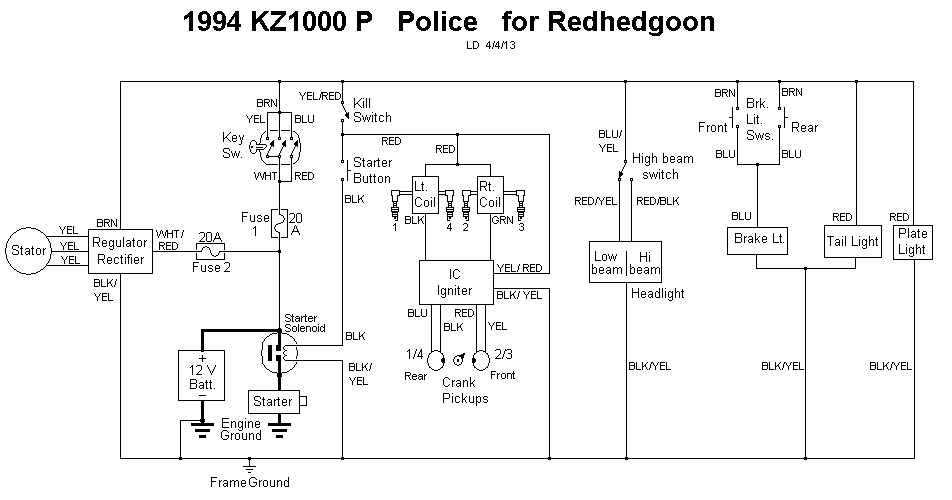

I have not tried wiring a bike with this diagram, but it looks pretty complete to me. it even has fuses. This guy is GOOD!



My wiring prior to cleaning when I was restoring my 37 year old Kaw.
