Hello again. It seems this winter is bringing me into the world of Kawasaki lol.
Another one has rolled, or I should say carried piece by piece, into my shop. A 1976 KZ650. Parts have been cut off and misplaced over the years and I'm left with most of the frame, front end and engine. Seems like a good base for another custom. My question is, where do I find a wiring diagram for this girl? A bit of research indicates there might be a difference in the charging system for a 76. All the available manuals only seem to go back to 1977. All I need at the moment really is the basic wiring for the charging and ignition.
Thx for any help you can give.
Pics in the way soon.
Another one has rolled, or I should say carried piece by piece, into my shop. A 1976 KZ650. Parts have been cut off and misplaced over the years and I'm left with most of the frame, front end and engine. Seems like a good base for another custom. My question is, where do I find a wiring diagram for this girl? A bit of research indicates there might be a difference in the charging system for a 76. All the available manuals only seem to go back to 1977. All I need at the moment really is the basic wiring for the charging and ignition.
Thx for any help you can give.
Pics in the way soon.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4198
- Thank you received: 2067
03 Nov 2017 12:52 - 03 Nov 2017 12:53 #774167
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic 1976 KZ650
take a look into the service manual, page #220 and 221 for the KZ650 B1 1976-77
www.kzrider.com/modules/ServiceManuals/K...Service%20Manual.pdf

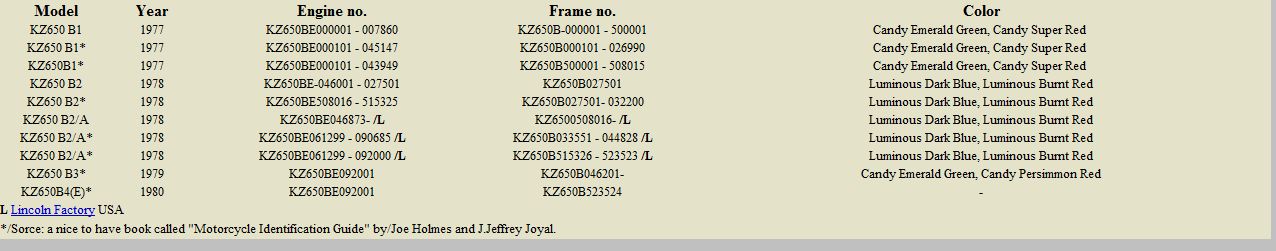

Check your frame and engine #
