Need some help
- 78KZkid
- Topic Author
- Offline
- User
1978 kz650
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
And it would be a much better practice to run ground wires for the regulator/capacitor/ignition rather than relying on the frame and engine for ground. Points can use the engine as ground, but anything electronic does better with dedicated ground wires (in addition to grounding the engine and frame).
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- 78KZkid
- Topic Author
- Offline
- User
- Posts: 59
- Thank you received: 7
There are only 3 wires inside the ignition cover, green and black for the points and blue/red for the oil pressure switch.
1978 kz650
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
78KZkid wrote: Thanks loud,
There are only 3 wires inside the ignition cover, green and black for the points and blue/red for the oil pressure switch.

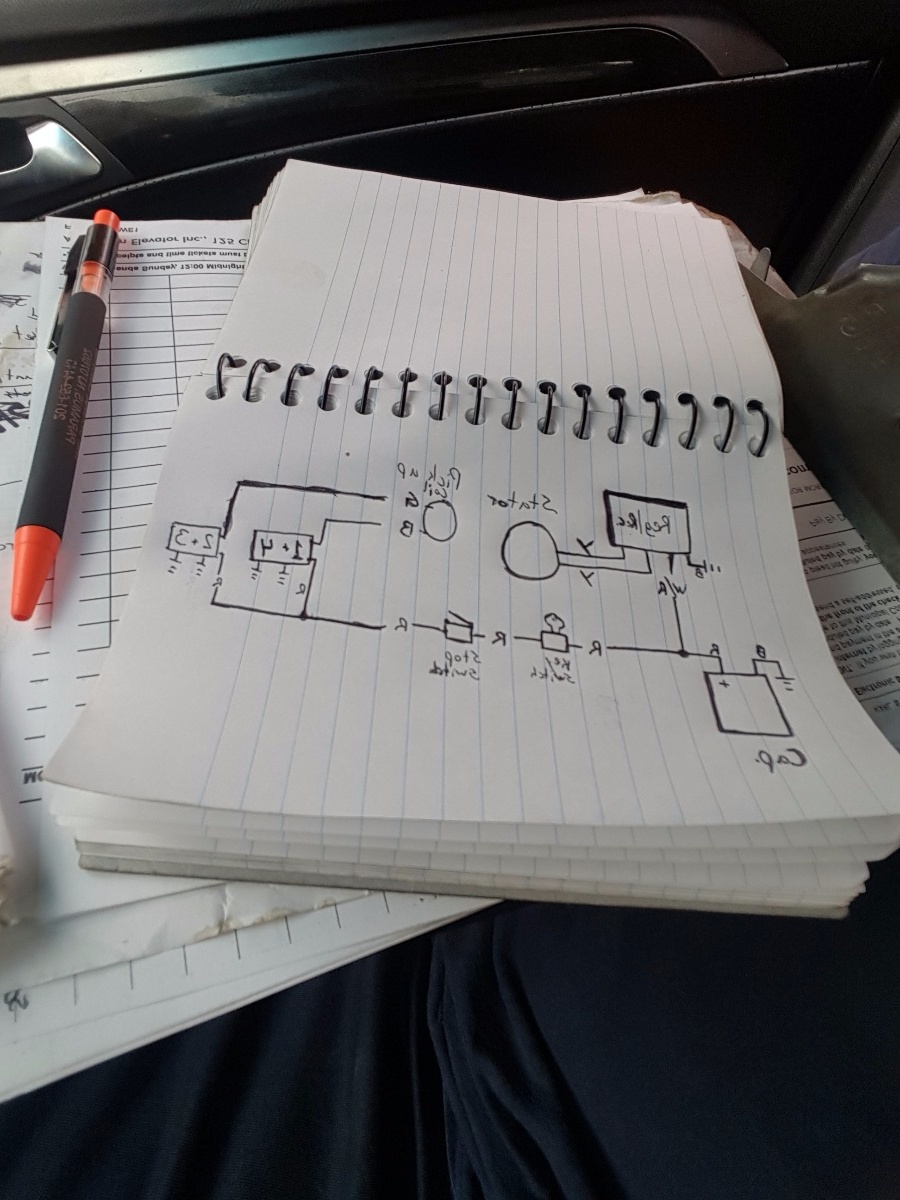

Ok, so you don't have pickups, you have points. you should probably label that as "breaker points" to avoid confusion. You should also show a ground symbol to show that the breaker points are connected to ground. Then it is important to have a ground wire, somewhere from the capacitor's negative terminal to the engine and frame ground.
You should also run a dedicated wire from the regulator ground to the capacitor's negative terminal.
Be aware, you will not be able to start the bike with headlights on. You have to start the bike, then rev it, then turn on the lights while the engine RPMs are high. Turning the lights on causes a brief short while the filaments heat up. The engine RPMs will drop during this time, and when the filaments light up, the voltage will return to resume running the bike.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- 78KZkid
- Topic Author
- Offline
- User
- Posts: 59
- Thank you received: 7
Can I wire them as I have them drawn
1978 kz650
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Yes.78KZkid wrote: Ok and how should I wire the switches?
Can I wire them as I have them drawn
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- 78KZkid
- Topic Author
- Offline
- User
- Posts: 59
- Thank you received: 7
1978 kz650
Please Log in or Create an account to join the conversation.
- 78KZkid
- Topic Author
- Offline
- User
- Posts: 59
- Thank you received: 7
-points green, black and blue/red (oil pressuse)
-reg/rec 2 yellow, white/red and black
-dyna 3 ohm coils
No starter/ relay, kick only
Im so bad with electrical as far as knowing what readings i should be seeing on a meter, if anyone could give me a few test to do so I could check why im not getting spark. At this point im thinking about getting to dyna s ignition because it seems to be pretty straight forward and it's not expensive. Any help is appreciated, thanks in advance.
1978 kz650
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
However, points might wear faster with the 3-ohm coils. Normally points should use 4 or 5 ohm coils.
But it should work for a least a while.
Because you don't have a voltage source when the motor is not running, you can set up points with an ohm meter, instead of a volt meter. The key is to put a piece of paper in the set of points you are not adjusting.
Or you can just disconnect the black and green wires at the coils. Even with a battery, this is a better way to set up points so the coils don't get hot, and you leave the bike turned off.
With the ohm meter, you will have continuity to ground when the points are closed, and no continuity when they are open. They should open when the "f" mark lines up.
Continuity is with the meter set to lowest ohm scale, and it should read near zero. Open is when the meter reads the same as when the meter is not connected. The screen may just show a "1" in the far left digit, or something odd to show there is infinite resistance.
You measure from where the coil wire connects to the points and the engine ground.
Ed or Patton or Martin probably have good images of what the 650 points should look like.
You can ignore the oil pressure light if you are not going to use it.
You don't have anything else connected, except what you show in the first diagram, correct? If you added lights, that could explain the no spark.
