Ignition problems z750e -81
- LaRzOn
- Topic Author
- Offline
- User
Im posting this here to see if you can solve my mystery......
About 6 months ago i bought a z750e really cheap because i" did not run on all cylinders" (as it said in the advert). the guy who sold it had tried to get it fixed at some local motorbike repair-guy who had changed the pickup coils but he did not get it running and said it only runs on two cylinders.
When i got the bike home and tried starting it it did not run at all and "backfired" really bad in to the carbs.
i sat down and started redaing on the internet for solutions, after a while i came across a document that decribed the whole ignitionsystem and how it works.

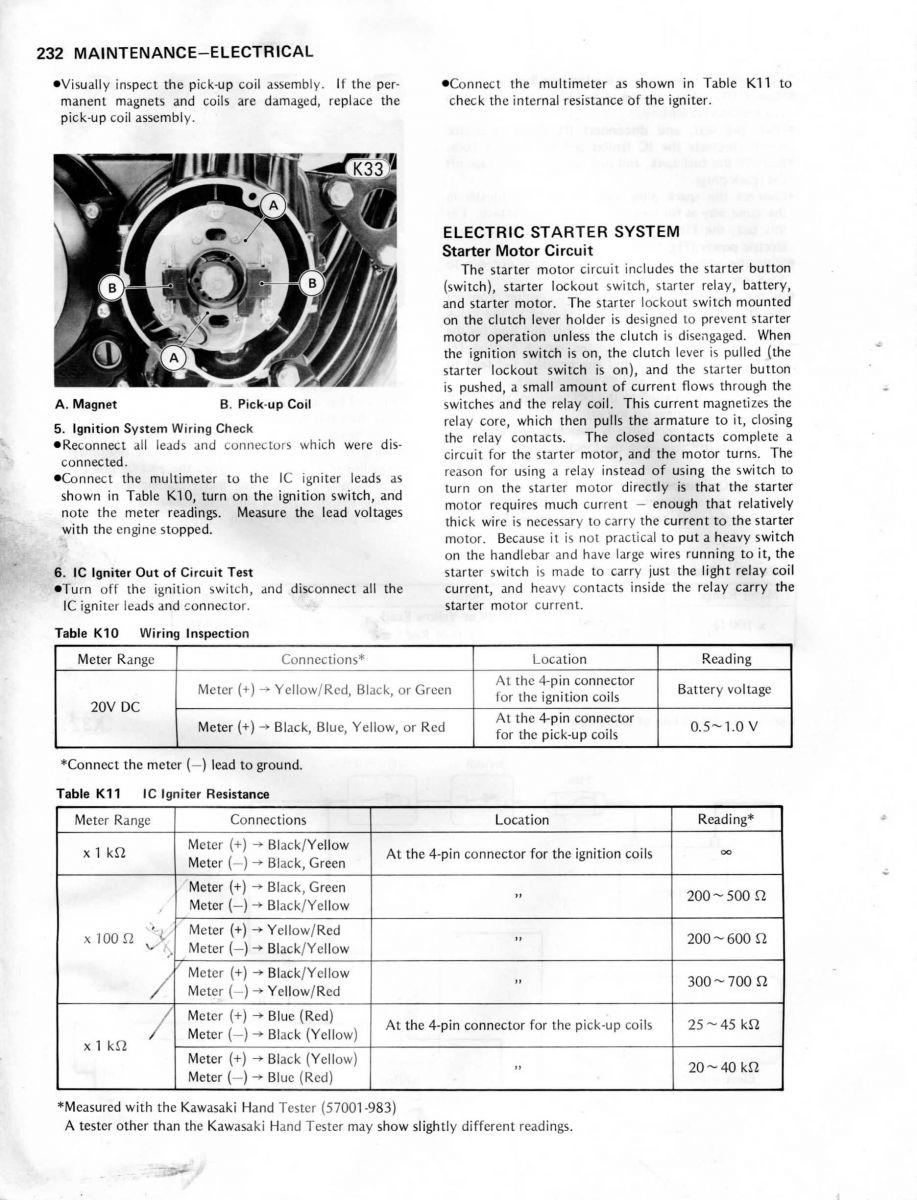

This page said something about magnets behind the pickup coils and that you can put them the wrong way........hmmm
If you put ONE of them wrong the signal to the CDI will be weak.........
If you put both of them wrong the signal will be changed 180 degrees (+ and - will change).......hmmm.......maybe thats it!´(i thought)
Went out in the garage end swapped theese magnets (who were mounted correct accoring to the document) and the bike started !!
My question is, how can it be that way that i have to put the magnets wrong to get the bike running..........what else is wrong to cause this?
Can you give me any tips?
(excuse my strange writing, im from Sweden)
Kawasaki GT550 -83
Kawasaki z750e -81
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4198
- Thank you received: 2067
You have to swap the picup coils or the electric connectors and not the magnet.
The so called repair guy do it wrong.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- LaRzOn
- Topic Author
- Offline
- User
- Posts: 6
- Thank you received: 0
Easy fix if that´s the only problem.....
Kawasaki GT550 -83
Kawasaki z750e -81
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4198
- Thank you received: 2067

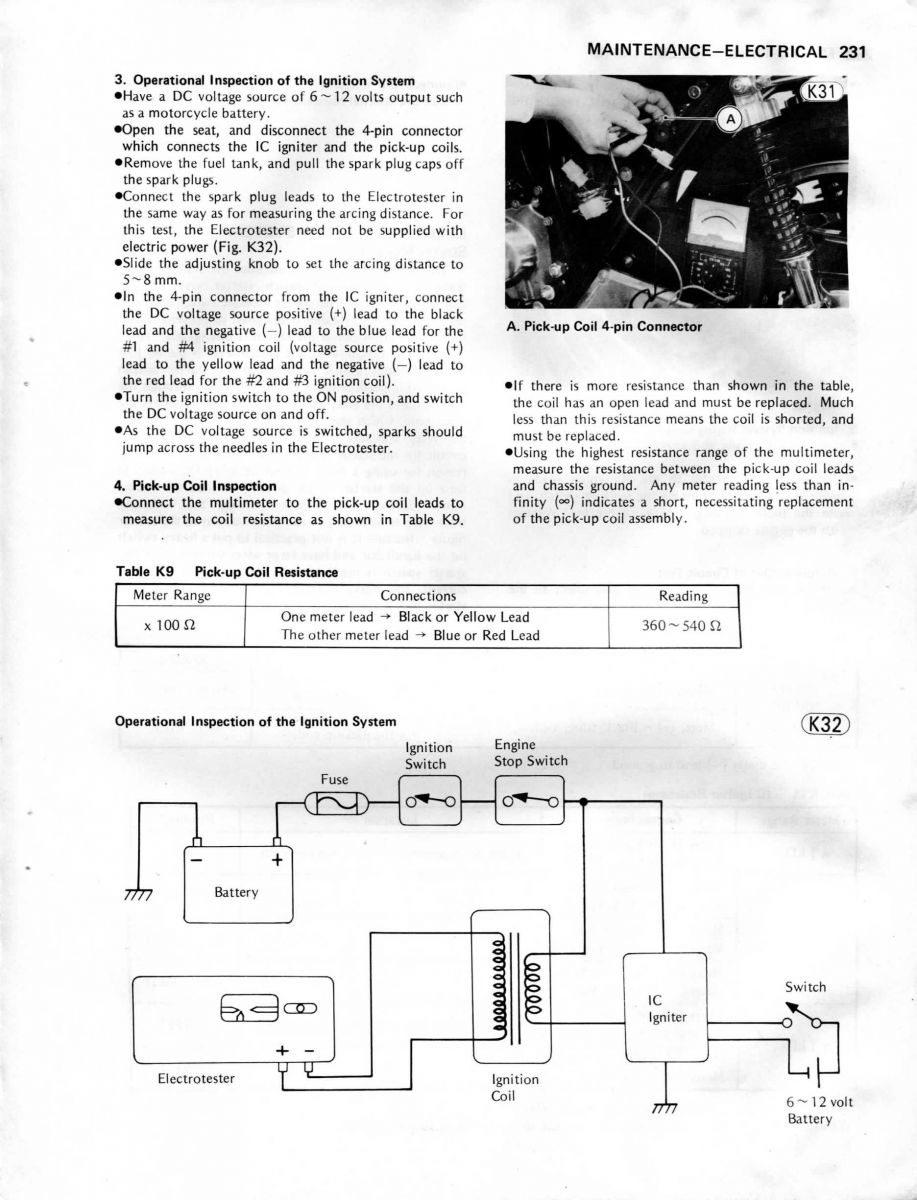

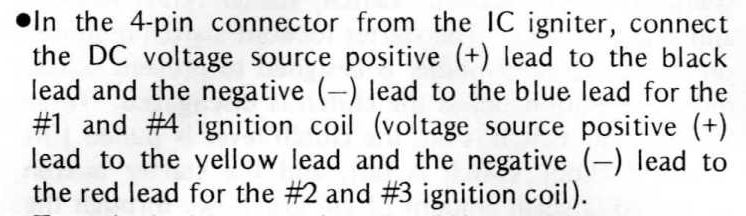

I am not sure about the 4-pin connector but i think you have to swap the picups to get your system as it should.
Michael
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
The white stripes and dots from the factory are not consistent.
s3.amazonaws.com/gpzweb/Ignition/PickupA.../PickupAndRotor.html
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- LaRzOn
- Topic Author
- Offline
- User
- Posts: 6
- Thank you received: 0
loudhvx wrote: How did you check the magnet polarity? What was your reference magnet? Or did you use a meter?
The white stripes and dots from the factory are not consistent.
s3.amazonaws.com/gpzweb/Ignition/PickupA.../PickupAndRotor.html
I just swapped them around to see if anything happends.......and the bike started right away....
Kawasaki GT550 -83
Kawasaki z750e -81
Please Log in or Create an account to join the conversation.
- LaRzOn
- Topic Author
- Offline
- User
- Posts: 6
- Thank you received: 0

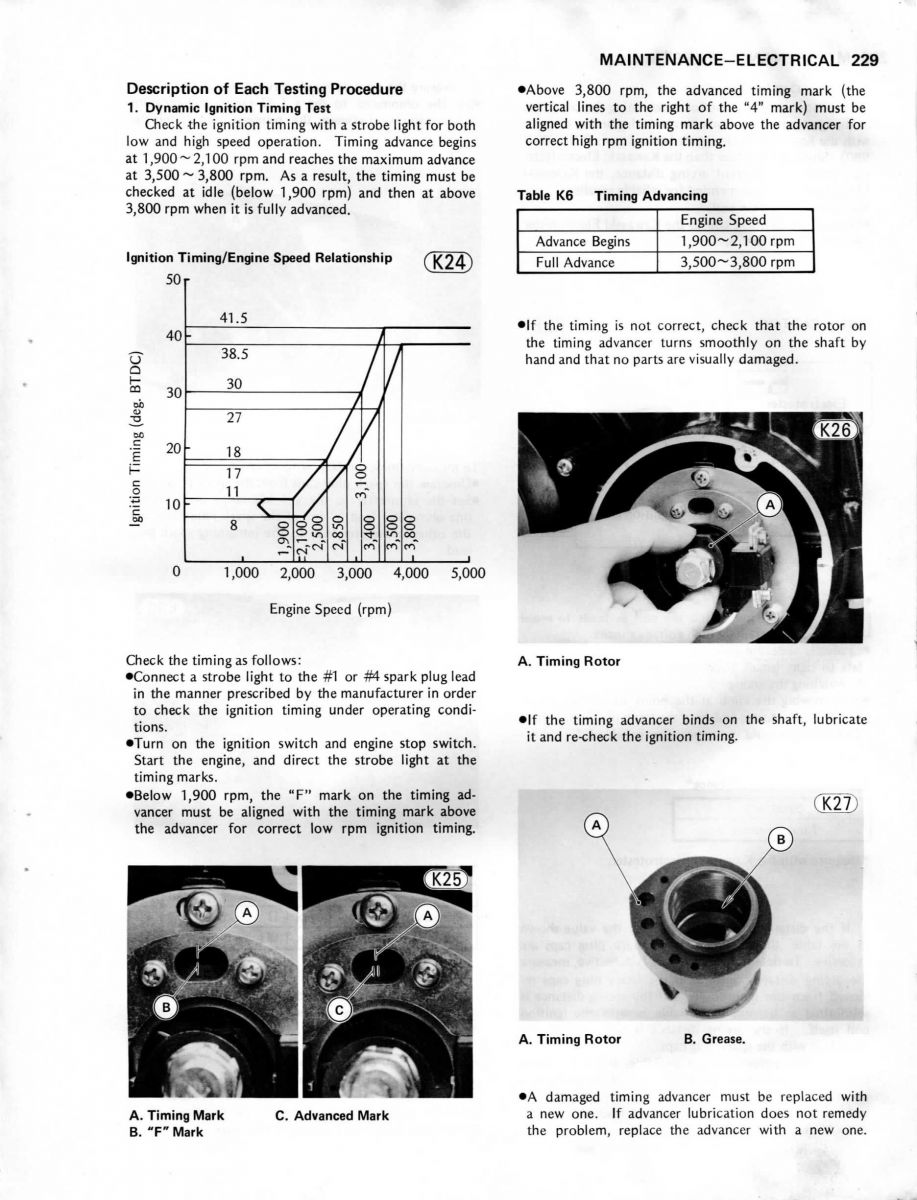

Scirocco wrote: Your ignition has a 180 degree angle out of timing to the crank shaft and cam shaft timing.
You have to swap the picup coils or the electric connectors and not the magnet.
The so called repair guy do it wrong.

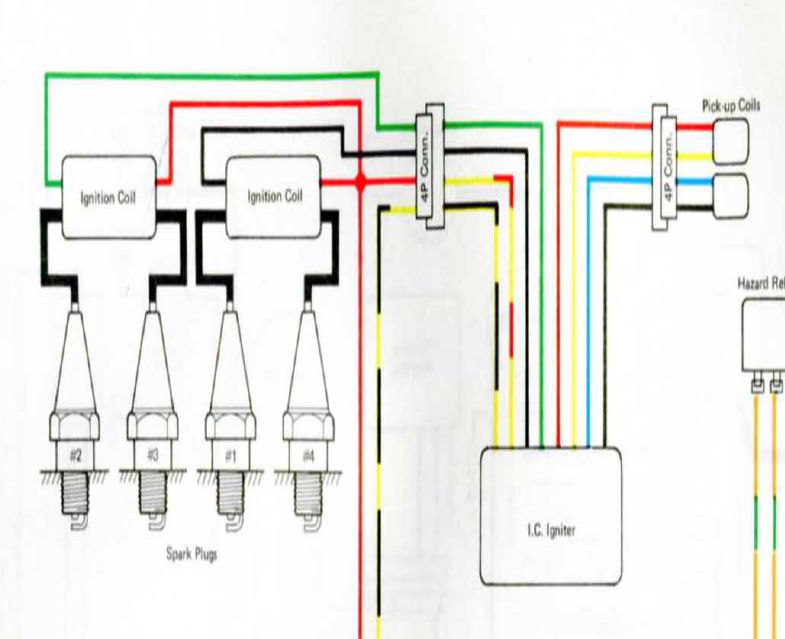

Yesterday i checked the pickups and the cut/rejoined cables and it looks correct, the colors are the same as on the old pickups (got them in a box when i bought the bike) and it does not look like he mixed them up.
I checked the colurs all the way to the igniter and it looks good.
The bike runs quite okay as it is and have a mechanical timing advancer, should i care that i had to swap the magnets to get it running......or just drive it as it is...?
Kawasaki GT550 -83
Kawasaki z750e -81
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
LaRzOn wrote: ...
The bike runs quite okay as it is and have a mechanical timing advancer, should i care that i had to swap the magnets to get it running......or just drive it as it is...?
The important thing is to get both magnets oriented with the same polarity, and get the signal polarity correct.
If it was wrong, symptoms would include incorrect timing, weak or erratic spark, backfiring, and the dwell would be wrong so the coils might run a little warmer.
If you are worried about it, the link shows how to check that. It takes about 10 minutes, and a volt meter.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- LaRzOn
- Topic Author
- Offline
- User
- Posts: 6
- Thank you received: 0
Thanks....
Kawasaki GT550 -83
Kawasaki z750e -81
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
LaRzOn wrote: . . . backfired" really bad in to the carbs. . . .
Another common cause of backfiring through carbs is insufficient clearance on intake valves.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- LaRzOn
- Topic Author
- Offline
- User
- Posts: 6
- Thank you received: 0
Patton wrote:
LaRzOn wrote: . . . backfired" really bad in to the carbs. . . .
Another common cause of backfiring through carbs is insufficient clearance on intake valves.
Good Fortune!
That is already checked and the bike runs pretty good efter i swapped the magnets......
