Re: Testing Coils

02 May 2017 18:37
#761017
Gordone, "don't gap the plugs super wide" means Do not set the sparkplug gap a large amount greater than the specified gap for the sparkplug /engine combo you are dealing with. Example if gap is specified .032 inches You would not want to set the gap at .045 - .050 inches The way I interpret the very good electrical advice given, if you are using 3-ohm coils you will want to gap the sparkplugs per specifications and not any wider
78 KZ650SR Mine since 79
4-1 Mac Jet Hot coated since mid 80's
Dyna Coils
Saddlebags (I ain't skeered of going nowhere) :)
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1417
  • Thanks: 73

Re: Testing Coils

03 May 2017 03:10
#761034
Thank you for your explanation ! :)
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1615

Re: Testing Coils

03 May 2017 07:58
#761058
Sorry. Your English is very good so I forgot you might not understand American descriptions.

I think 3-ohm is the best choice in your case.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1417
  • Thanks: 73

Re: Testing Coils

03 May 2017 12:05
#761082
Nothing to be sorry for, I want to learn so please continue with American descriptions :)

While I`m waiting for the coils and cables, must I try to test the IC igniter...
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1615

Re: Testing Coils

03 May 2017 21:57
#761130
Simple ohm tests might confirm a bad igniter or pickup, but it can't really confirm a good one. To truly test the igniter you really need a known good coil.

The manual describes how to test it by tapping on the pickups. I might be able to draw up a diagram of how to bench test coils and igniter.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1417
  • Thanks: 73

Re: Testing Coils

04 May 2017 03:36
#761135
I understand so you advise to wait to I have installed new coils and cables. How do you advise me to test the IC igniter then ?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1615

Re: Testing Coils

04 May 2017 09:12 - 04 May 2017 09:55
#761163

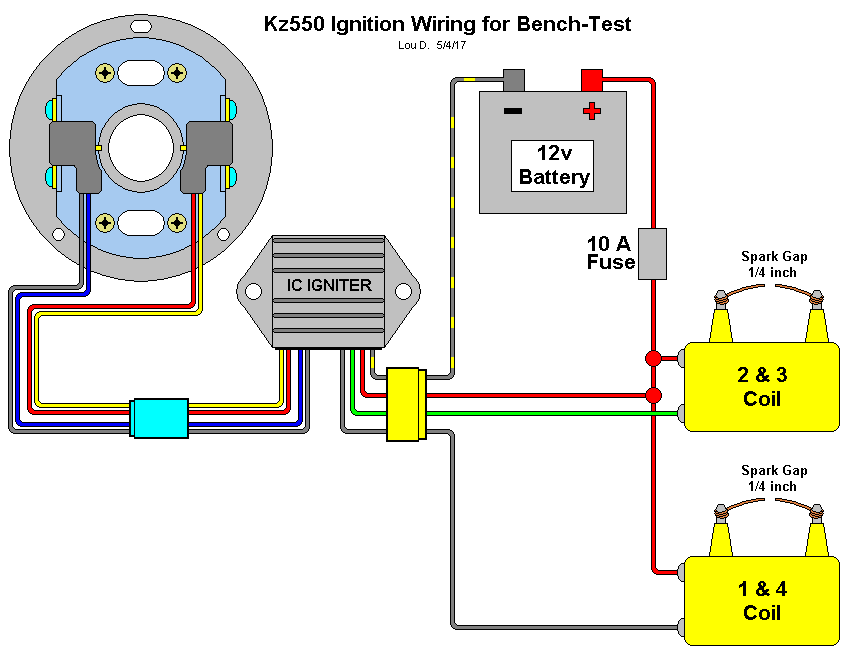

This is the basic wiring for the ignition. You can set it up on a test bench this way.

Then simply tap the center of each pickup.
The pickup with the blue and black wires will fire the 1&4 coil.
The pickup with the red and yellow wires will fire the 2&3 coil.

Make sure there is a path for the spark at each coil. Without that, the coil and/or igniter can be damaged.


1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Attachments:

Last edit: 04 May 2017 09:55 by loudhvx.
The following user(s) said Thank You: aquaholic

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1417
  • Thanks: 73

Re: Testing Coils

04 May 2017 11:49 - 04 May 2017 11:52
#761182
Thank you, stupid question.., but how can I make a path, to avoid coil or ignitor to be damage?

so I need to verify I got spark on 1&4 and 2&3 each time I activate the pickup sensor? Test these 10-20 times for both pickup sensor?

I will waith with these test to I got the new coils and cables.
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Last edit: 04 May 2017 11:52 by gordone.

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1615

Re: Testing Coils

05 May 2017 06:24
#761232
Just make sure the spark can go from one spark plug wire to the other spark plug wire (on the same coil). The gap between the two should be no more than 3/8 inch (1cm).
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1417
  • Thanks: 73

Re: Testing Coils

12 May 2017 12:57
#761831
Hopefully will I be able to install the new coils next week and test them, if I not come any further with new coils and plug cabals,
will I try to test the IC ignitor. Must I use some special cables for test bench ? Just some ordinary electro cables for car and mc? and make correct air gap?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1615

Re: Testing Coils

12 May 2017 22:43
#761858
Ordinary 16ga wire is fine for bench testing. Even 18 gauge might work for testing.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1417
  • Thanks: 73

Re: Testing Coils

18 May 2017 23:10
#762179
I have now recived part parts, but I`m going on vacation today, so I need to test the coils and new cabels when I come home.
So be prepare for a update in 2-3 weeks :)

Sorry for the delay!
I'm really appreciate all the help from everybody.
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.
