81 kz750 front brake switch?
- jdvorchak
-
Topic Author
- Offline
- User
-
Registered
- Posts: 398
- Thanks: 50
81 kz750 front brake switch?
29 Apr 2017 08:50

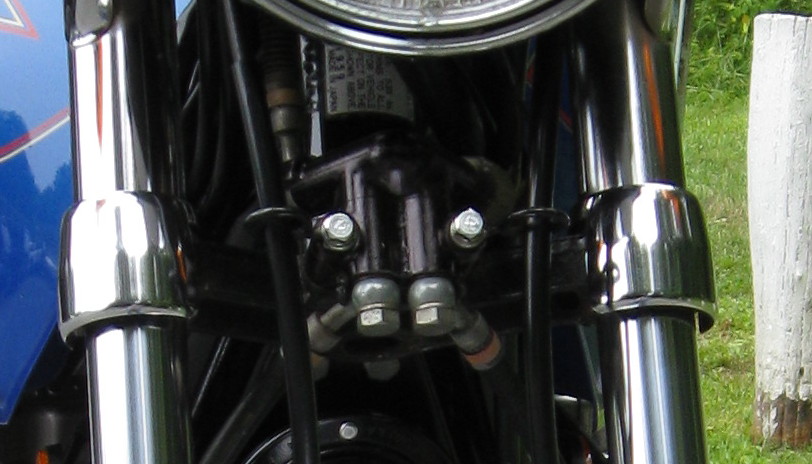

Not sure if the is the correct forum but looking at the pictures below I can't seem to find the front brake light switch. So that got me wondering if this is the correct MC for my kz750H
Untitled
by
j_dvorchak
, on Flickr
Untitled
by
j_dvorchak
, on Flickr
Thoughts?


Thoughts?
Don't fix it until it's broken.
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
-
Registered
- Posts: 8018
- Thanks: 1645
Re: 81 kz750 front brake switch?
29 Apr 2017 11:57 - 29 Apr 2017 15:23
That is not the stock mc. It should be a large rectangular mc w a leaky cap.
From the clymer manual.
From the clymer manual.
Last edit: 29 Apr 2017 15:23 by martin_csr.
The following user(s) said Thank You: jdvorchak
Please Log in or Create an account to join the conversation.
- 650ed
-
- Offline
- User
-
Registered
- Posts: 15343
- Thanks: 2833
Re: 81 kz750 front brake switch?
29 Apr 2017 12:28

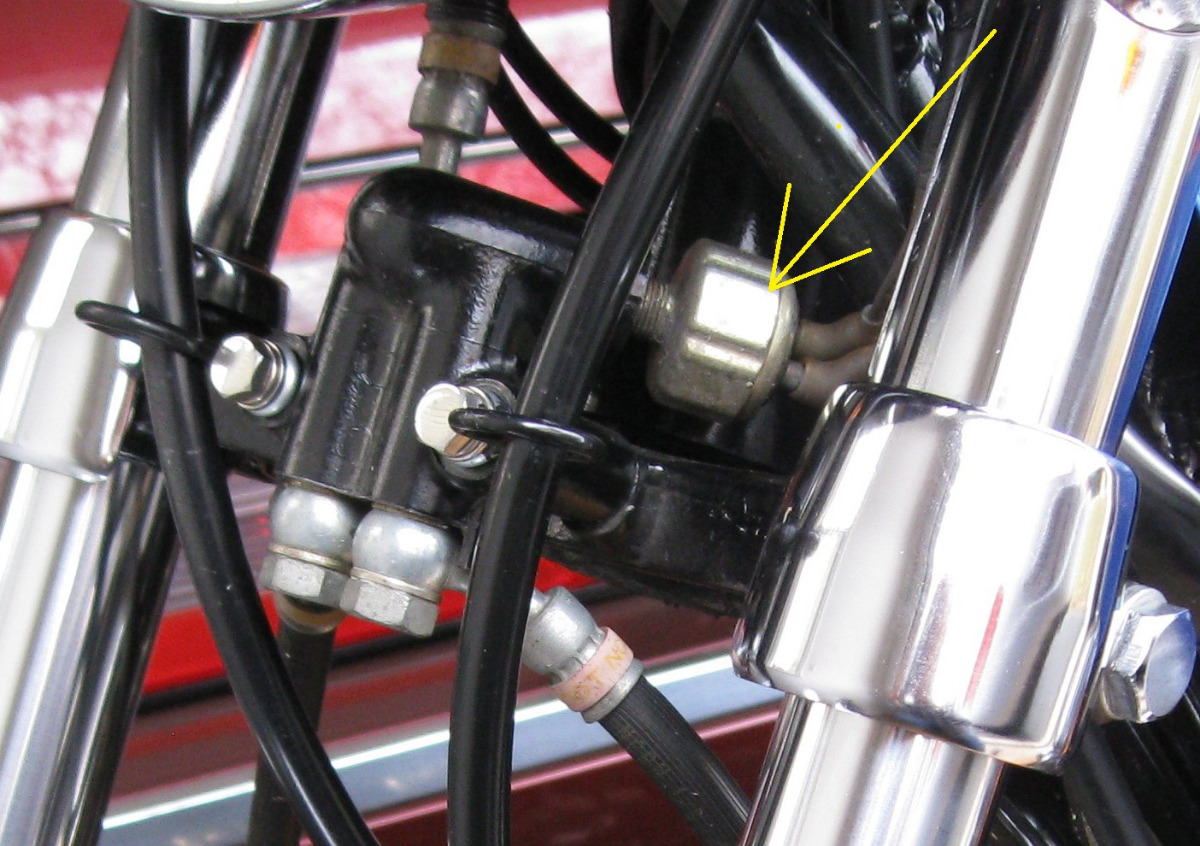

That master cylinder appears to be from an earlier model KZ. Assuming that is the case, it will not have any accommodation for a front brake switch. This is because the early dual front disk KZ models, such as mt 1977 KZ650-C1, had the brake light switch for the front brake built into the brake line splitter (see arrow in image below). Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
The following user(s) said Thank You: GPz550D1, jdvorchak
Please Log in or Create an account to join the conversation.
- jdvorchak
-
Topic Author
- Offline
- User
-
Registered
- Posts: 398
- Thanks: 50
Re: 81 kz750 front brake switch?
29 Apr 2017 16:34
Thanks to both of you. It's a shame because the MC is in really good shape but I have to have a front brake light switch. That splitter looks like it's built into the bottom triple tree. I think it would be easier to get a new MC that has the built in switch.
Don't fix it until it's broken.
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
Please Log in or Create an account to join the conversation.
- 650ed
-
- Offline
- User
-
Registered
- Posts: 15343
- Thanks: 2833
Re: 81 kz750 front brake switch?
29 Apr 2017 17:20 - 29 Apr 2017 17:20jdvorchak wrote: Thanks to both of you. It's a shame because the MC is in really good shape but I have to have a front brake light switch. That splitter looks like it's built into the bottom triple tree. I think it would be easier to get a new MC that has the built in switch.
It isn't. It is simply bolted to it with the two bolts shown here. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
Last edit: 29 Apr 2017 17:20 by 650ed.
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
-
Registered
- Posts: 8018
- Thanks: 1645
Re: 81 kz750 front brake switch?
29 Apr 2017 22:51
The mounting holes on that brake line splitter probably don't line up with the 750H brake joint mounting holes.
Please Log in or Create an account to join the conversation.
- Scirocco
-
- Offline
- Premium Member
-
Registered
- Never change a running system
- Posts: 4420
- Thanks: 2268
Re: 81 kz750 front brake switch?
30 Apr 2017 04:31 - 30 Apr 2017 04:32
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Attachments:
Last edit: 30 Apr 2017 04:32 by Scirocco.
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- 650ed
-
- Offline
- User
-
Registered
- Posts: 15343
- Thanks: 2833
Re: 81 kz750 front brake switch?
30 Apr 2017 04:55martin_csr wrote: The mounting holes on that brake line splitter probably don't line up with the 750H brake joint mounting holes.
That's probably true. If so, a small adapter plate could be made to mount the splitter. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
-
Registered
- Posts: 8018
- Thanks: 1645
Re: 81 kz750 front brake switch?
30 Apr 2017 05:06 - 30 Apr 2017 05:07
The 750H also has a fork cover emblem.
If he could add that brake light switch in Scirocco's reply, then that might be the simplest thing to do.
If he could add that brake light switch in Scirocco's reply, then that might be the simplest thing to do.
Last edit: 30 Apr 2017 05:07 by martin_csr.
Please Log in or Create an account to join the conversation.
- jdvorchak
-
Topic Author
- Offline
- User
-
Registered
- Posts: 398
- Thanks: 50
Re: 81 kz750 front brake switch?
30 Apr 2017 05:28 - 30 Apr 2017 05:31
I wish I'd seen this before I ordered a new MC. I have a new one on the way with the switch built in. That banjo bolt switch would have been great mounted on the splitter.
Don't fix it until it's broken.
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
Last edit: 30 Apr 2017 05:31 by jdvorchak.
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
-
Registered
- Posts: 8018
- Thanks: 1645
Re: 81 kz750 front brake switch?
30 Apr 2017 05:32 - 30 Apr 2017 05:32
Did you order one with an angled mount? Your current mc is for standard type handlebars.
Last edit: 30 Apr 2017 05:32 by martin_csr.
Please Log in or Create an account to join the conversation.
- jdvorchak
-
Topic Author
- Offline
- User
-
Registered
- Posts: 398
- Thanks: 50
Re: 81 kz750 front brake switch?
30 Apr 2017 05:48
Not sure what you mean about angled mount. The one I ordered looks a lot like the one that should be on my bike. I'm not really concerned as I hate the handle bars that are on it now. Kinda high rise buck horn style. I have a few other bars from previous projects or I can buy new bars when I see what style I like.
But I have no problem keeping the new MC for a different project and using the banjo bolt switch on this bike. I'm not in a hurry to finish this bike anyway. I own 4 other motorcycles so the biggest problem I have is deciding which one to ride!
I got this bike for free and so far have less than $100 in it. I've already rebuilt the rear brakes and have just cleaned and flushed the front calipers. Cleaned and fixed leaking overflow tubes in the carbs and have them installed, with new float needles. and synced. Bike runs good now!
But I have no problem keeping the new MC for a different project and using the banjo bolt switch on this bike. I'm not in a hurry to finish this bike anyway. I own 4 other motorcycles so the biggest problem I have is deciding which one to ride!
I got this bike for free and so far have less than $100 in it. I've already rebuilt the rear brakes and have just cleaned and flushed the front calipers. Cleaned and fixed leaking overflow tubes in the carbs and have them installed, with new float needles. and synced. Bike runs good now!
Don't fix it until it's broken.
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
John
83 KZ550M1
83 KZ1100LTD
Also own:
2010 Harley Ultra Classic Limited, 2008 Harley low rider 71 CB350/sidecar
Please Log in or Create an account to join the conversation.
