doubt wiring connection z1000j 21 Nov 2016 13:36 #748603

  • vjkin2
  • vjkin2's Avatar Topic Author
  • Offline
  • User
  • Posts: 7
  • Thank you received: 0
i've bought the z1000j (EU) cable for my z1000j engine (EU) , it's all ok except for this one

they seems to be a bypass from pickup connection (same colors wire) to ic-ignitier
no other code , and with these i don't find anything usefull

now i'm not sure the go well and i don't know where the orange and blu/W go :S

tank u
and sorry 4 my english
z1000 mkII
Rau-Z1000j

Please Log in or Create an account to join the conversation.

doubt wiring connection z1000j 23 Nov 2016 14:42 #748767

  • vjkin2
  • vjkin2's Avatar Topic Author
  • Offline
  • User
  • Posts: 7
  • Thank you received: 0
speaking with some mechanic friends , those two box seems to be one kind of g-pack that change the timing :blink:
i'll try without and after with
z1000 mkII
Rau-Z1000j

Please Log in or Create an account to join the conversation.

doubt wiring connection z1000j 22 Nov 2022 09:59 #877075

  • Jonas_Z1000j
  • Jonas_Z1000j's Avatar
  • Offline
  • User
  • Posts: 53
  • Thank you received: 9
Hi,

Did you ever find out what that device was and what happened when you remove it?

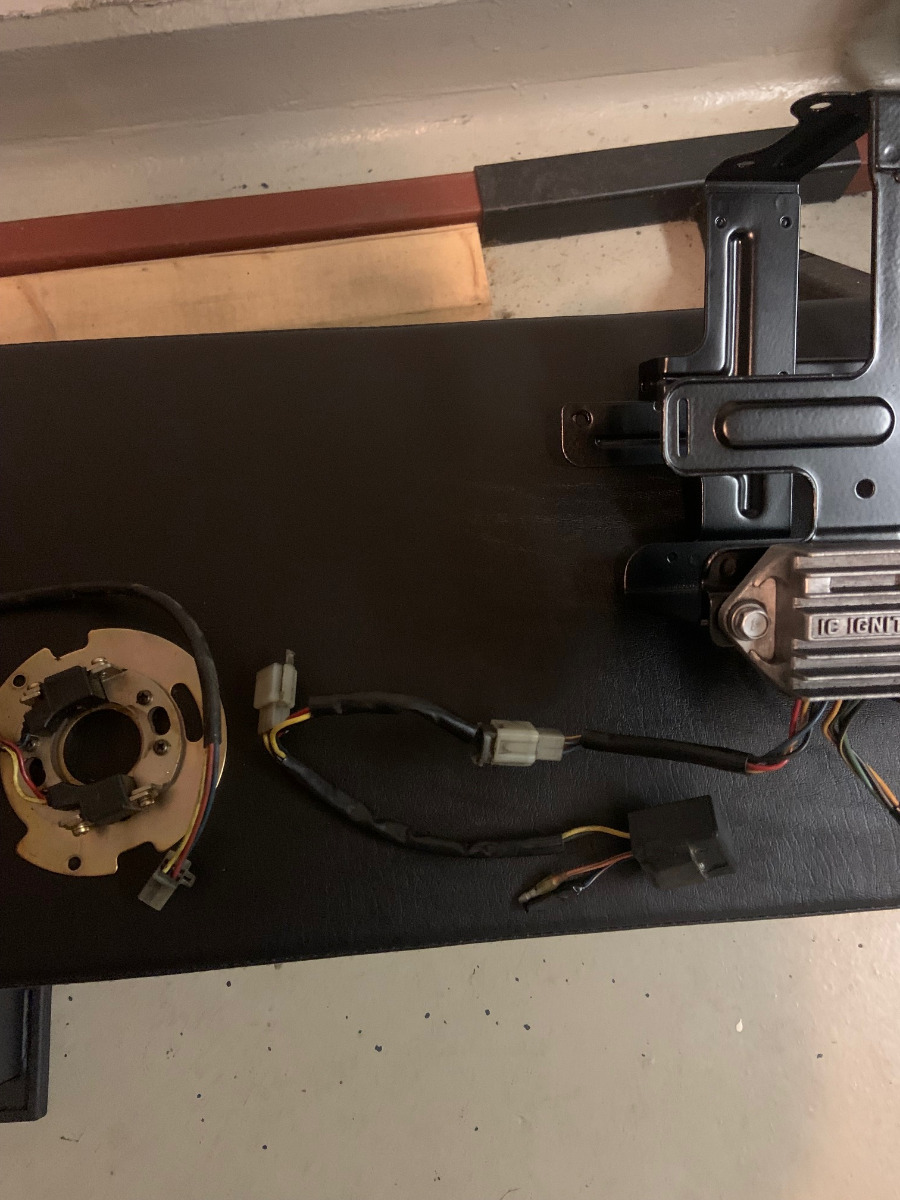

I think I have the same issue on a -J sold in Sweden. Its something between the pickup and igniter unit:




The blue and orange wires was connected on my bike from the main harness with wires in a long green sock, but the blue one caused troubles, It gets 4,7 A when I turn on the headlight and the engine stumbles!?

The EU model was rated at 98 bhp, and the US was 102 bhp. could this be as vjkin2 suggested something to retard timing/ reduce output? Or some kind of ignition blocking so you cant start it without neutral etc?
Z1000 J2 -82 not so running restoration object anymore
Z900RS -21 Green/Yellow
Attachments:

Please Log in or Create an account to join the conversation.

doubt wiring connection z1000j 23 Nov 2022 05:17 #877088

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7727
  • Thank you received: 1529
Hej, Hallå.* I'm not seeing a device in the European model wiring diagram.
It could be a relay for a security device. guessing.
I would remove the thing, then see if the motorcycle runs. assuming you haven't tried that already. doh.


* - google översätt. :)

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

doubt wiring connection z1000j 23 Nov 2022 08:06 #877093

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1312
  • Thank you received: 553
It certainly isn't a starter lock out, the idea is not to be able to operate the starter in gear and knock the bike off the stand which this wouldn't do. Given that there isn't a sign of this in the wiring diagrams for either US or European spec I can't see that you will hurt anything by trying it without
What colour wires is it connected to in the harness ?
1982 KZ1000 Ltd

Please Log in or Create an account to join the conversation.

Last edit: by Wookie58.

doubt wiring connection z1000j 23 Nov 2022 09:06 #877095

  • willemZ900
  • willemZ900's Avatar
  • Offline
  • User
  • Z1B 4 ever
  • Posts: 129
  • Thank you received: 26
Brake light failure switch??

Please Log in or Create an account to join the conversation.

doubt wiring connection z1000j 23 Nov 2022 12:51 #877099

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1057
  • Thank you received: 360
Impuls geber = impulse giver! Whatever that's supposed to mean.

Z1000J2 somewhat modified!


Attachments:
The following user(s) said Thank You: Jonas_Z1000j

Please Log in or Create an account to join the conversation.

Last edit: by Warren3200gt.

doubt wiring connection z1000j 23 Nov 2022 14:25 #877100

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1028
  • Thank you received: 264
Not being able to read/understand the language I do think the item you indicated with red box is a starter lock out switch.  But I do not think it is the device in question. I think it is located much closer to CDI unit and it appears to be called some type of relay?
1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

Last edit: by gd4now.

doubt wiring connection z1000j 23 Nov 2022 14:33 #877102

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1057
  • Thank you received: 360
It's not the red boxed item, that was already on the diagram from a previous issue. It's up by the IC ignitor at the top of the diagram just right of center.

Z1000J2 somewhat modified!


Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Warren3200gt.

doubt wiring connection z1000j 23 Nov 2022 17:02 #877107

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3637
  • Thank you received: 1668
Impulsgeber = Ignition picup coils
Seitenständerschalter = Side stand switch
Seitenständerrelais = Side stand relay
Seitenständerfreigabeknopf = Side stand release switch


Attachments:

Please Log in or Create an account to join the conversation.

doubt wiring connection z1000j 23 Nov 2022 17:14 #877111

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1028
  • Thank you received: 264
That is the one I was thinking of.  Thanks for the translation that makes sense.
1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

doubt wiring connection z1000j 24 Nov 2022 00:33 #877128

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1312
  • Thank you received: 553
Warren - where is that diagram from please, I could not see that unit on any of the diagrams in the manual ?
Jonas - where and how are you measuring a 4.7amp draw from this unit ?
