Apparently my phone takes pictures that have resolutions too high to be uploaded here or else there would have been a picture. So now I'll try to explain what I mean.
Basically there's a solenoid to the right of the fuse box with a lead going to the battery and one to the motor, above those leads are four prongs that seem to accept a fuse. My local kawasaki dealer offered little help, I asked to show him what I meant and instead he just pulled up pictures on the computer and said there's your problem. Anyway, if a better description is needed I'll do my best. Thanks
1981 KZ750
Please Log in or Create an account to join the conversation.
- MOTMF
- Topic Author
- Offline
- User
- Posts: 2
- Thank you received: 0
Please Log in or Create an account to join the conversation.
- toolmaker
- Offline
- User
- Posts: 217
- Thank you received: 19
I live near Portland, Oregon and my rider is a '76 KZ900 I bought new. I'm also in the process of restoring another one and a '73 Z1.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656
The stock fuse box has a 20A main fuse & two 10A. also, there should be an Acc fuse box w two 10A fuses (all glass fuses).
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
MOTMF wrote: What type and size fuse plugs into those prongs? . . . Basically there's a solenoid to the right of the fuse box with a lead going to the battery and one to the motor, above those leads are four prongs that seem to accept a fuse. . . 1981 KZ750
As there's not a 1981 KZ 750 twin model, the referenced 1981 KZ750 is probably an E2 or H2 four cylinder model.
Here are links to downloadable wiring diagrams for KZ750-E2 and for KZ750-H2 in KZrider's FILEBASE.
Click here > www.kzrider.com/filebase/category/79-kz750-electrical
> www.kzrider.com/filebase/download/79-kz7...750e2-wiring-diagram
> www.kzrider.com/filebase/download/79-kz7...750h2-wiring-diagram

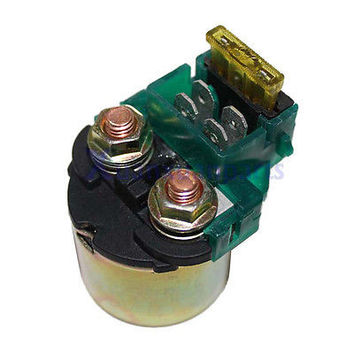

MOTMF wrote: It closely resembles the one in the picture, the only difference being the maxi fuse has been replaced by a small strip of metal underneath a cover. What plugs into those prongs?
martin_csr wrote: The stock relay doesn't have a fuse or those terminal pins. . . .
Am also thinking the stock starter solenoid did not have integrated blade type fuses and did not have any integrated male blade style blade connectors.
May also find some helpful info at:
Click here > mbsween.bike-night.com/kz750l3/index.html
Then scroll down to and click on The Bible, which is the FSM (Factory Service Manual).
There's some starter solenoid info beginning on page 232.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
If you text the photo to yourself, then upload it, it will sometimes be smaller, and might load on the forum.
Either way, just use a 5 or 10 amp fuse, It won't matter much since the fuse will be redundant to what the bike originally came with, as long as the original fuse box is hooked up. The solenoid should not need more than an amp or so.
