coil wires
- nitrokeeb
- Topic Author
- Offline
- User
Less
More
17 Apr 2016 09:24 - 17 Apr 2016 09:25 #721405
by nitrokeeb
1978 KZ1000B LTD w/KZ900 engine
coil wires was created by nitrokeeb
Wiring in some accel coils on my 1978 1000 ltd. I have one green and one black wire coming from the poins. Which wire fires which coil? And I assume the coils are broken down to cylinders 1-4 and 2-3. Which cylinder is number 1?
Attachment IMG_0834.JPG not found
1978 KZ1000B LTD w/KZ900 engine
Attachments:
Last edit: 17 Apr 2016 09:25 by nitrokeeb.
Please Log in or Create an account to join the conversation.
- missionkz
- Offline
- Sustaining Member
17 Apr 2016 10:25 #721417
by missionkz
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Replied by missionkz on topic coil wires
Just remove the points cover, rotate the crank so one of the points just opens, and look at the timing marks. It will say 1-4 or 2-3.
Or read your service manual which has that too.
Or read your service manual which has that too.
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Please Log in or Create an account to join the conversation.
- zed1015
- Offline
- User
Less
More
- Posts: 3023
- Thank you received: 1554
17 Apr 2016 10:51 - 17 Apr 2016 10:52 #721419
by zed1015
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
Replied by zed1015 on topic coil wires
When sitting on the bike, the outer left hand (alt side ) cylinder is classed as number one.
One coil feeds 1-4 the other 2-3.
Wasted spark system.
It won't do any harm if you get the green and black LT wires the wrong way round though as it just won't run and you just simply swap them over to correct it.
No need to pull the ign cover either if it's just a straight coil upgrade and not a timing issue.
One coil feeds 1-4 the other 2-3.
Wasted spark system.
It won't do any harm if you get the green and black LT wires the wrong way round though as it just won't run and you just simply swap them over to correct it.
No need to pull the ign cover either if it's just a straight coil upgrade and not a timing issue.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
Last edit: 17 Apr 2016 10:52 by zed1015.
Please Log in or Create an account to join the conversation.
- nitrokeeb
- Topic Author
- Offline
- User
Less
More
- Posts: 93
- Thank you received: 10
17 Apr 2016 12:56 #721439
by nitrokeeb
1978 KZ1000B LTD w/KZ900 engine
Replied by nitrokeeb on topic coil wires
Bike has sat for almost three years, when I go to fire it up d don't want any variables in case it doesn't start. The case guards might be in the way of removing the timing cover, but I can pull a plug, put the piston at the top and see if a test light lights up on the coil wire. That'll tell me if the points are open.
1978 KZ1000B LTD w/KZ900 engine
Please Log in or Create an account to join the conversation.
- nitrokeeb
- Topic Author
- Offline
- User
Less
More
- Posts: 93
- Thank you received: 10
17 Apr 2016 18:49 #721486
by nitrokeeb
1978 KZ1000B LTD w/KZ900 engine
Replied by nitrokeeb on topic coil wires
So I found top dead center, and used a test light to determine the green wire is for cylinders 1-4, black is 2-3.
After I finishes the wiring, I tested the voltage and found less than than 10 volts, across the coil screws and from coil positive to ground. So the voltage is dropping on the ignition source. I know some older cars used a resister to keep from burning up the points. Do Kz's do the same, or do I have a problem?
Also checked the plug gap. .030 which is spec. I heard with aftermarket coils you can open up the gap a little. Any truth to that?
After I finishes the wiring, I tested the voltage and found less than than 10 volts, across the coil screws and from coil positive to ground. So the voltage is dropping on the ignition source. I know some older cars used a resister to keep from burning up the points. Do Kz's do the same, or do I have a problem?
Also checked the plug gap. .030 which is spec. I heard with aftermarket coils you can open up the gap a little. Any truth to that?
1978 KZ1000B LTD w/KZ900 engine
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
18 Apr 2016 00:33 #721519
by Patton

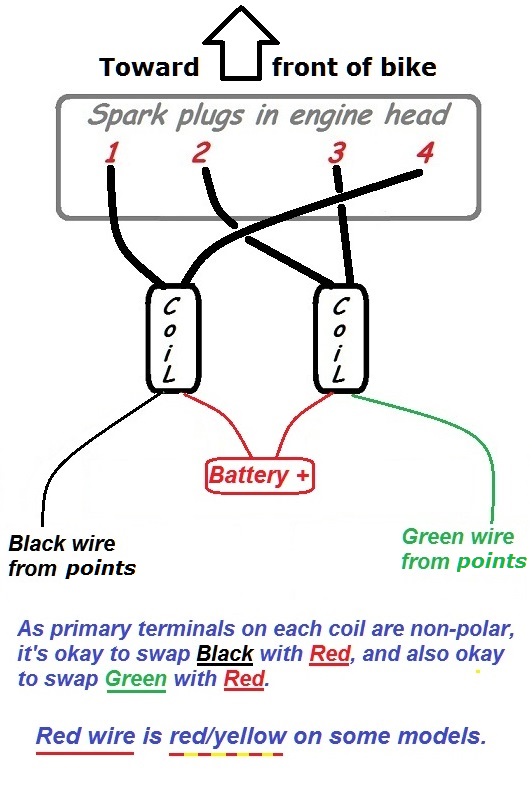

Stock wiring is opposite.
Opening of the points is the event that causes firing of the coil.
When 1/4 shows in the timing window, the left-hand (9 o'clock) points should be starting to open.
This is the black wire to the coil that's attached to #1/4 spark plugs.
The black wire provides ground for the coil's primary winding.
The coil charges while it's primary winding is grounded via the black wire.
When the points open, the black wire becomes un-grounded, which is the event that causes the coil to fire.
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic coil wires
nitrokeeb wrote: So I found top dead center, and used a test light to determine the green wire is for cylinders 1-4, black is 2-3. . . .
Stock wiring is opposite.
Opening of the points is the event that causes firing of the coil.
When 1/4 shows in the timing window, the left-hand (9 o'clock) points should be starting to open.
This is the black wire to the coil that's attached to #1/4 spark plugs.
The black wire provides ground for the coil's primary winding.
The coil charges while it's primary winding is grounded via the black wire.
When the points open, the black wire becomes un-grounded, which is the event that causes the coil to fire.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
18 Apr 2016 00:41 #721520
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic coil wires
If the points cam is improperly installed 180° off, the black and green wires can be reversed to the coils in order to counter-act the improperly installed cam.
The better practice is to properly install the cam in its correct orientation so that the stock wiring is preserved.
Good Fortune!
The better practice is to properly install the cam in its correct orientation so that the stock wiring is preserved.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
19 Apr 2016 08:45 #721772
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic coil wires
Yup, as Patton said, if the green wire fires 1 and 4, the rotor is backaward. Black should fire 1 and 4.
