Hi, i picked up this bike and last thing I need net working is the brake light using front brake handle
The previous owner kept a big front fairing with radio etc . before giving me this bike.. with front light and turn signals in a Box.
- I don't not have power at the Blue/Brown wires at the Front Brake switch.

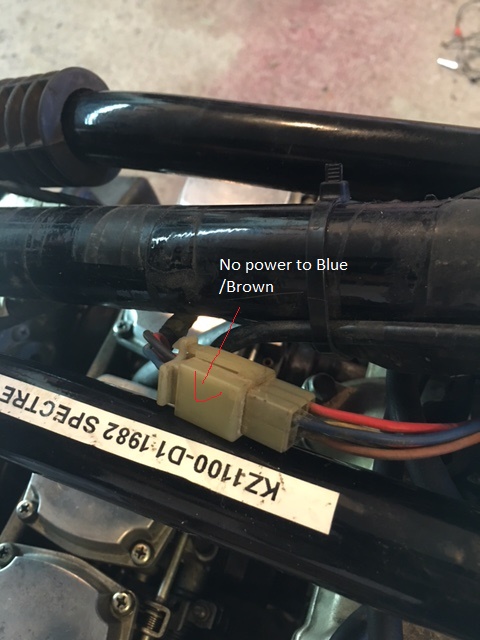

-I also don't have power at the front Right handle bar Harness connector. Blue/brown.
-Resistance checks out on the front brake switch.
-rear brake light works fine when using rear brake pedal/rear switch
The issue is probably in the Front light Housing..
I would need to know what provides power to the front Blue and Brown wires brake switch.
In the front light housing I have wires not used?

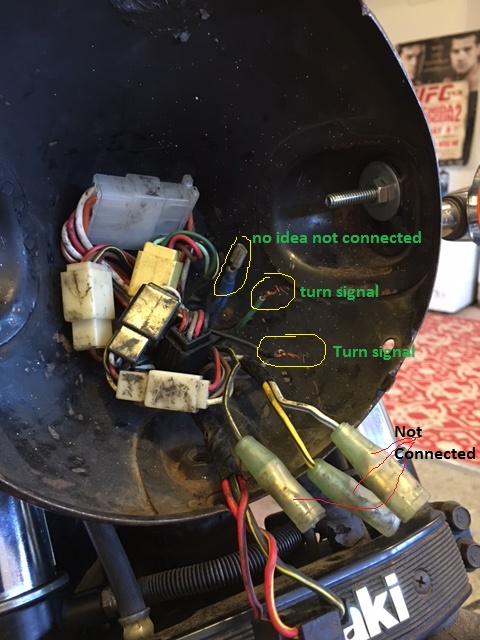

also I was able to get the turn signals working fine, they are just tempo connected for now until i get all this working. i attached a picture.
I suspect I have a wire not connected , or it bridges with the turn signals wires..
Any guidance would be great.
easy basic wiring Diagram.
I have volt/Ohm
meter.
Bike:
82 kz1100 d2
Gatineau, Qc Canada.
The previous owner kept a big front fairing with radio etc . before giving me this bike.. with front light and turn signals in a Box.
- I don't not have power at the Blue/Brown wires at the Front Brake switch.
-I also don't have power at the front Right handle bar Harness connector. Blue/brown.
-Resistance checks out on the front brake switch.
-rear brake light works fine when using rear brake pedal/rear switch
The issue is probably in the Front light Housing..
I would need to know what provides power to the front Blue and Brown wires brake switch.
In the front light housing I have wires not used?
also I was able to get the turn signals working fine, they are just tempo connected for now until i get all this working. i attached a picture.
I suspect I have a wire not connected , or it bridges with the turn signals wires..
Any guidance would be great.
easy basic wiring Diagram.
I have volt/Ohm
meter.
Bike:
82 kz1100 d2
Gatineau, Qc Canada.
