Checking coils for a short
- bluej58
- Topic Author
- Offline
- Sustaining Member
- The chrome don't get you home
Last week I started to have intermittent power loss at low and high rpm's
After barely making it home, I swapped out the points and condenser with an old set that I had laying around and could not get it fired up again.
I have had the carbs off twice cleaning them, no help.
I ordered a new set of points and condenser and a new regulator/rectifier and installed them today, still nothing :blush:
Using a meter set to Rx1 I tried to set the points,
I got 2 and 3 to drop off just past the "F" mark like it should but on the 1 and 4 point the needle stays spiked even with it opened
When I disconnect the green and black wires from the point to the coils I can get 1 and 4 to drop off to drop off.
I hate doing electrical stuff and can read and watch videos until I am cross eyed :S it just doesn't sink in.
If there is an easy/ fool proof way to check my coils please let me know in a language that an idiot can understand.
In the mean time I am headed down to the local Suzuki shop to see if they have the right 7mm copper core wires for my spare green Dyna coils :whistle:
Thanks,
JD
78 KZ1000 A2A
Please Log in or Create an account to join the conversation.
- missionkz
- Offline
- Sustaining Member
Check to see if the primary wires on the coils are shorting out to the coil's mounting screws.
Also, rarely, but sometimes, .... the flat spring on the points gets askew and shorts the grounding lead to engine ground when it is not supposed to be until the points close.
You can also use your volt meter to check that by clipping the black one to ground and the other on the spring of either points one at a time.
With the ignition on, rotate the engine by hand and see if you get 12v or so when the points are open.....if yes, you don't have a primary wiring short anywhere I can think of.
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
In the mean time, when you are working with one set of points, put a slip of paper in the other set so they don't make contact. Then you can use ohms to set the points.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
bluej58 wrote: . . . I got 2 and 3 to drop off just past the "F" mark like it should but on the 1 and 4 point the needle stays spiked even with it opened
When I disconnect the green and black wires from the point to the coils I can get 1 and 4 to drop off. . . .

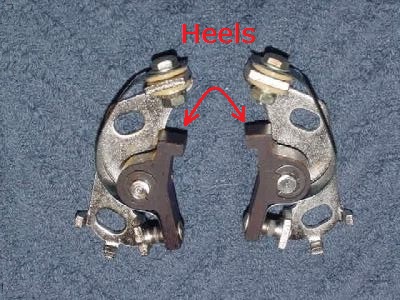

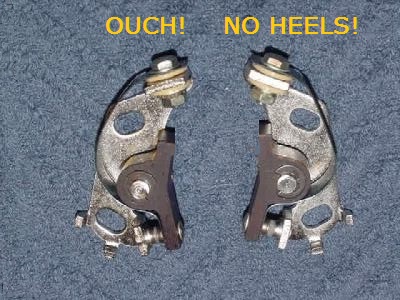

Perhaps the heels of the left-hand-side points (black wire from 1/4 coil) are worn off whereby the points are failing to open.

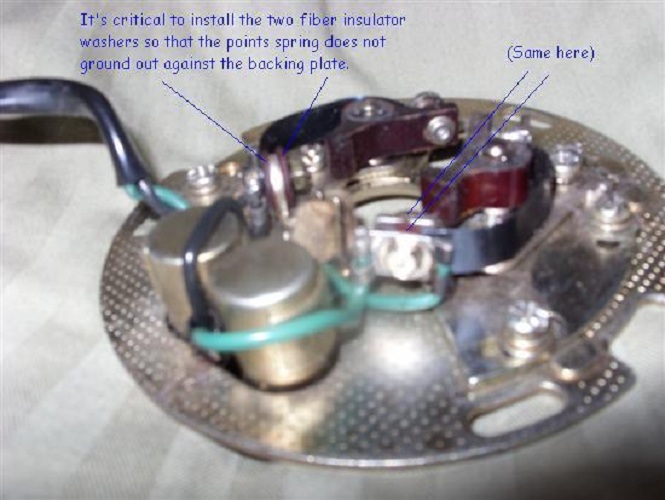

Or perhaps the fiber insulator washers are defective or missing or improperly installed, whereby the black wire from 1/4 coil is always staying grounded even when the points are open.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098

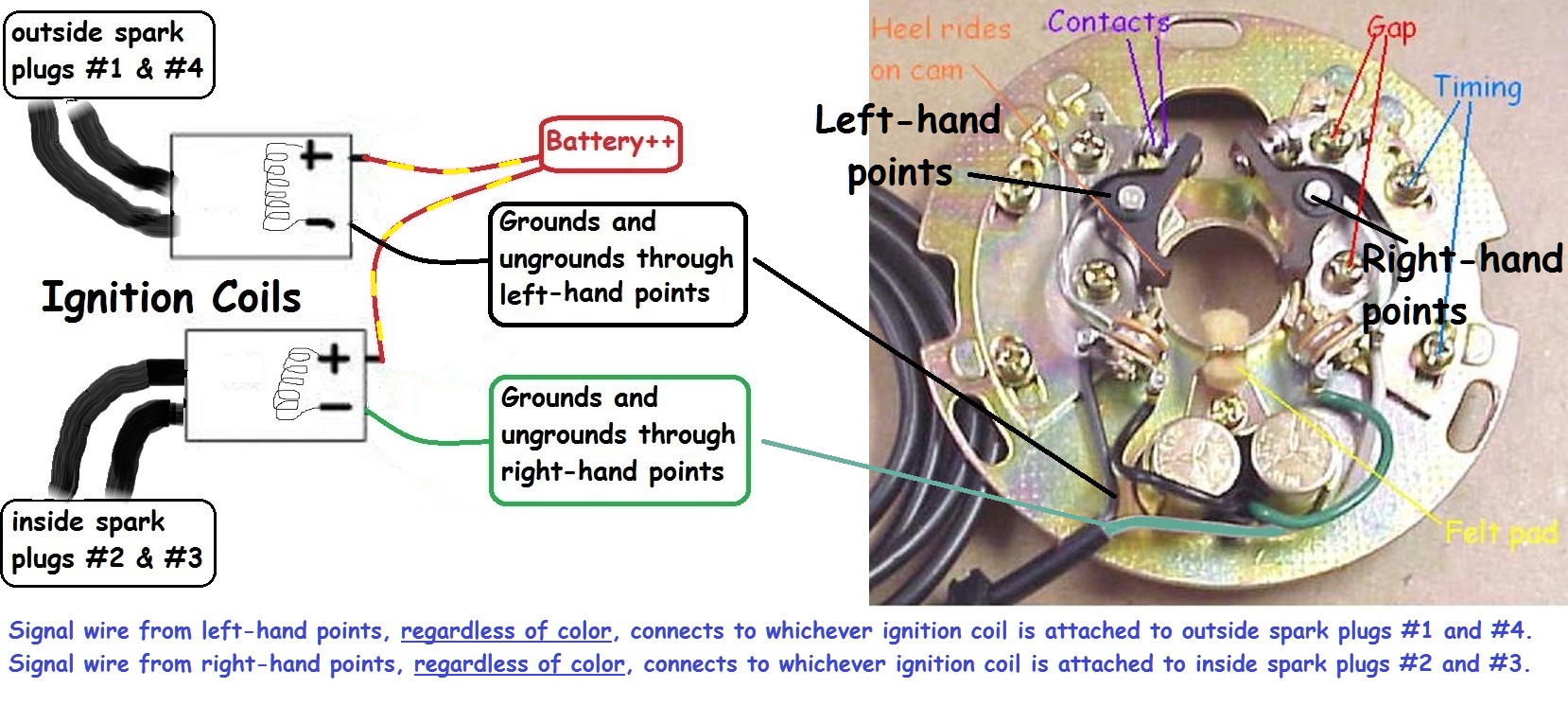

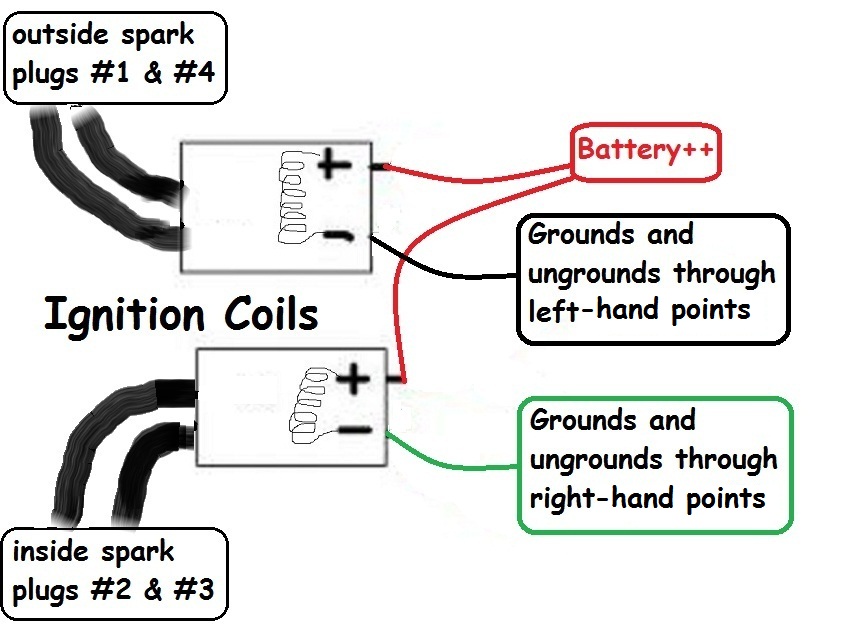

Here's how the black wire is supposed to cause the 1/4 ignition coil to fire:
