Regulator Rectifier installation
- JimB
- Topic Author
- Offline
- User
Less
More
16 May 2015 20:16 #672439
by JimB
1978 KZ1000A2, 1980 KZ1000E, 1980 KZ1000B4 LTD
Regulator Rectifier installation was created by JimB
Hello KZ'rs,
OK,..I recently installed a combo Reg/Rec from Z1. Pretty easy to install. 3 yellow wires to stator and 2 green to neg battery and 2 red to Pos battery.
After installation,... my battery went dead so I measured the battery and it reads only 12.5 volts and with engine revving I still only get 12.5 across the battery so the Reg/REc is not charging the battery,...I was especting about 14V across battery from REg/Rec. Stator voltage to REg/Rec varies from 15 - 30 when rev'ing the engine easuring each wire from the other.
But if I disconnet the wires and measure the voltage I am reading 3.9 Volts as in pic. What is going on?
Is this new Reg/REc faulty?
I did not ground the Reg/REc to the frame,...except the bolts securing the unit of course.
Any additional testing advice would be appreciated before I buy a new one.
Jim
OK,..I recently installed a combo Reg/Rec from Z1. Pretty easy to install. 3 yellow wires to stator and 2 green to neg battery and 2 red to Pos battery.
After installation,... my battery went dead so I measured the battery and it reads only 12.5 volts and with engine revving I still only get 12.5 across the battery so the Reg/REc is not charging the battery,...I was especting about 14V across battery from REg/Rec. Stator voltage to REg/Rec varies from 15 - 30 when rev'ing the engine easuring each wire from the other.
But if I disconnet the wires and measure the voltage I am reading 3.9 Volts as in pic. What is going on?
Is this new Reg/REc faulty?
I did not ground the Reg/REc to the frame,...except the bolts securing the unit of course.
Any additional testing advice would be appreciated before I buy a new one.
Jim
Attachment kz1000regrec.jpg not found
1978 KZ1000A2, 1980 KZ1000E, 1980 KZ1000B4 LTD
Attachments:
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
Less
More
- Posts: 6650
- Thank you received: 540
16 May 2015 20:40 #672442
by MFolks
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Replied by MFolks on topic Regulator Rectifier installation
Go to
www.electrosport.com
and find their troubleshooting page.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
16 May 2015 21:10 #672448
by SWest
Replied by SWest on topic Regulator Rectifier installation

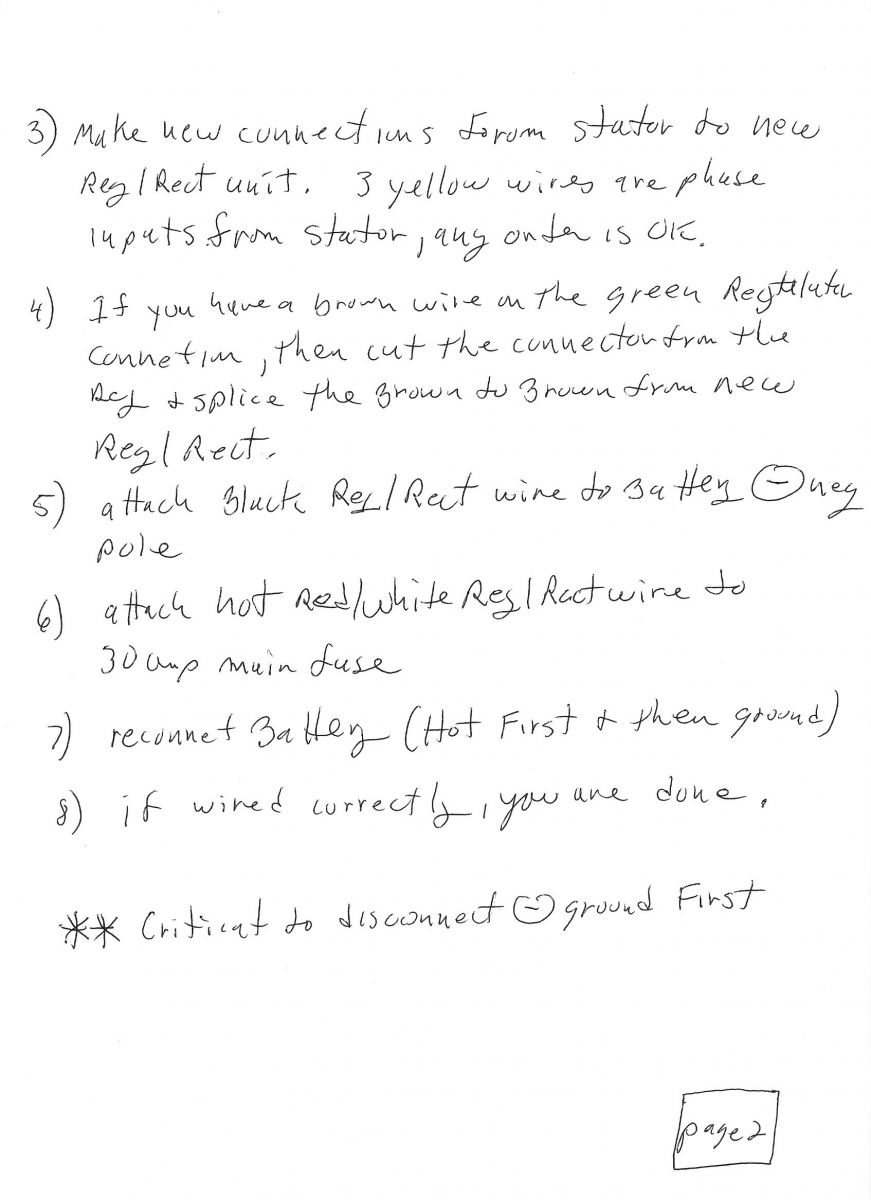

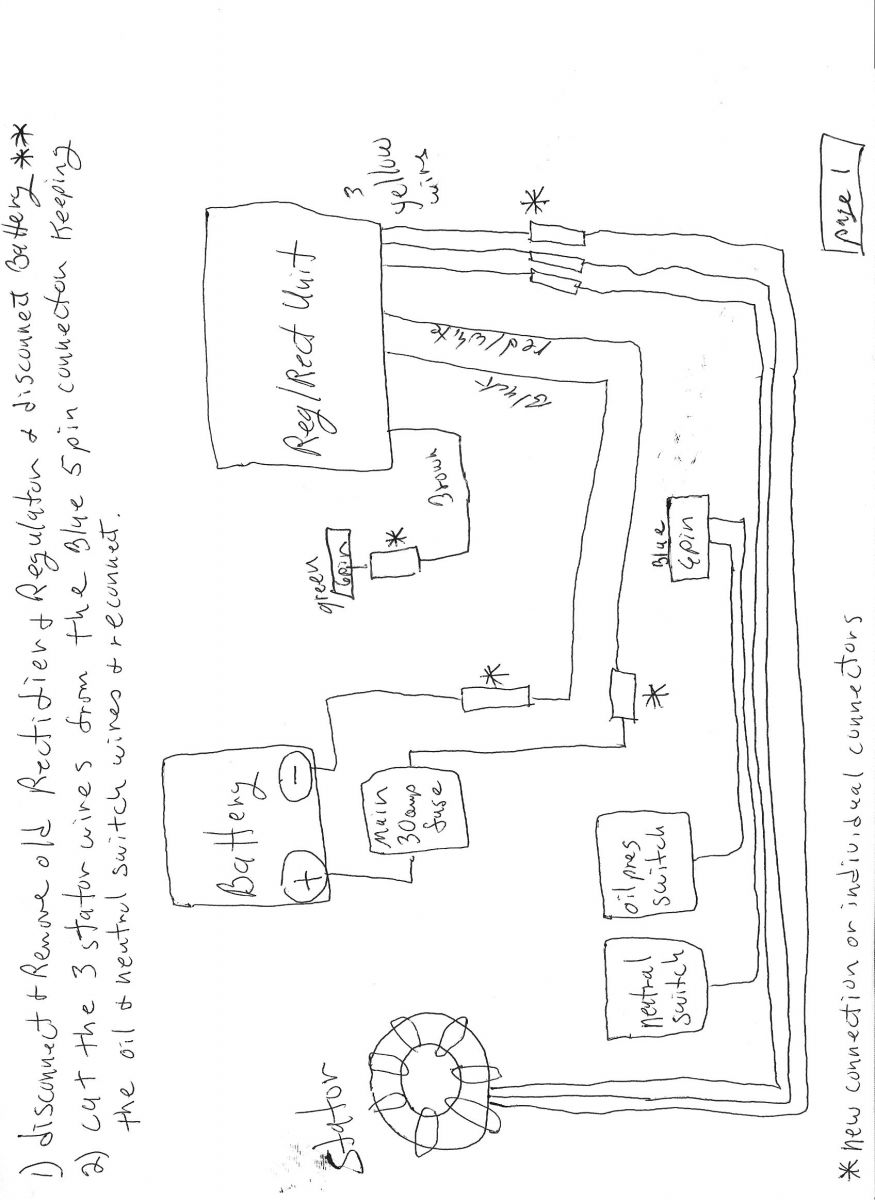

Please Log in or Create an account to join the conversation.
- JimB
- Topic Author
- Offline
- User
Less
More
- Posts: 134
- Thank you received: 9
17 May 2015 07:23 #672473
by JimB
1978 KZ1000A2, 1980 KZ1000E, 1980 KZ1000B4 LTD
Replied by JimB on topic Regulator Rectifier installation
The one I bought from Z1 does not have the sensing line.
Jim
Jim
Attachment z1regrecunit.png not found
1978 KZ1000A2, 1980 KZ1000E, 1980 KZ1000B4 LTD
Attachments:
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
17 May 2015 07:27 #672476
by SWest
Replied by SWest on topic Regulator Rectifier installation
Pic of your connecting blocks and old mounts. Did you have separate regulator/rectifier? Did the give you instructions?
Steve
Steve
Please Log in or Create an account to join the conversation.
- JimB
- Topic Author
- Offline
- User
Less
More
- Posts: 134
- Thank you received: 9
17 May 2015 15:10 #672530
by JimB
1978 KZ1000A2, 1980 KZ1000E, 1980 KZ1000B4 LTD
Replied by JimB on topic Regulator Rectifier installation
OK,...So I removed the Reg/Rec from the bike and checked out my splice job. It turns out that a couple of wires were not connected properly. So, I re-crimped the wires and everything appears to be working fine now. Eventually I plan to solder the wires but for now the bike is good for riding and the weather is nce out so I'll put that on my to do list.
Thanks everyone.
Jim
Thanks everyone.
Jim
1978 KZ1000A2, 1980 KZ1000E, 1980 KZ1000B4 LTD
