Mystery wires in headlamp bucket; reserve lighting
- rokit_armor
-
Topic Author
- Offline
- User
-
Registered
- Posts: 138
- Thanks: 13
Mystery wires in headlamp bucket; reserve lighting
14 Nov 2014 20:40

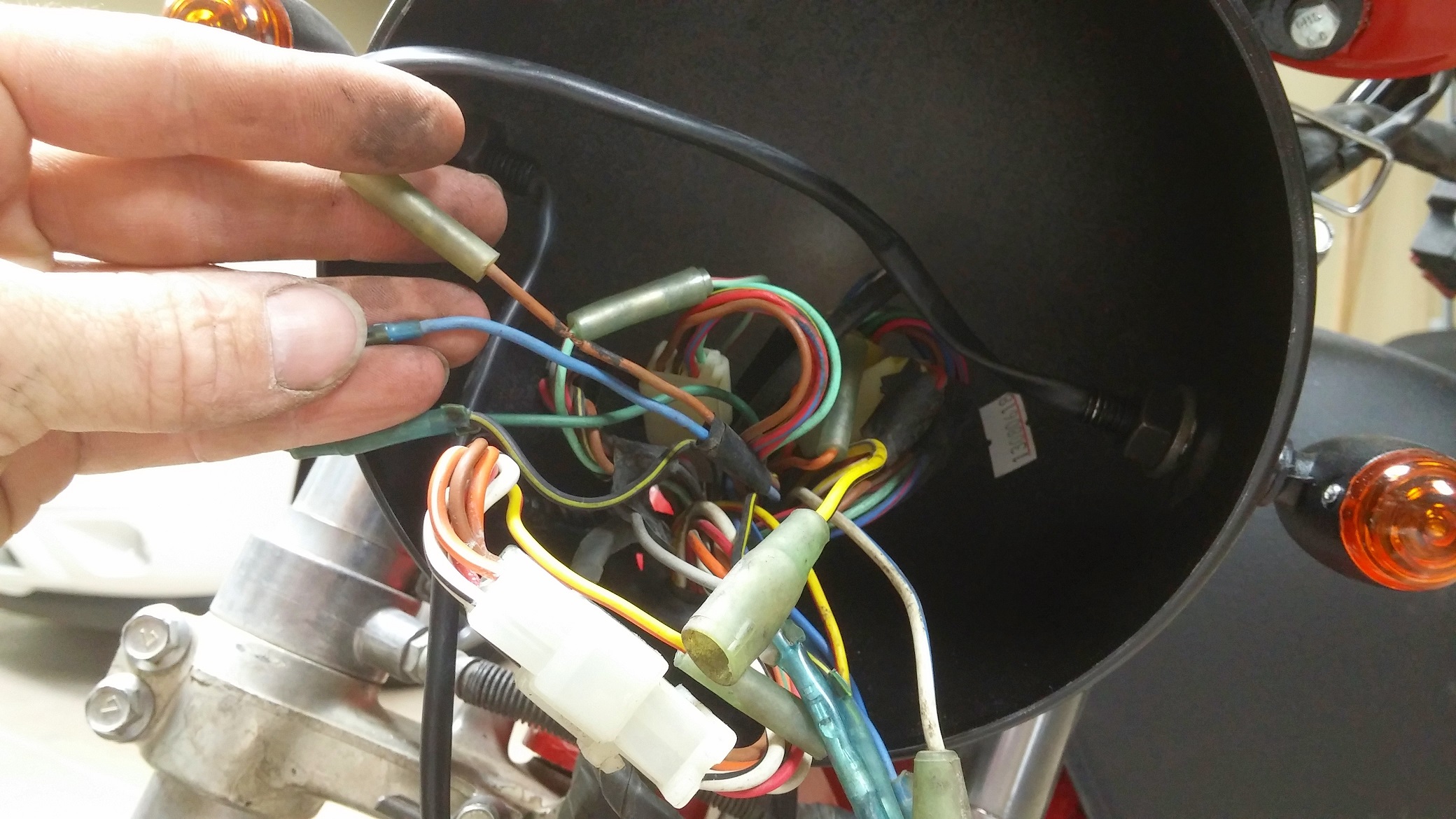

So I have most of the wiring figured out on this thing, but there are a few wires in the headlamp bucket that I have no idea where they go. There are only 6 wires left not connected, two blue/female bullet ends that I believe go to the 'running' filament of the turn signals which my aftermarket ones do not have, the accessory + and - dual connections, and a blue/male bullet and brown/female bullet which are the two in question.
Anyone know where these go to or if i even need to plug them into anything?
Also, I did not get the reserve lighting module for the bike, I can get one but would rather bypass it, can this be done?
Anyone know where these go to or if i even need to plug them into anything?
Also, I did not get the reserve lighting module for the bike, I can get one but would rather bypass it, can this be done?
