New tail light/turn signal
- schmjj01
- Topic Author
- Offline
- User
Less
More
08 Mar 2014 14:24 #624540
by schmjj01
1982 KZ550 c LTD no modifications done yet!
New tail light/turn signal was created by schmjj01
Ok for the life of me for some reason I can not figure this out...
Can anyone help me with how to wire a new tail light/turn signal assembly on my 82 KZ550c? The new assembly has 5 wires (red, black, green, yellow and whit) my bike has seven wires (black/yellow, blue/red, green for tail lights and green, tan and two black/yellow). I got it to were I can make the new assembly light up but it will not get brighter for braking. I would appreciate any help I can get on this. I think I'm just having a bad day but getting frustrated and thought id just ask for some help. Thank you
Can anyone help me with how to wire a new tail light/turn signal assembly on my 82 KZ550c? The new assembly has 5 wires (red, black, green, yellow and whit) my bike has seven wires (black/yellow, blue/red, green for tail lights and green, tan and two black/yellow). I got it to were I can make the new assembly light up but it will not get brighter for braking. I would appreciate any help I can get on this. I think I'm just having a bad day but getting frustrated and thought id just ask for some help. Thank you
1982 KZ550 c LTD no modifications done yet!
Please Log in or Create an account to join the conversation.
- StreetfighterKz
- Offline
- User
Less
More
- Posts: 1510
- Thank you received: 117
08 Mar 2014 15:18 - 08 Mar 2014 15:19 #624550
by StreetfighterKz
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
Replied by StreetfighterKz on topic New tail light/turn signal
I'm going strictly from memory and not sure exactly what wires do what on your light (no idea what light you are using or where you got it) but....
Black/yellow > Black (Ground)
Blue/red > ? (Brake light)
Brown > ? (Tail/running light)
Green > ? (L or R turn signal)
Grey > ? (other turn signal)
2 black/yellow (not used, were separate signal grounds)
Not sure if that helps or not.
Later, Doug
Black/yellow > Black (Ground)
Blue/red > ? (Brake light)
Brown > ? (Tail/running light)
Green > ? (L or R turn signal)
Grey > ? (other turn signal)
2 black/yellow (not used, were separate signal grounds)
Not sure if that helps or not.
Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
Last edit: 08 Mar 2014 15:19 by StreetfighterKz.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
08 Mar 2014 16:25 - 08 Mar 2014 16:31 #624553
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic New tail light/turn signal
Here's a link to the wiring diagram in KZr's FILEBASE:
www.kzrider.com/filebase/search/finish/1-general/281-z550c3
Good Fortune!
www.kzrider.com/filebase/search/finish/1-general/281-z550c3
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 08 Mar 2014 16:31 by Patton.
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
Less
More
- Posts: 6650
- Thank you received: 540
08 Mar 2014 19:29 #624572
by MFolks
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Replied by MFolks on topic New tail light/turn signal
Color Codes On Most Kawasaki’s (written for 1980’s bikes)
HEADLIGHT
RED with BLACK stripe, High Beam.
RED with YELLOW stripe, Low Beam.
BLACK with YELLOW stripe, the ground circuit.
BRAKE/TAIL LIGHT Can be an # 1157 dual filament bulb
RED, Running or Tail Light.
BLUE,(sometimes with a Red stripe) Brake Light Circuit.
BLACK with YELLOW stripe, the ground circuit.
LEFT FRONT TURN SIGNAL Can be an #1157 dual filament bulb
GREEN, Left front turn signal circuit.
BLUE, Left front running light circuit.
BLACK with YELLOW stripe, the ground circuit.
RIGHT FRONT TURN SIGNAL Can be an # 1157 dual filament bulb
GREY, Right front turn signal circuit.
BLUE, Right front running light circuit.
BLACK with YELLOW stripe, the ground circuit.
LEFT REAR TURN SIGNAL Can be an #1156 single filament bulb
GREEN, Left rear turn signal circuit.
BLACK with YELLOW stripe, the ground circuit.
RIGHT REAR TURN SIGNAL Can be an #1156 single filament bulb
GREY, Right rear turn signal circuit.
BLACK with YELLOW stripe, the ground circuit.
HEADLIGHT
RED with BLACK stripe, High Beam.
RED with YELLOW stripe, Low Beam.
BLACK with YELLOW stripe, the ground circuit.
BRAKE/TAIL LIGHT Can be an # 1157 dual filament bulb
RED, Running or Tail Light.
BLUE,(sometimes with a Red stripe) Brake Light Circuit.
BLACK with YELLOW stripe, the ground circuit.
LEFT FRONT TURN SIGNAL Can be an #1157 dual filament bulb
GREEN, Left front turn signal circuit.
BLUE, Left front running light circuit.
BLACK with YELLOW stripe, the ground circuit.
RIGHT FRONT TURN SIGNAL Can be an # 1157 dual filament bulb
GREY, Right front turn signal circuit.
BLUE, Right front running light circuit.
BLACK with YELLOW stripe, the ground circuit.
LEFT REAR TURN SIGNAL Can be an #1156 single filament bulb
GREEN, Left rear turn signal circuit.
BLACK with YELLOW stripe, the ground circuit.
RIGHT REAR TURN SIGNAL Can be an #1156 single filament bulb
GREY, Right rear turn signal circuit.
BLACK with YELLOW stripe, the ground circuit.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
Less
More
- Posts: 7246
- Thank you received: 337
08 Mar 2014 20:33 #624579
by bountyhunter
power tail running lamp
power tail brake lamp
power left turn
power right turn
1979 KZ-750 Twin
Replied by bountyhunter on topic New tail light/turn signal
My guess is that black is ground, and the other four wires are:schmjj01 wrote: Ok for the life of me for some reason I can not figure this out...
Can anyone help me with how to wire a new tail light/turn signal assembly on my 82 KZ550c? The new assembly has 5 wires (red, black, green, yellow and whit)
power tail running lamp
power tail brake lamp
power left turn
power right turn
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
08 Mar 2014 21:23 - 08 Mar 2014 21:25 #624582
by Patton

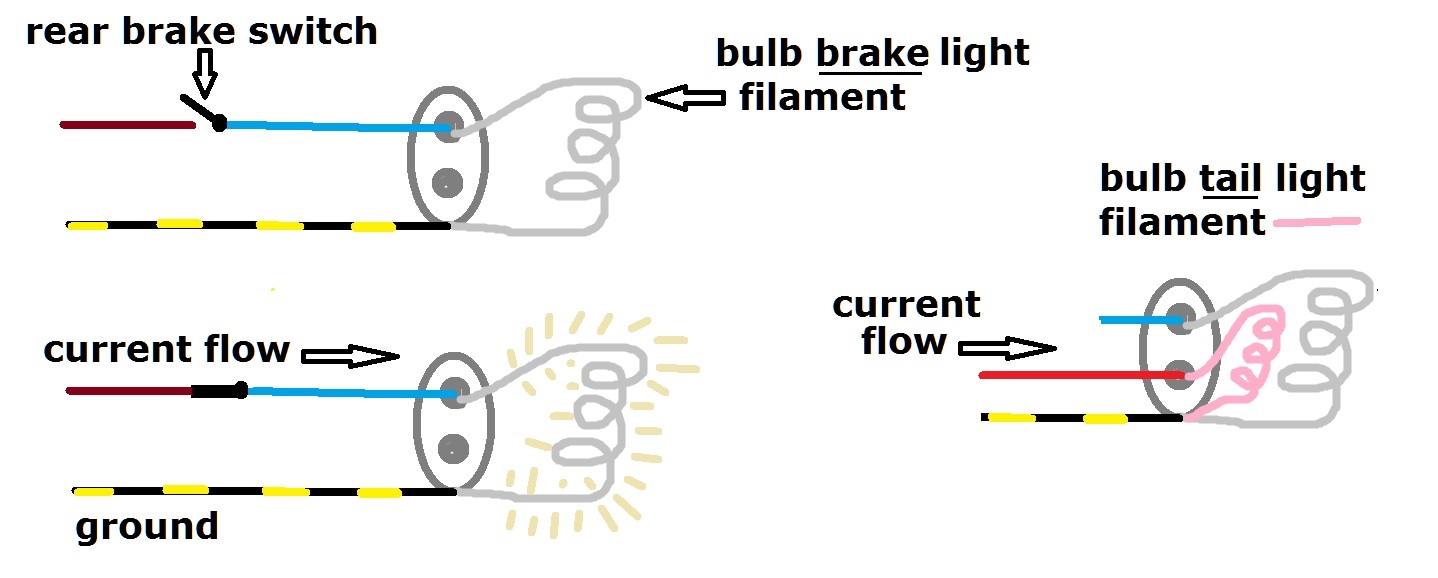

There should be a brown wire (hot) into the rear brake switch, and a blue wire from the switch to the brake light filament in the rear bulb.
When the brake pedal is pressed down, it's supposed to activate the rear brake switch, which connects hot brown > blue > rear bulb brake filament > black/yellow > ground.
[It'll be okay for OMR to tell us all how much he loves this illustration. :laugh: ]
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic New tail light/turn signal
schmjj01 wrote: ... I got it to were I can make the new assembly light up but it will not get brighter for braking....
There should be a brown wire (hot) into the rear brake switch, and a blue wire from the switch to the brake light filament in the rear bulb.
When the brake pedal is pressed down, it's supposed to activate the rear brake switch, which connects hot brown > blue > rear bulb brake filament > black/yellow > ground.
[It'll be okay for OMR to tell us all how much he loves this illustration. :laugh: ]
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 08 Mar 2014 21:25 by Patton.
