- Posts: 34
- Thank you received: 0
New solenoid wires are different colors but why???
- pnedac
- Topic Author
- Offline
- User
Less
More
01 Nov 2013 11:43 #611820
by pnedac
78 KZ650 B
New solenoid wires are different colors but why??? was created by pnedac
Got a new starter solenoid. The original was yellow/red and a black and the new one is yellow/red and a RED. This is a direct replacement and looks identical except for the color of the one wire. Does the red wire go to the black wire from before? I would imagine so, but just checking to see if anyone else has run itno this in the past.
Any help is appreciated.
Pnedac
Any help is appreciated.
Pnedac
78 KZ650 B
Please Log in or Create an account to join the conversation.
- OnkelB
- Offline
- User
Less
More
- Posts: 1011
- Thank you received: 80
01 Nov 2013 12:23 #611821
by OnkelB
77 KZ 650 B1, 82 GPz 1100 B2.
Replied by OnkelB on topic New solenoid wires are different colors but why???

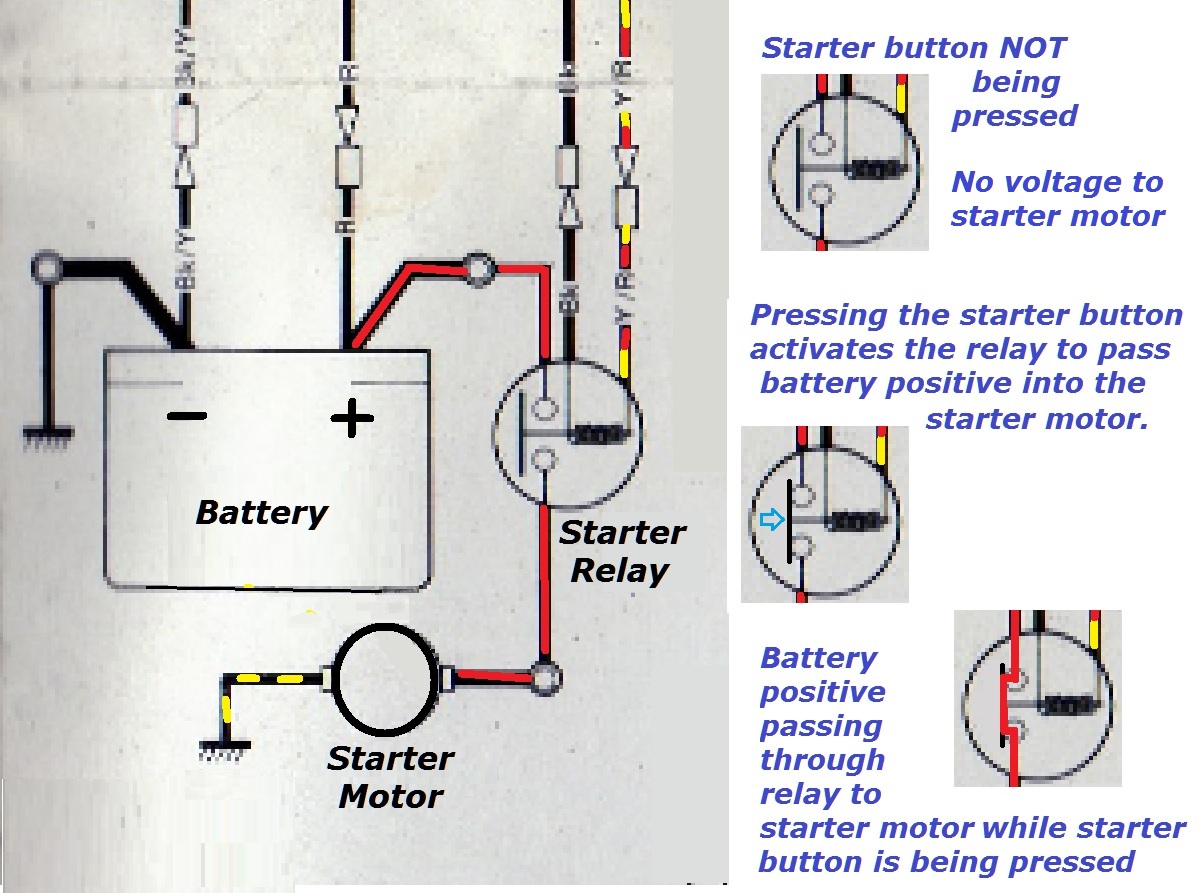

The solenoid is a really simple layout, a winding with a movable anchor inside. When you press the start button, current runs through the windings and the anchor moves. The upper end of the anchor has a metal bar attached to it, when the anchor moves the bar contacts the bottom of the lugs and closes the circuit between the battery and the starter motor. When you release the start button again the anchor (and bar) pulls back and the circuit is interrupted.
I believe it will work connected either way, but I would start hooking it up the way you describe: black to red and red/yellow to ground. If it works you're fine, if it doesn't just reverse the wires, you can't fry anything.
I believe it will work connected either way, but I would start hooking it up the way you describe: black to red and red/yellow to ground. If it works you're fine, if it doesn't just reverse the wires, you can't fry anything.
77 KZ 650 B1, 82 GPz 1100 B2.
Please Log in or Create an account to join the conversation.
- slayer61
- Offline
- User
- KZR FLAG RELAY CARRIER #62
01 Nov 2013 12:35 #611823
by slayer61
Don't be ridiculous! It's only a flesh wound!
[strike]Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit[/strike]
Wife's BIG bike......[strike] 1981 GPZ 1100 Kerker and [strike]factory FI[/strike] Mikuni RS34s W/ K&N pods[/strike] SOLD
Replied by slayer61 on topic New solenoid wires are different colors but why???
Just to add to the confusion :S a coil doesn't have polarity. It will work either way. All it needs to see is a "difference in potential" across the two wires. I've been telling people for years... " Electricity doesn't care what color the wire is! "
Don't be ridiculous! It's only a flesh wound!
[strike]Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit[/strike]
Wife's BIG bike......[strike] 1981 GPZ 1100 Kerker and [strike]factory FI[/strike] Mikuni RS34s W/ K&N pods[/strike] SOLD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
01 Nov 2013 13:24 #611833
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic New solenoid wires are different colors but why???
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- pnedac
- Topic Author
- Offline
- User
Less
More
- Posts: 34
- Thank you received: 0
01 Nov 2013 14:02 #611840
by pnedac
78 KZ650 B
Replied by pnedac on topic New solenoid wires are different colors but why???
You guys are fantastic! Thank you kindly for your input and I will do my worst!
78 KZ650 B
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
01 Nov 2013 22:22 #611877
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic New solenoid wires are different colors but why???
For some reason, Kawasaki chose really poor colors for the starter solenoid on many KZ's. They put the black wire as the positive, and the yellow/red wire as the ground. I think this was a result of choosing black as the wire color for the clutch lever interlock switch.
I usually swap the wires around so black is ground and yellow/red is positivie, without any issues.
I usually swap the wires around so black is ground and yellow/red is positivie, without any issues.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
