Headlight / Switch pod was created by Schmeck
Hello, So my 1979 kz750 twin headlight stopped coming on awhile back and after sorting out other issues I can finally work on this one. My headlight comes on when hooked up to my truck, But not when hooked up to the bike. Fuses are good, 3 prong plug to headlight was just replaced, and I have alittle bit of voltage in my switch pod.I set the meter to 20v and I get 0.652. From what I can see the switch box is faulty. All of the wires read the same voltage .Considering everything else works except the headlight, I want to say its the switch pod. Can anyone back this theory up? I will replace the switch if that is the issue. -Tyler
Btw- front turn signals were removed if that has anything to do with the circuit.
Btw- front turn signals were removed if that has anything to do with the circuit.
1979 kz750 twin -Soon to be roadworthy
1988 El250 engine in custom hard tail frame - collecting dust
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
Less
More
- Posts: 7246
- Thank you received: 337
25 Aug 2013 03:07 - 25 Aug 2013 03:08 #602952
by bountyhunter
1979 KZ-750 Twin
Replied by bountyhunter on topic Headlight / Switch pod

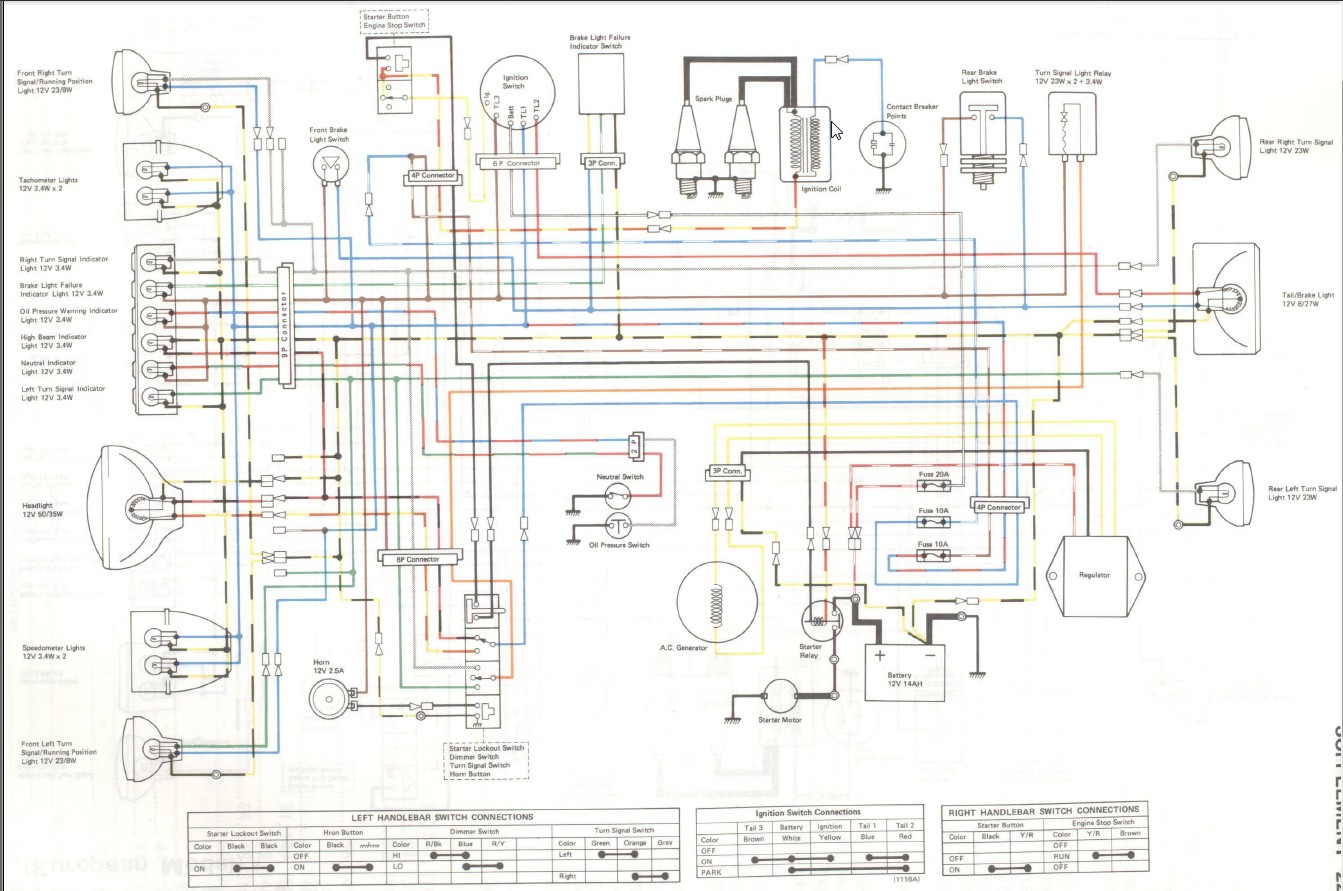

Wiring diagram for the 79 750 twin. Could be a switch or a harness connector or a fuse connection or just about any connection point.
1979 KZ-750 Twin
Last edit: 25 Aug 2013 03:08 by bountyhunter.
The following user(s) said Thank You: Schmeck
Please Log in or Create an account to join the conversation.
- Schmeck
- Topic Author
- Offline
- User
Less
More
- Posts: 350
- Thank you received: 0
25 Aug 2013 15:59 #603013
by Schmeck
1979 kz750 twin -Soon to be roadworthy
1988 El250 engine in custom hard tail frame - collecting dust
Replied by Schmeck on topic Headlight / Switch pod
Thanks alot for the diagram . The one I have was printed so its hard to read . Headlight is on. yes
1979 kz750 twin -Soon to be roadworthy
1988 El250 engine in custom hard tail frame - collecting dust
Please Log in or Create an account to join the conversation.
