77 kz650B1 diagram check
- NickMac
- Topic Author
- Offline
- User
Less
More
06 Aug 2013 18:28 #600125
by NickMac
77 kz650B1 diagram check was created by NickMac
I am rebuilding my harness using the barebones diagrams on this site and have included the wired george coil mod. I drew up a diagram and i want to make sure it looks okay too you guys before I start putting it together.
thanks!
thanks!
Attachment SCAN0001.JPG not found
Attachments:
Please Log in or Create an account to join the conversation.
- btchalice
- Offline
- User
Less
More
- Posts: 760
- Thank you received: 7
08 Aug 2013 02:01 #600365
by btchalice
Terry Meyer / Wichita KS
76 kz900 w/1000 motor TWZTD
I am not driving too fast, I'm flying too low.
Replied by btchalice on topic 77 kz650B1 diagram check

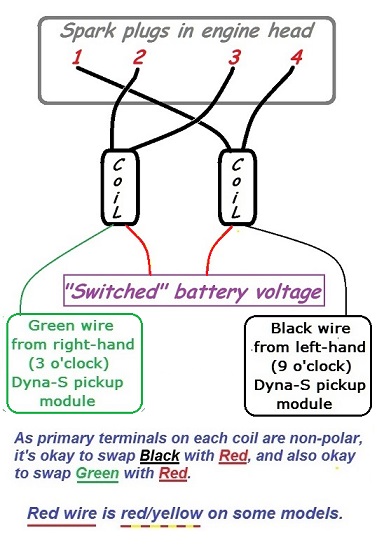

not sure how the dyna wires up but from what i can see there you have a few issues with it , ill see if i can find a diagram that will work
Terry Meyer / Wichita KS
76 kz900 w/1000 motor TWZTD
I am not driving too fast, I'm flying too low.
Please Log in or Create an account to join the conversation.
- btchalice
- Offline
- User
Less
More
- Posts: 760
- Thank you received: 7
08 Aug 2013 02:38 #600366
by btchalice
Terry Meyer / Wichita KS
76 kz900 w/1000 motor TWZTD
I am not driving too fast, I'm flying too low.
Replied by btchalice on topic 77 kz650B1 diagram check
i modified someones diagram from another thread one with and one without the wg coil mod
what you had was missing a power source for the relay and the starter. plus the wgmod for the coils uses a relay to direct link the coil to the battery for hottest spark.
if i'm wrong i'm sure someone will correct me
Attachment barebones.gif not found
Attachment barebonesplusswgmod.gif not found
what you had was missing a power source for the relay and the starter. plus the wgmod for the coils uses a relay to direct link the coil to the battery for hottest spark.
if i'm wrong i'm sure someone will correct me
Terry Meyer / Wichita KS
76 kz900 w/1000 motor TWZTD
I am not driving too fast, I'm flying too low.
Attachments:
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
- NickMac
- Topic Author
- Offline
- User
Less
More
- Posts: 33
- Thank you received: 0
08 Aug 2013 15:32 - 08 Aug 2013 15:41 #600438
by NickMac
Replied by NickMac on topic 77 kz650B1 diagram check
I appreciate your response and that clarified the relay greatly. Could you explain the purpose of have two sources of power for the starter solenoid? I haven't seen this on other diagrams. I see one directly from the battery and another from the relay. Am i missing something?
loudhvx wrote: 1977 KZ650 C1 for JohnnyC
btchalice wrote: i modified someones diagram from another thread one with and one without the wg coil mod
Attachment barebones.gif not found
Attachment barebonesplusswgmod.gif not found
what you had was missing a power source for the relay and the starter. plus the wgmod for the coils uses a relay to direct link the coil to the battery for hottest spark.
if i'm wrong i'm sure someone will correct me
Last edit: 08 Aug 2013 15:41 by NickMac.
Please Log in or Create an account to join the conversation.
- btchalice
- Offline
- User
Less
More
- Posts: 760
- Thank you received: 7
09 Aug 2013 01:35 - 09 Aug 2013 01:36 #600538
by btchalice
Terry Meyer / Wichita KS
76 kz900 w/1000 motor TWZTD
I am not driving too fast, I'm flying too low.
Replied by btchalice on topic 77 kz650B1 diagram check
the main wire to the solenoid is main battery power that connects to the starter when active. the other is to activate the magnet inside the solenoid to turn it on
i just added the wire from the relay to the solenoid to show a good source of power for the wg mod
i just added the wire from the relay to the solenoid to show a good source of power for the wg mod
Terry Meyer / Wichita KS
76 kz900 w/1000 motor TWZTD
I am not driving too fast, I'm flying too low.
Last edit: 09 Aug 2013 01:36 by btchalice.
Please Log in or Create an account to join the conversation.
- NickMac
- Topic Author
- Offline
- User
Less
More
- Posts: 33
- Thank you received: 0
09 Aug 2013 03:05 #600550
by NickMac
Replied by NickMac on topic 77 kz650B1 diagram check
makes sense. I appreciate it!
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
09 Aug 2013 18:45 - 09 Aug 2013 19:25 #600623
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic 77 kz650B1 diagram check
None of those diagrams will work for a 1977 KZ650 as drawn except the C1 for Johnny C. They all need various changes, and the Johnny C version uses a different ignition switch and no relay.
Let me see if I can dig one up, or just draw one from scratch.
Some relays have two 87 contacts. Either one can be used.
Some relays have an 87 and 87a contact. Don't use 87a.
I posted it on the Mattylight thread, and linked it here:
Let me see if I can dig one up, or just draw one from scratch.
Some relays have two 87 contacts. Either one can be used.
Some relays have an 87 and 87a contact. Don't use 87a.
I posted it on the Mattylight thread, and linked it here:
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Last edit: 09 Aug 2013 19:25 by loudhvx.
Please Log in or Create an account to join the conversation.
- btchalice
- Offline
- User
Less
More
- Posts: 760
- Thank you received: 7
10 Aug 2013 02:55 #600658
by btchalice
Terry Meyer / Wichita KS
76 kz900 w/1000 motor TWZTD
I am not driving too fast, I'm flying too low.
Replied by btchalice on topic 77 kz650B1 diagram check
like i said if i have it wrong somebody would correct me you can trust loudhvx he knows his stuff
