80 kz750ltd h1
- kzrider616
- Topic Author
- Offline
- User
Less
More
06 Aug 2013 14:59 #600104
by kzrider616
80 kz750ltd h1 was created by kzrider616
can ne one tell me where the two wires (one yell/red the other black), running out of the starter relay go to? Again 80 z750 ltd h1 four cylinder. I havethe diagram only im still having trouble and im almost doooone. Cant wait to fire her up
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
06 Aug 2013 15:19 #600105
by Patton
Hello, kzrider616, and WELCOME to the forum!
The excellent wiring diagram in KZr's FILEBASE shows connections of the wires in question.
Here's a link to the diagram:
Click > www.kzrider.com/filebase/doc_download/293-kz750h1
Or may access the FILEBASE, then navigate 1st to the year, 2nd to the model, and 3rd to the desired topic.

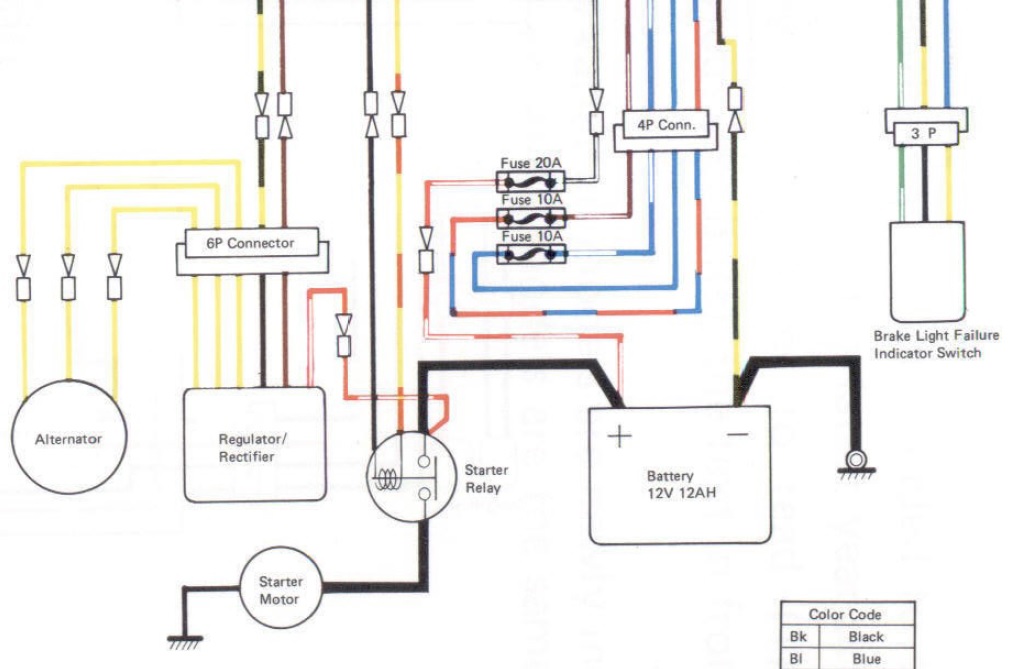

Here's an excerpt:
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic 80 kz750ltd h1
kzrider616 wrote: can ne one tell me where the two wires (one yell/red the other black), running out of the starter relay go to? Again 80 z750 ltd h1 four cylinder. I havethe diagram only im still having trouble and im almost doooone. Cant wait to fire her up
Hello, kzrider616, and WELCOME to the forum!
The excellent wiring diagram in KZr's FILEBASE shows connections of the wires in question.
Here's a link to the diagram:
Click > www.kzrider.com/filebase/doc_download/293-kz750h1
Or may access the FILEBASE, then navigate 1st to the year, 2nd to the model, and 3rd to the desired topic.
Attachment filebasekzr.jpg not found
Here's an excerpt:
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- gd4now
- Offline
- User
- Denco where did you go?
Less
More
- Posts: 1380
- Thank you received: 436
06 Aug 2013 15:30 #600106
by gd4now
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Replied by gd4now on topic 80 kz750ltd h1
According to the wiring diagram, the black lead goes to the starter lock out switch, either at the clutch lever or the side stand - I am not sure which one it is on that model. But it is one or the other.
There is a red/yellow lead but not a solid yellow lead? The red/yellow lead connects to the black/yellow ground cirucit.
There is a red/yellow lead but not a solid yellow lead? The red/yellow lead connects to the black/yellow ground cirucit.
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Please Log in or Create an account to join the conversation.
- kzrider616
- Topic Author
- Offline
- User
Less
More
- Posts: 2
- Thank you received: 0
06 Aug 2013 18:46 #600129
by kzrider616
Replied by kzrider616 on topic 80 kz750ltd h1
Ok so i got that figured out now i need to know if i can usemy78 gl1000 coils (tec101-12v), on the kz if i get rid of the resistor?
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
06 Aug 2013 20:27 #600147
by Patton
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic 80 kz750ltd h1
Ant dual-tower ignition coil having primary resistance per FSM specs should suffice.kzrider616 wrote: Ok so i got that figured out now i need to know if i can usemy78 gl1000 coils (tec101-12v), on the kz if i get rid of the resistor?
Good Fortune!
1973 Z1
KZ900 LTD
