76 Z1 No Charge

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 15333
  • Thanks: 2833

Re: 76 Z1 No Charge

31 May 2013 22:22
#590161
76Zed1 wrote: Yes it is a 76 z1. I am not sure if the kz and the z1 are the one in the same.

Kawasaki did not make any Z1 models in 1976. 1975 was the last Z1. If it is a 1976 bike it is a KZ900. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • User
  • User
    Registered
  • I bleed premix
  • Posts: 1913
  • Thanks: 243

Re: 76 Z1 No Charge

31 May 2013 22:32
#590164
650ed wrote:
76Zed1 wrote: Yes it is a 76 z1. I am not sure if the kz and the z1 are the one in the same.

Kawasaki did not make any Z1 models in 1976. 1975 was the last Z1. If it is a 1976 bike it is a KZ900. Ed

Not to mention the bike you posted is a complete custom. Who the F can tell whats what?
1975 Z1 900
1994 KX250 Supermoto
2004 KX125

Please Log in or Create an account to join the conversation.

  • mopguy
  • mopguy's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 727
  • Thanks: 167

Re: 76 Z1 No Charge

31 May 2013 23:04
#590175
Maybe you need a new battery, how old is your battery?
I have a 1980 Kawasaki KZ750 Ltd. I bought new. I recently managed to get it out of my garage after 28 years and put it on the road again (2010). I feel like a kid all over again. Since I have acquired 3 78 KZ1000 Ltd, 1 1981 KZ1000 Ltd, and another 1980 KZ750 Ltd. Love the LTD's.

Please Log in or Create an account to join the conversation.

  • Old Man Rock
  • Old Man Rock's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 6074
  • Thanks: 225

Re: 76 Z1 No Charge

01 Jun 2013 08:28 - 01 Jun 2013 09:12
#590237

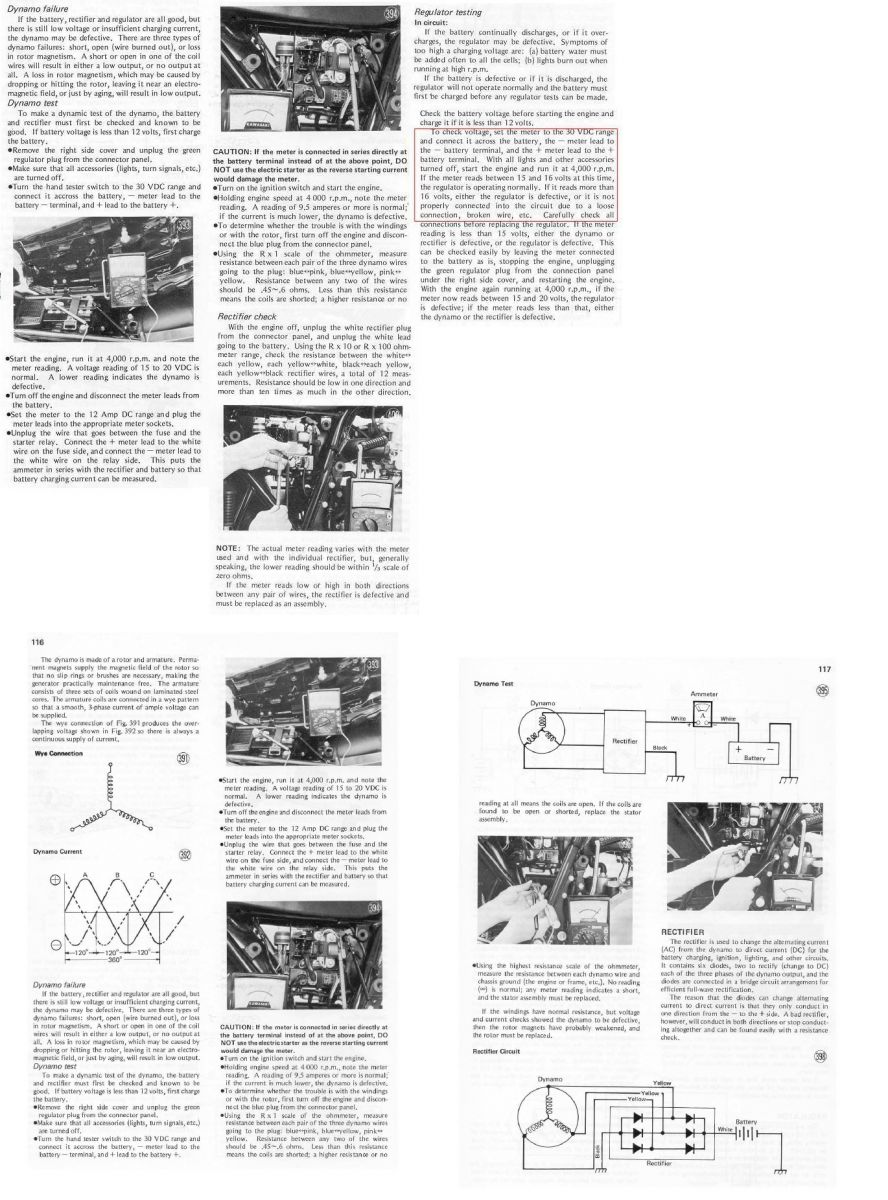

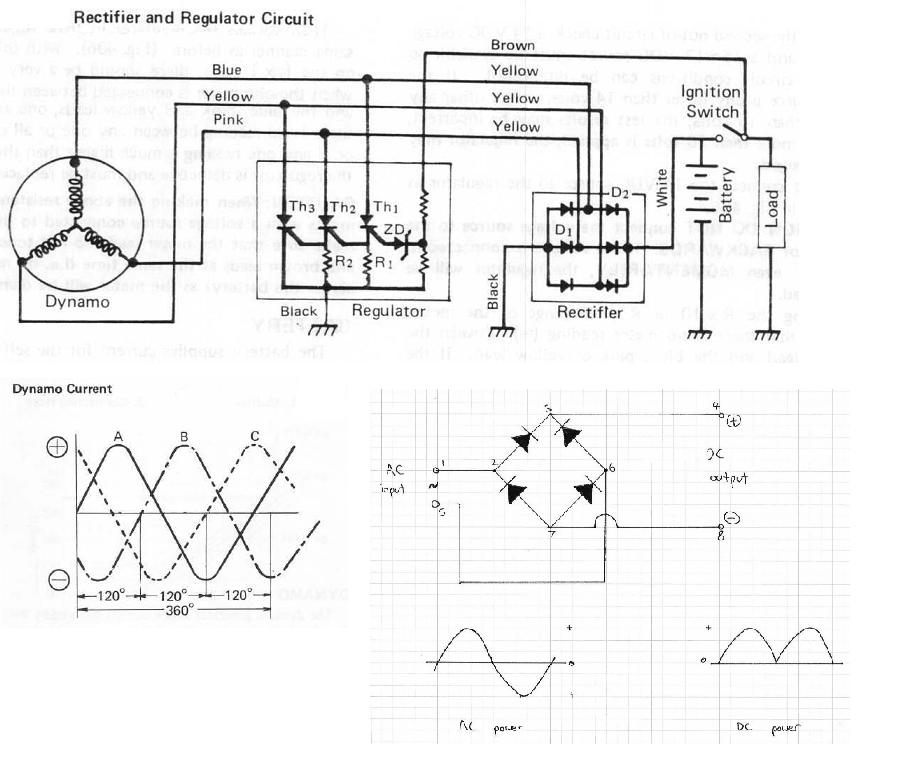

Possibly these will help....

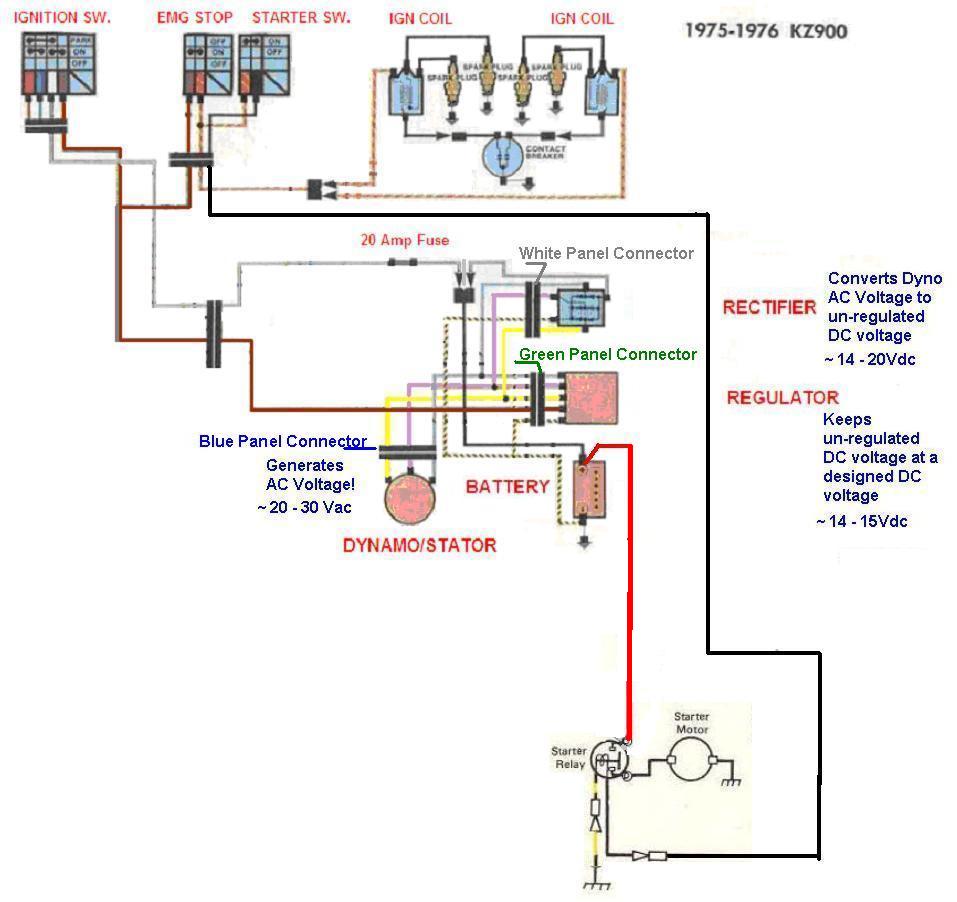

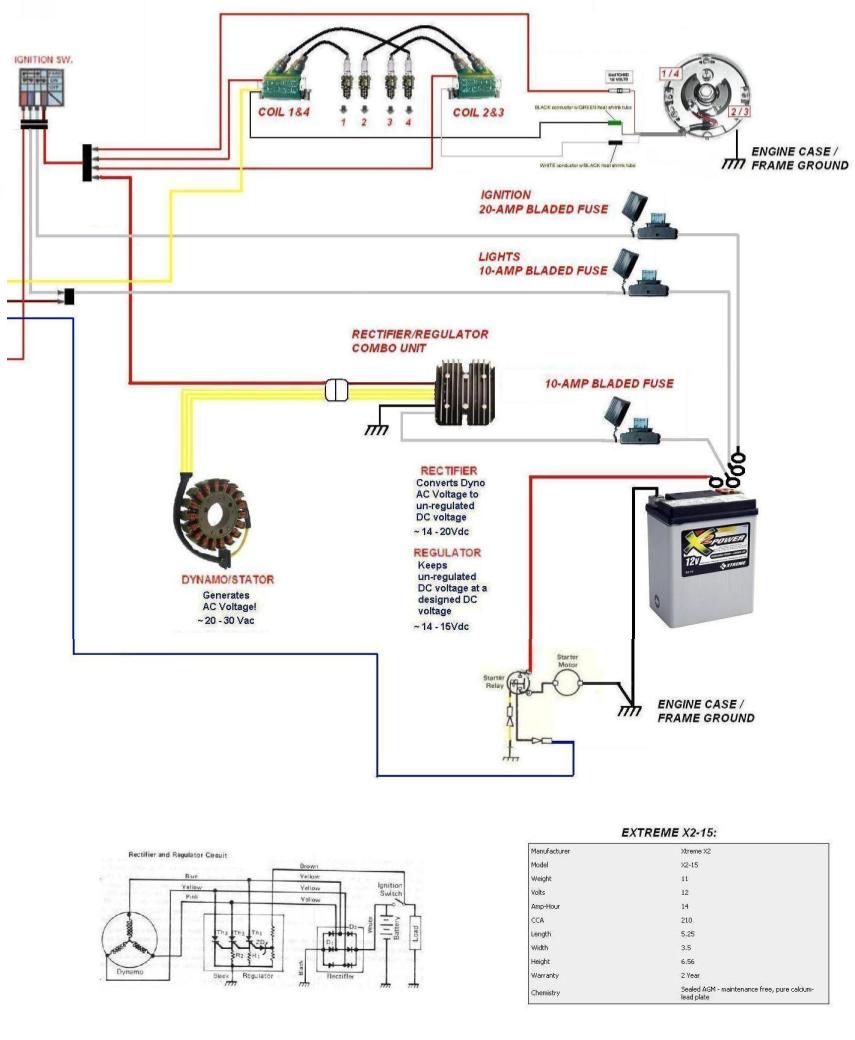

Latest rebuild... Simplified charging ckt drawing

1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az

Attachments:

Last edit: 01 Jun 2013 09:12 by Old Man Rock.
The following user(s) said Thank You: 76Zed1

Please Log in or Create an account to join the conversation.

  • 76Zed1
  • 76Zed1's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 6
  • Thanks: 0

Re: 76 Z1 No Charge

01 Jun 2013 15:27
#590302
Kidkawie

OFFLINE
I bleed premix
Posts: 1146
Thank you received: 50

650ed wrote:
76Zed1 wrote:
Yes it is a 76 z1. I am not sure if the kz and the z1 are the one in the same.

Kawasaki did not make any Z1 models in 1976. 1975 was the last Z1. If it is a 1976 bike it is a KZ900. Ed

Not to mention the bike you posted is a complete custom. Who the F can tell whats what?




Woah BUD. Thanks for the info. Sorry you could not figure out what kind of bike it is. That was not my intention. I did some research and located some numbers. The serial numbers as well as the title state it is a Z900. I appologize for claiming it is a Z1.

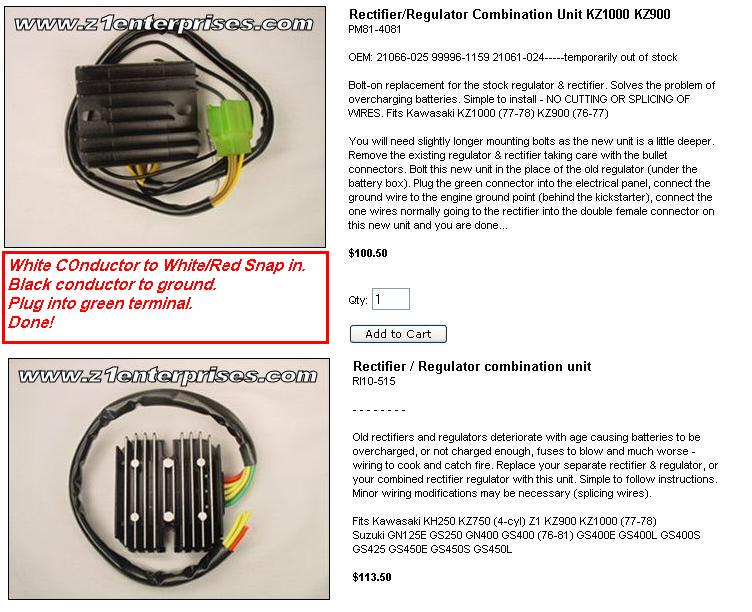

I do want to thank everyone that posted about the original problem. This was great information that helped get it diagnosed. Hopefully the stator/regulator will get it back on the road.

Please Log in or Create an account to join the conversation.

  • 76Zed1
  • 76Zed1's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 6
  • Thanks: 0

Re: 76 Z1 No Charge

01 Jun 2013 15:32
#590303
roy-b-boy-b wrote: Could you post a picture of the other side? Nice bike.

Attachments:

Please Log in or Create an account to join the conversation.

  • roy-b-boy-b
  • roy-b-boy-b's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 3246
  • Thanks: 103

Re: 76 Z1 No Charge

01 Jun 2013 21:21
#590342
Thanks.
1979 LTD Street Fighter.1977 KZ1000

Please Log in or Create an account to join the conversation.
