Recently I picked up a 1979 kz750 and I am attempting to reassemble the wiring. For the life of me I can not figure out where the blue wire coming out of the Pick Up Pulser Coil Points goes. Really new to this so I hope it is not a stupid question.
Any help on where this wire plugs in would be great. Pic even better!
Major big thanks in advance!
Larry
Recently I picked up a 1979 kz750 and I am attempting to reassemble the wiring. For the life of me I can not figure out where the blue wire coming out of the Pick Up Pulser Coil Points goes. Really new to this so I hope it is not a stupid question.
Any help on where this wire plugs in would be great. Pic even better!
Major big thanks in advance!
Larry
Please Log in or Create an account to join the conversation.
- Rainman
- Offline
- Sustaining Member
- and a little Kaw shall lead them
Less
More
- Posts: 597
- Thank you received: 75
27 May 2013 00:43 #589362
by Rainman
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Replied by Rainman on topic Kawasaki KZ750 Pick Up Pulser Coil Points Wire
Welcome Iroberts.
If your 79 KZ750 is the twin cylinder,stock it has points and the blue wire goes to the coil.

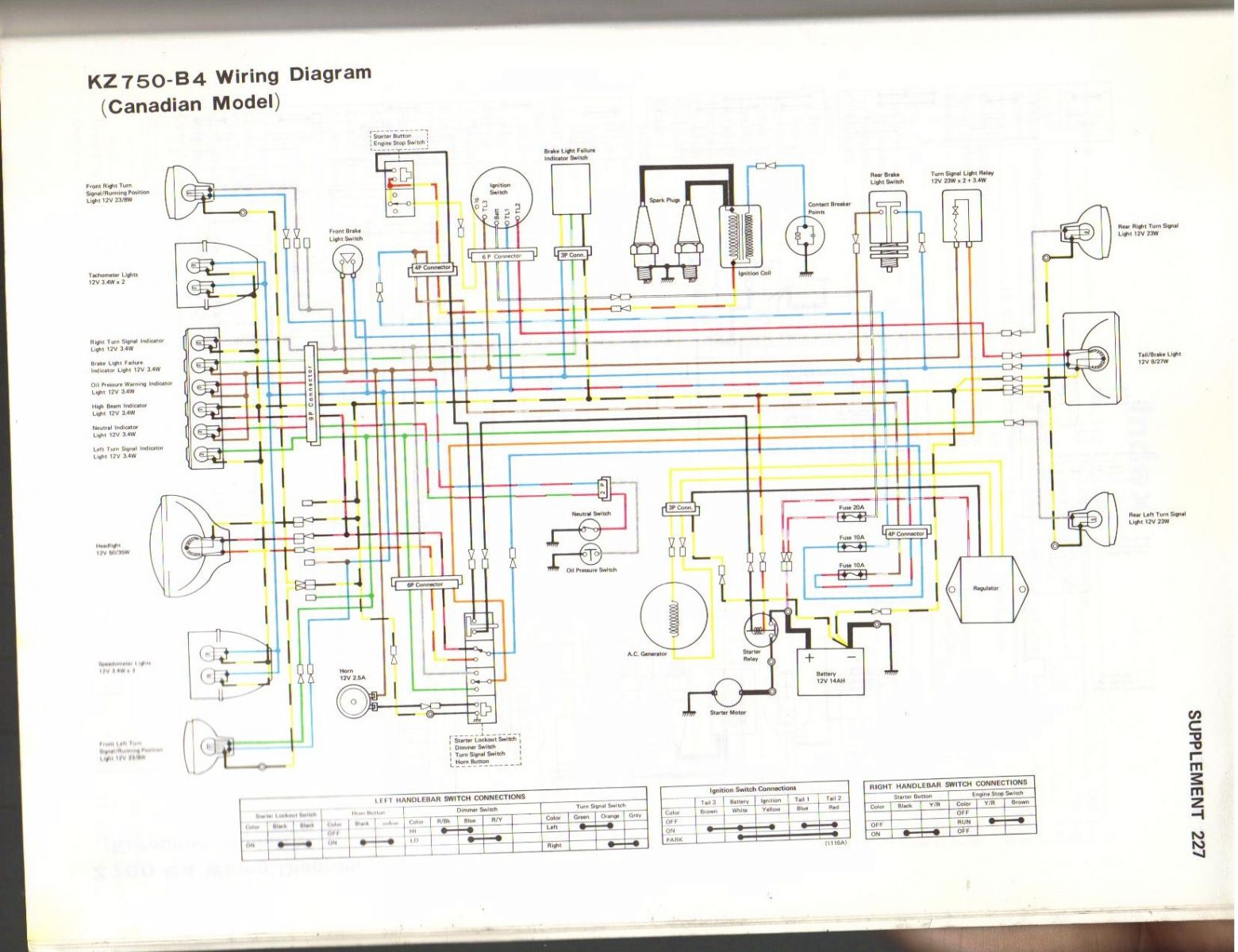

Attached is the wire diagram
