how do you test coil and dyna ignition on 78 b2
- dkoz
- Topic Author
- Offline
- User
Less
More
08 Apr 2013 11:02 #581177
by dkoz
1978 LTD B2 smashed
1978 Z1R D1
1978 A2
how do you test coil and dyna ignition on 78 b2 was created by dkoz
hello I cant seem to be able to get a proper reading on my multi meter while trying to check ohms on the coils....??bike has a dyna electronic ignition would aney one know how to check that?? thanks for any help
1978 LTD B2 smashed
1978 Z1R D1
1978 A2
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
08 Apr 2013 12:54 #581189
by Patton

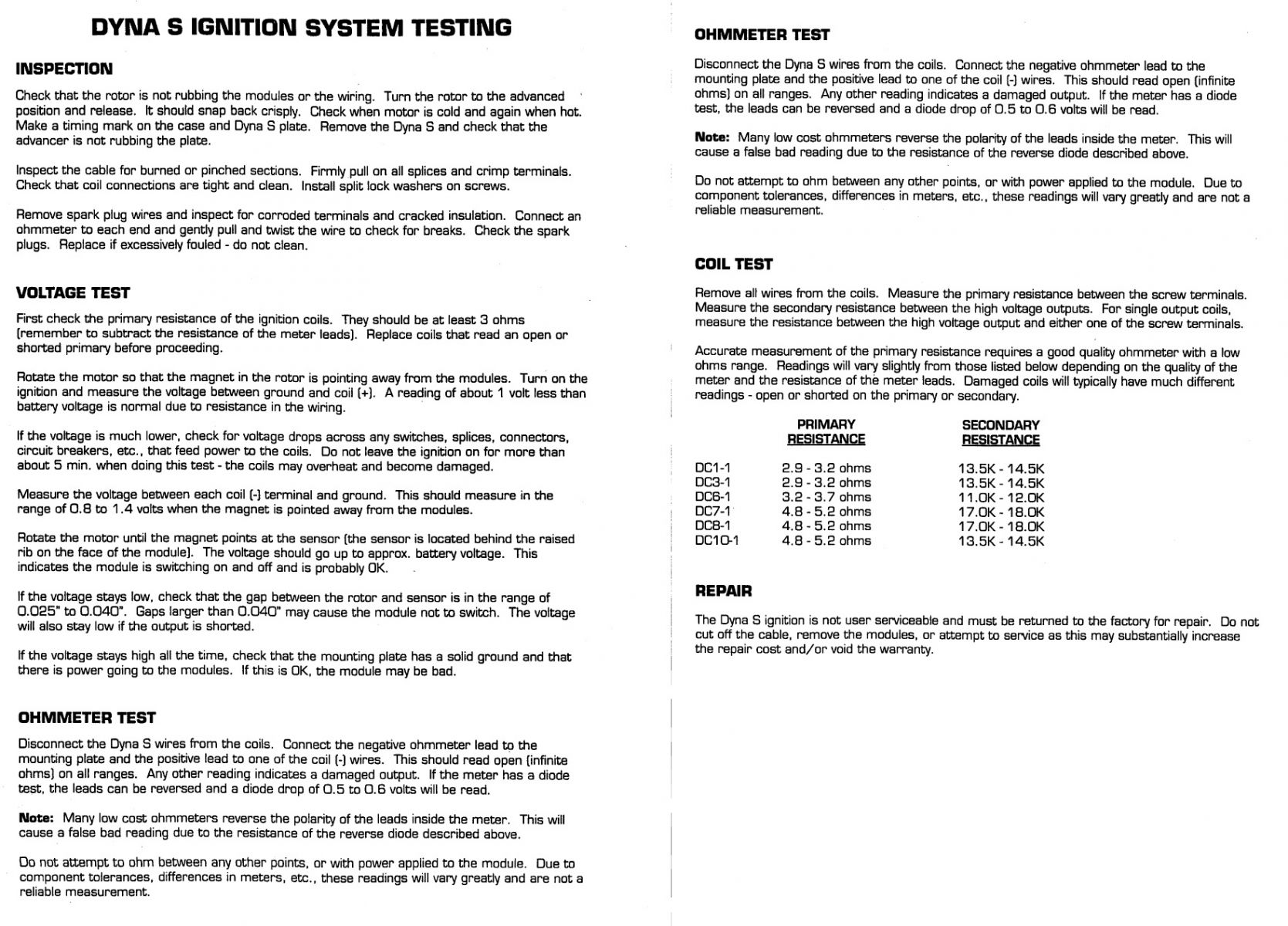

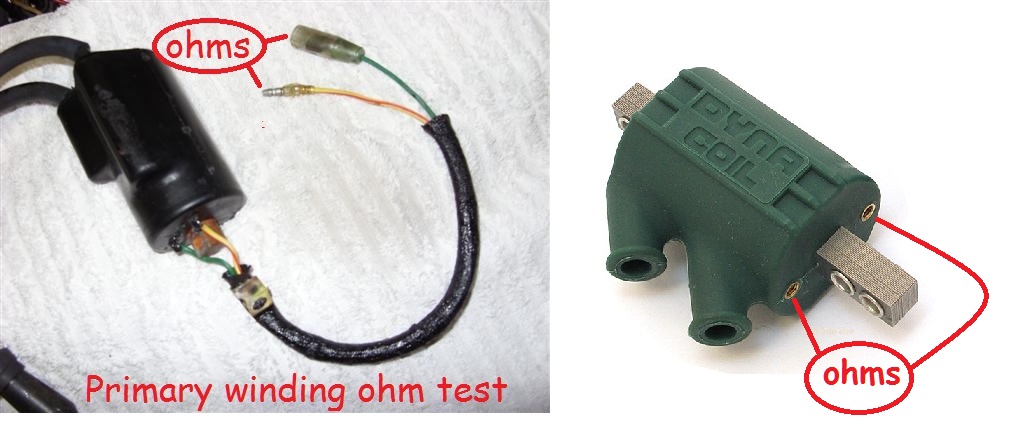

This illustration shows ohmmeter connections for measuring ohms (resistance) through an ignition coil's primary winding.
