Need opinion on Wiring Diagram
- MtStateMike
- Topic Author
- Offline
- User
92 KZ1000p
Lumberport, WV
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- MtStateMike
- Topic Author
- Offline
- User
- Posts: 38
- Thank you received: 0
Attachment kz1000pWiringDiagram.png not found
92 KZ1000p
Lumberport, WV
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391

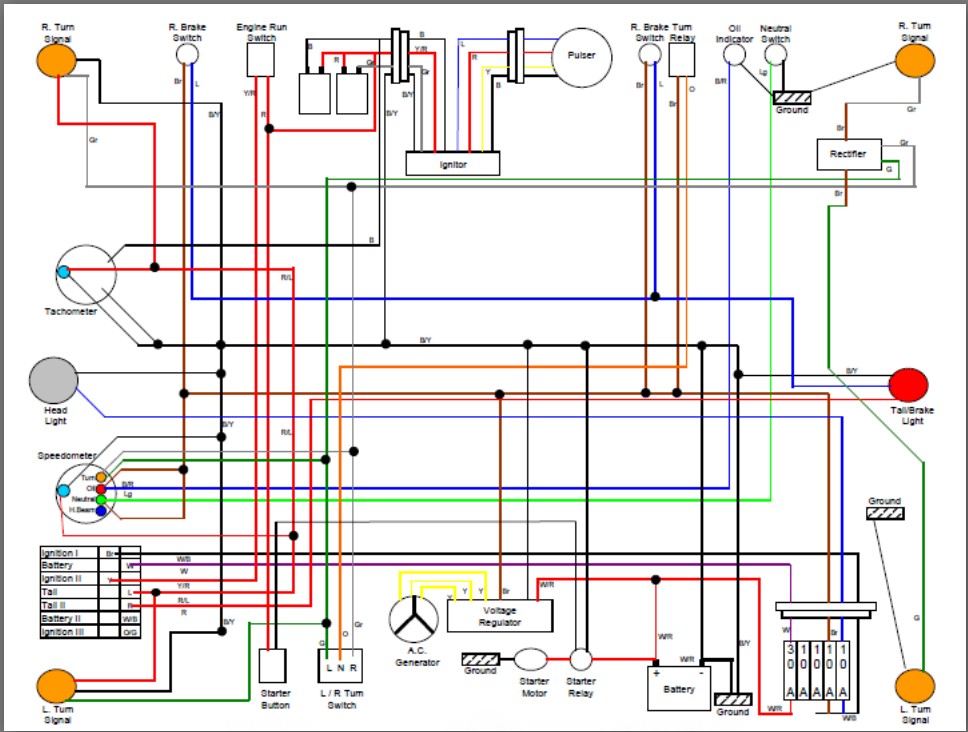

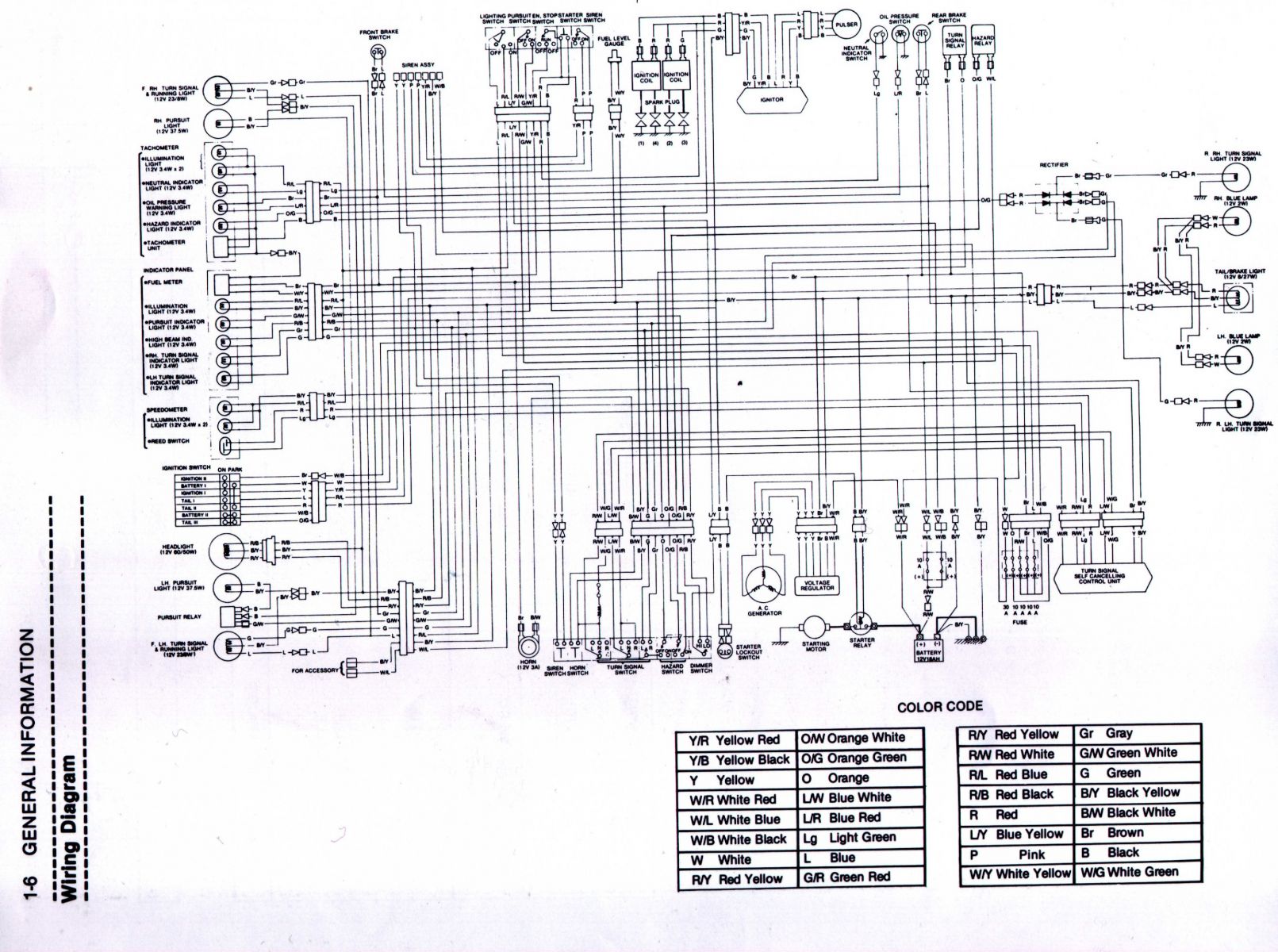

Blew it up a bit more.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- MtStateMike
- Topic Author
- Offline
- User
- Posts: 38
- Thank you received: 0
What I can't figure out is why I can't get an power out of the Blue and Red wires coming from the ignition. I can't find where it has any other leads into the battery from those two wires. I have checked and double checked.
92 KZ1000p
Lumberport, WV
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391

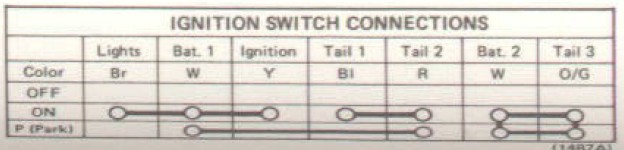

Ok did some research, found other models which take the same Ignition switch and found a diagram with the contact info.
The Blue, Tail light 1 wire comes off of the fuse panel, through the factory lighting switch, then to the ignition switch, then with that contact closed in Position 1 will supply power out to the red. So you need a input To the Ignition Switch on the blue to have power out on the Red.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- MtStateMike
- Topic Author
- Offline
- User
- Posts: 38
- Thank you received: 0
i actually got everything hooked up by running my tail & headlight off the blue coming out of the fuse box. turn signals, brake light and illumination lights off the brown out of the fuse box. got it all hooked up and tried the starter. It turned over, so all is good right now. going to pull the wires out now and put a cover on it as a complete harness.
92 KZ1000p
Lumberport, WV
Please Log in or Create an account to join the conversation.
- wireman
- Offline
- User
- The most interesting prick in the world
- Posts: 4761
- Thank you received: 299
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.
Please Log in or Create an account to join the conversation.
- Gabe42
- Offline
- User
- Posts: 11
- Thank you received: 0
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Is there a prize for correctly guessing who this was heard from? :lol:Gabe42 wrote: I have heard that these bikes can wired and ran off of two wires through the whole bike. Does anybody know how to do this? And what are the pros and cons to doing so?
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
