fried dyna s???
- marcusdesmond
- Topic Author
- Offline
- User
Less
More
22 Nov 2012 20:00 #559647
by marcusdesmond
fried dyna s??? was created by marcusdesmond
Recently acquired a 1976 kz900. The wires to the kill switch and start button had been ripped out of the handle. Found the wires to get it to turn over. But was not getting any fire. Got the coils wired up. While I was testing each coil I touched the pickup lead on the coil with the ground by mistake. This caused the fuse to blow. Put new fuse in and tried to start..only getting spark on cylinders 1@4 .if I reverse the leads going to the coils I'm only getting spark on cylinders2@3. Is that side of my dyna s fried from being shorted to grounded out. How can I test it.
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
Less
More
- Posts: 7246
- Thank you received: 337
22 Nov 2012 21:16 #559659
by bountyhunter
1979 KZ-750 Twin
Replied by bountyhunter on topic fried dyna s???
Could be fried, Dynas are known for blowing up on a regular basis. Shorting the Dyna's coil drive output terminal to ground could blow it.
Test it?
I would swap the known good pickup and known good coil to each side of the Dyna in turn and see if the spark goes with them or not.
Test it?
I would swap the known good pickup and known good coil to each side of the Dyna in turn and see if the spark goes with them or not.
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- baldy110
- Offline
- User
Less
More
- Posts: 2272
- Thank you received: 512
23 Nov 2012 20:34 - 23 Nov 2012 20:35 #559794
by baldy110
Where do you get that info from? Been running a Dyna S in my 650 for about 20 years now. Every older bike I own has a Dyna S and I have never had any issues with them.
Could be the 2+3 coil bad also try switching coils and see what happens.
Replied by baldy110 on topic fried dyna s???
bountyhunter wrote: Could be fried, Dynas are known for blowing up on a regular basis.
Where do you get that info from? Been running a Dyna S in my 650 for about 20 years now. Every older bike I own has a Dyna S and I have never had any issues with them.
Could be the 2+3 coil bad also try switching coils and see what happens.
Last edit: 23 Nov 2012 20:35 by baldy110.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
23 Nov 2012 21:10 - 23 Nov 2012 21:33 #559798
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic fried dyna s???
As known, the 1&4 coil primary winding grounds and ungrounds through a black wire connected to the left Dyna-S module. And the 2&3 coil primary winding grounds and ungrounds through a green wire connected to the right Dyna-S module.
Perhaps there's an internal break or fray in the green wire from the right Dyna-S module.

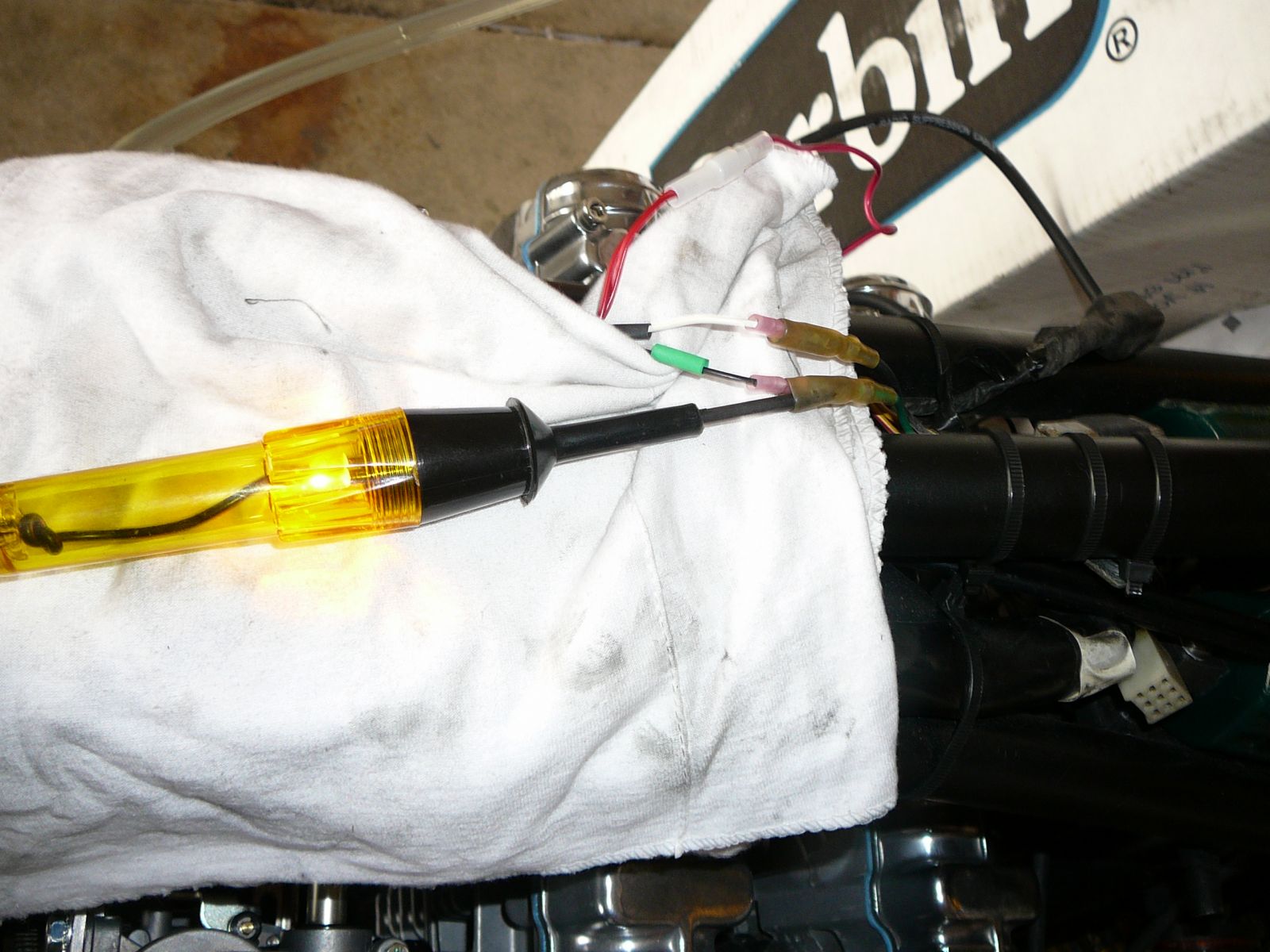

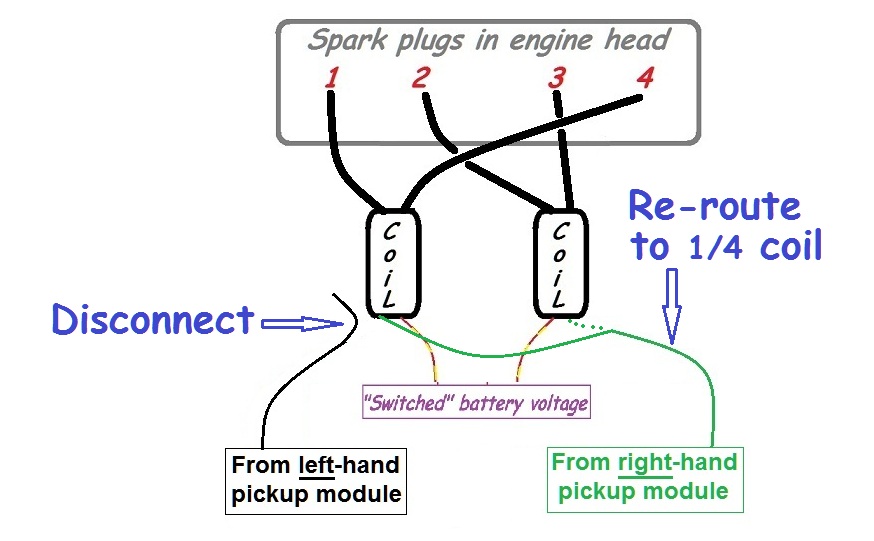

As left module to left coil will produce spark on outside plugs 1&4, could test whether right module to left coil will also produce spark on outside plugs 1&4.
