13 Sep 2012 13:12 #548456 by mwriders
Grounding Turn Signals was created by mwriders

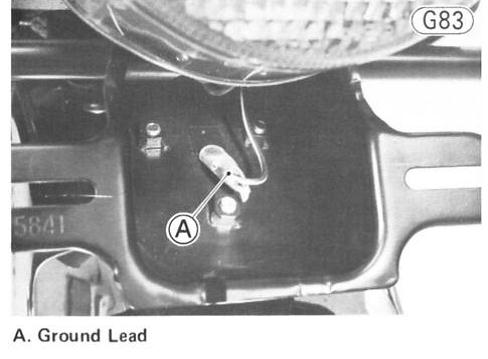

I've found a set of turn signals that I like for my 440B1. Here's the thing: The 440's setup in the rear is for a single lead, that being the hot wire (?). The signals are grounded, apparently, by grounding the entire rear lamp/signal mount (see pic from FSM). Since the mount and the signal housings are both metal, this grounds the entire system (tail light/signals).

Am I reading that correctly? If so, can I use 2-lead turn signals in the rear by 1) Just not connecting the ground lead from the signals and counting on the grounded housing being enough, or by 2) Attaching the ground lead from the signals to the same location in the tail light housing as the main ground wire?


1980 Kawasaki KZ440B (brand new eBaby)
1998 Ducati 900S (gone)
1978 BMW R100S (gone, damn it)
1975 Yamaha RD350 cafe (gone)
1986 Yamaha XJ650 Seca (gone)
1981 Kawasaki KZ440LTD (gone)
1969 HD Sportster (gone :)
1966 Honda CB160 (gone, damn it)
1965 Suzuki 80
Attachments:

Please Log in or Create an account to join the conversation.

  • z1kzonly
  • Offline
  • User
  • Sustaining Member
More
13 Sep 2012 15:11 #548471 by z1kzonly
Replied by z1kzonly on topic Grounding Turn Signals

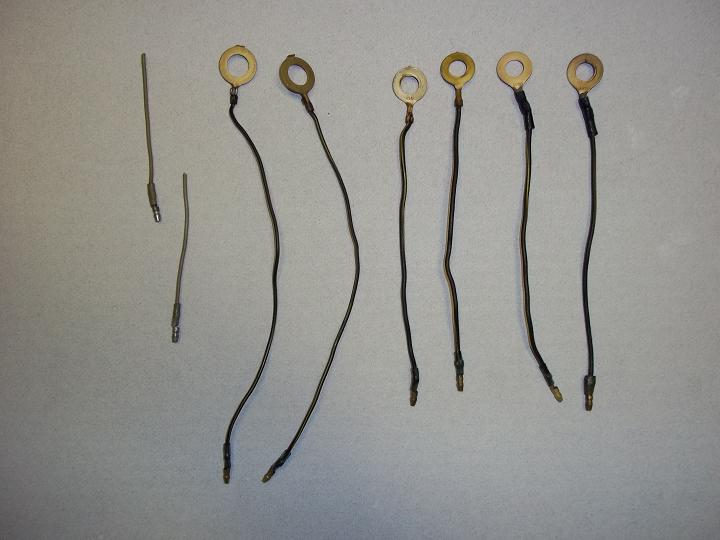

Z1 and KZ use these, these are on auction on ebay right now.
search blinker ground wire.

Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:

Please Log in or Create an account to join the conversation.

More
13 Sep 2012 15:47 #548474 by MFolks
Replied by MFolks on topic Grounding Turn Signals
Color Codes On Most Kawasaki’s (written for 1980’s bikes)

HEADLIGHT
RED with BLACK stripe, High Beam.
RED with YELLOW stripe, Low Beam.
BLACK with YELLOW stripe, the ground circuit.

BRAKE/TAIL LIGHT Can be an # 1157 dual filament bulb
RED, Running or Tail Light.
BLUE,(sometimes with a Red stripe) Brake Light Circuit.
BLACK with YELLOW stripe, the ground circuit.

LEFT FRONT TURN SIGNAL Can be an #1157 dual filament bulb
GREEN, Left front turn signal circuit.
BLUE, Left front running light circuit.
BLACK with YELLOW stripe, the ground circuit.

RIGHT FRONT TURN SIGNAL Can be an # 1157 dual filament bulb
GREY, Right front turn signal circuit.
BLUE, Right front running light circuit.
BLACK with YELLOW stripe, the ground circuit.

LEFT REAR TURN SIGNAL Can be an #1156 single filament bulb
GREEN, Left rear turn signal circuit.
BLACK with YELLOW stripe, the ground circuit.

RIGHT REAR TURN SIGNAL Can be an #1156 single filament bulb
GREY, Right rear turn signal circuit.
BLACK with YELLOW stripe, the ground circuit.

1982 GPZ1100 B2
