Replacement Brake light probems, atermarket
- Knowmad
- Topic Author
- Offline
- User
Less
More
29 Jul 2012 15:20 #539400
by Knowmad
Replacement Brake light probems, atermarket was created by Knowmad
No eBay APP ID and/or Cert ID defined in Kunena configurationI am replacing my OEM brake light with an aftermarket that has two cat eye lights.
I have the brake light mounted and the new light has 6 wires, 3 for each light but the OEM wiring has 3 wires, black stripe, red, and blue. I have spliced new wires so each color is two into 1 (black, red, yellow). When hooked up, black to black, red to red, yellow to blue, both brake lights shine bright. When the brake is applied, both brake lights dim. Any idea what the problem is?
Any suggestions appreciated.
Light can be seen at
1978 kz1000
Dave
I have the brake light mounted and the new light has 6 wires, 3 for each light but the OEM wiring has 3 wires, black stripe, red, and blue. I have spliced new wires so each color is two into 1 (black, red, yellow). When hooked up, black to black, red to red, yellow to blue, both brake lights shine bright. When the brake is applied, both brake lights dim. Any idea what the problem is?
Any suggestions appreciated.
Light can be seen at
1978 kz1000
Dave
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
Less
More
- Posts: 6650
- Thank you received: 540
29 Jul 2012 15:24 #539401
by MFolks
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Replied by MFolks on topic Replacement Brake light probems, atermarket
BRAKE/TAIL LIGHT Can be an # 1157 dual filament bulb
RED, Running or Tail Light.
BLUE,(sometimes with a Red stripe) Brake Light Circuit.
BLACK with YELLOW stripe, the ground circuit.
RED, Running or Tail Light.
BLUE,(sometimes with a Red stripe) Brake Light Circuit.
BLACK with YELLOW stripe, the ground circuit.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
Less
More
- Posts: 6650
- Thank you received: 540
29 Jul 2012 15:28 #539402
by MFolks
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Replied by MFolks on topic Replacement Brake light probems, atermarket
You might need to get a multimeter to figure out the wiring, as most after market manufacturers don't usually use a standard wire color for different functions.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
29 Jul 2012 18:02 #539420
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Replacement Brake light probems, atermarket

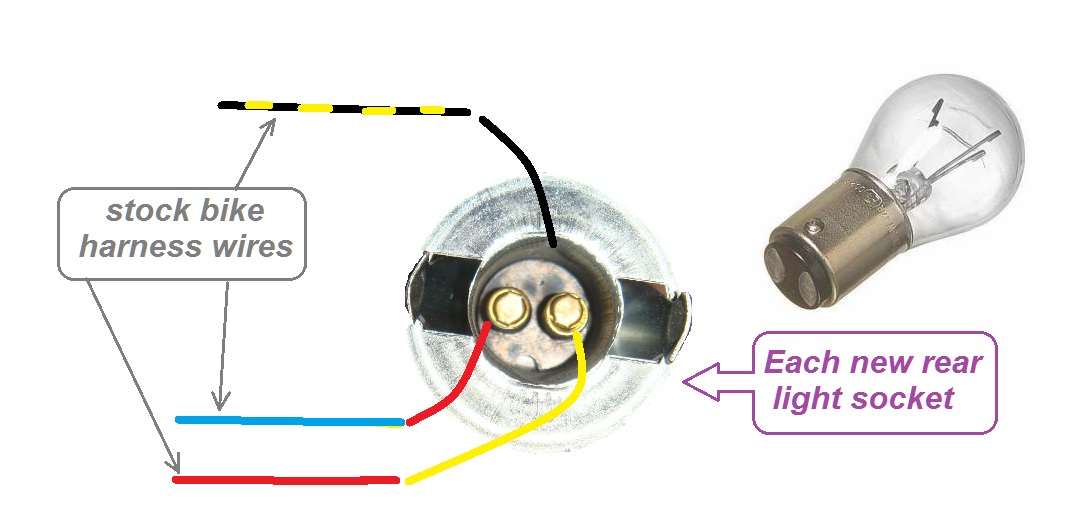

Could test rear light functions using these connections, which guesses each new rear light is black-ground, yellow-tail, and red-brake:
Good Fortune!
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Knowmad
- Topic Author
- Offline
- User
Less
More
- Posts: 31
- Thank you received: 0
29 Jul 2012 19:18 #539432
by Knowmad
Replied by Knowmad on topic Replacement Brake light probems, atermarket
Thanks everyone, I will give these a try. dave
Please Log in or Create an account to join the conversation.
- DiamondSkyBlue1000
- Offline
- User
Less
More
- Posts: 345
- Thank you received: 40
29 Jul 2012 20:19 - 29 Jul 2012 21:45 #539448
by DiamondSkyBlue1000
Replied by DiamondSkyBlue1000 on topic Replacement Brake light probems, atermarket
You've got them wired backwards. The tail light circuit (red wire) is lighting up both the brake light and tail light filaments in your bulbs and when the brake light circuit (blue wire) is applied it is bucking the taillight circuit at the point where the two filaments are joined. This causes the brake light filament to go out yet the taillight filament stays on all the time.

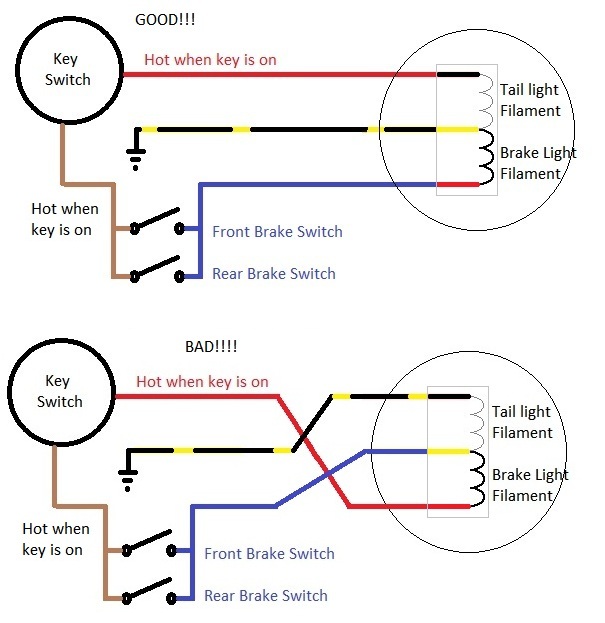

Look at the diagrams, the top one is what you want, the bottom one is what you got which is wrong.
