How to hot wire tail light
- peterg
- Topic Author
- Offline
- User
Due to wiring deterioration I have been cleaning the wiring up and in doing so I Installed toggle switches for the headlight on and off and high and low beam.
All electrics work except for one issue, I cannot work out why the tail and parking light are not working.
I have traced the red wire back from the tail light socket to the ignition switch and have continuity. What am I missing here?
Is there a method where I can wire up the tail light to be on when ignition is on?
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225
Measure for voltage on TL1 (ignition switch, no ~ 12Vdc then there's your problem....
If voltage present, measure TL2, if missing Vdc then ignition switch crapped.
If Voltage present then rear bulb holder/open conductor etc...
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
peterg wrote: Can the forum suggest a way to hot-wire the tail light on my KZ 650B 1977.
Due to wiring deterioration I have been cleaning the wiring up and in doing so I Installed toggle switches for the headlight on and off and high and low beam.
All electrics work except for one issue, I cannot work out why the tail and parking light are not working.
I have traced the red wire back from the tail light socket to the ignition switch and have continuity. What am I missing here?
Is there a method where I can wire up the tail light to be on when ignition is on?
tail and parking light are not working --
Is the brake light involved in this discussion?
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
- Posts: 6650
- Thank you received: 540
RED, Running or Tail Light.
BLUE,(sometimes with a Red stripe) Brake Light Circuit.
BLACK with YELLOW stripe, the ground circuit.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- peterg
- Topic Author
- Offline
- User
- Posts: 22
- Thank you received: 1
I am wondering would the removal of the headlight wires( Brown, Bl/W, Br/W) from the RH switch assembly to a separate toggle switch have any bearing on the problem? Or is the tail light a separate circuit entirely.
This wiring replacements and harness repairs has been an enjoyable challenge for me staring from a position of knowing stuff all about electrics. Learnt a lot along the way, but obviously not enough. Have the bike up and running well with the tail light the last piece of the puzzle to be solved.
Cheers
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
The tail light could be wired into any connector having switched positive voltage, such as an accessory connector (or possibly the brown wire), which should provide voltage to the tail light whenever the ignition switch is turned ON.peterg wrote: Can the forum suggest a way to hot-wire the tail light on my KZ 650B 1977... I cannot work out why the tail and parking light are not working...Is there a method where I can wire up the tail light to be on when ignition is on?
I don't know about the "parking" light connection from the ignition switch, other than studying the stock wiring diagram (which may show the ignition switch connections for the parking light).
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098

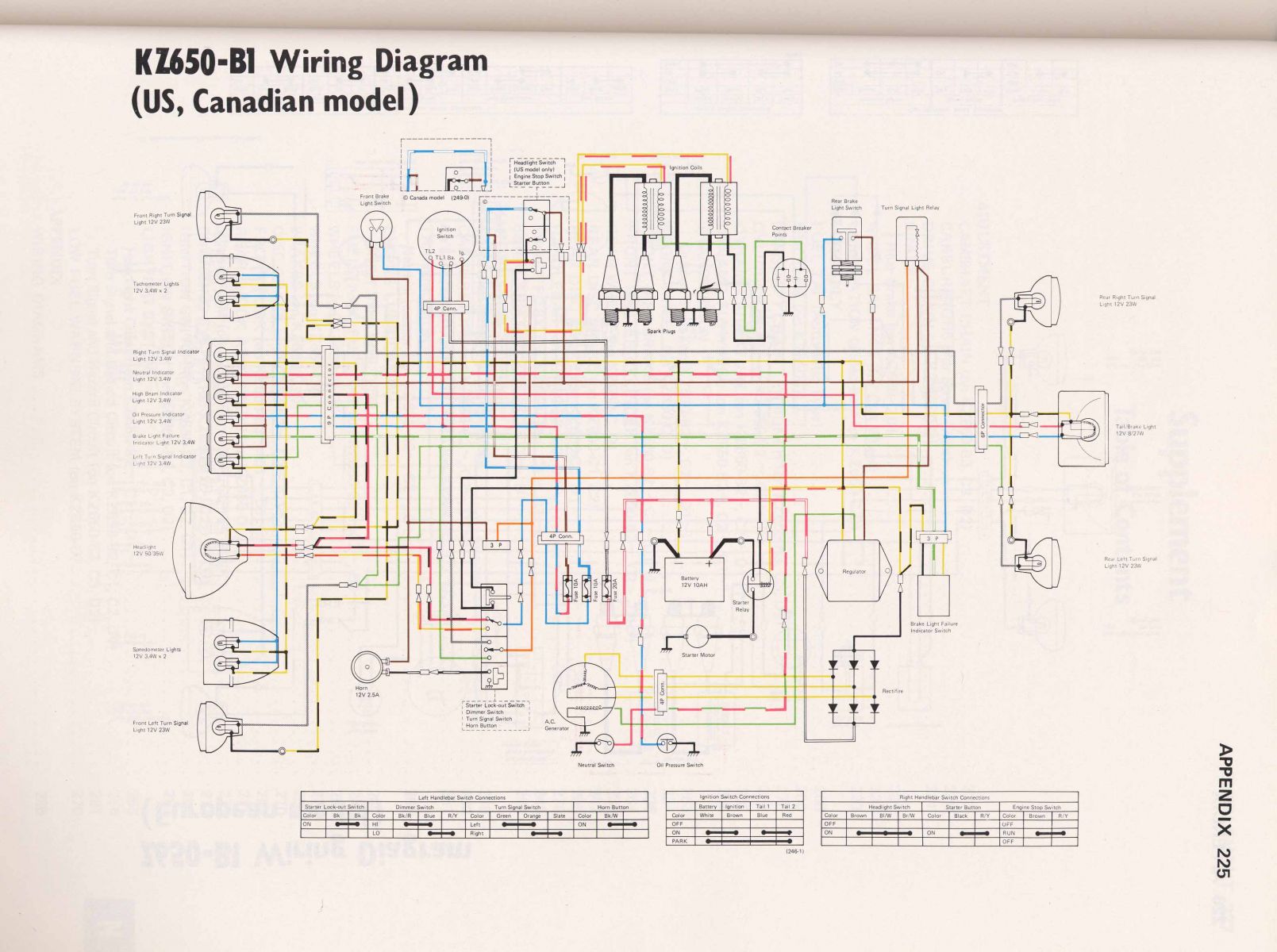

www.kzrider.com/filebase/doc_download/288-z650b1
