Installing a Dyna S on my Kz1000

  • Ogcoda
  • Topic Author
  • Offline
  • User
  • Killing Everything
More
16 May 2012 15:53 #522723 by Ogcoda
Installing a Dyna S on my Kz1000 was created by Ogcoda
So I just got my Dyna S and have already removed my old points system off my bike. I started reading the instructions and found out that this might be a little harder then i had figured.... The instuctions are super confusing and I'm not very good with this kinda stuff in the first place. Anyone have some tips or tricks for getting this beast set up and timed right?
1978 kz1000 Bobber
2006 MazdaSpeed6

Please Log in or Create an account to join the conversation.

  • Kawickrice
  • Offline
  • User
  • After Monday & Tuesday, even the calendar says WTF
More
16 May 2012 19:47 #522759 by Kawickrice
Replied by Kawickrice on topic Installing a Dyna S on my Kz1000
You should do a search as this has been covered before with good pics and detailed instructions. It would be quicker to do a search than it would be to retype it minus pics.

What part of the installation has you stumped? It is not super complicated but I agree that the instructions leave a lot to be desired
73 Kawasaki Z1
07 HD CVO Ultra Classic
82 Suzuki GS 1100
74 Yamaha RD 350 (My two stroke toy)
77 Kawasaki KZ 650B-1 (My putt around bike)
80 Indian Moped (My American Iron)
1
Long Gone
75 Suzuki GT550
74 GT 380
79 RD 400 Daytona Special
72 Honda CL 175
74 Honda QA 50
Tampa FL

Please Log in or Create an account to join the conversation.

  • Ogcoda
  • Topic Author
  • Offline
  • User
  • Killing Everything
More
16 May 2012 22:33 #522796 by Ogcoda
Replied by Ogcoda on topic Installing a Dyna S on my Kz1000
well kinda the whole thing... I have searched a few times and couldn't find what i was looking for. I need help on the whole deal setting timing and all!
1978 kz1000 Bobber
2006 MazdaSpeed6

Please Log in or Create an account to join the conversation.

  • Motor Head
  • Offline
  • User
  • FIX UP YOUR BIKE RIGHT AND CHEAP
More
16 May 2012 22:37 #522797 by Motor Head
Replied by Motor Head on topic Installing a Dyna S on my Kz1000

Kawickrice wrote: You should do a search as this has been covered before with good pics and detailed instructions. It would be quicker to do a search than it would be to retype it minus pics.

What part of the installation has you stumped? It is not super complicated but I agree that the instructions leave a lot to be desired


kzrider.com/index.php?option=com_user&vi...bGxhdGlvbi1ieS1vbXI=
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...

Please Log in or Create an account to join the conversation.

  • Ogcoda
  • Topic Author
  • Offline
  • User
  • Killing Everything
More
17 May 2012 01:23 #522846 by Ogcoda
Replied by Ogcoda on topic Installing a Dyna S on my Kz1000
alright, so i followed the instructions and this is what my problem is now....

I have it hooked up just as it said to and I'm not getting the 12v light to turn on at all. So thinking i must have mested up somewhere i unhooked the red connector to try it again, and the light came on.... BUT it stays on no matter where the timing is. :blink: And if i plug it back in to where it was before(Yellow/Red Wire) It shuts the 12v light off. Any ideas guys?
1978 kz1000 Bobber
2006 MazdaSpeed6

Please Log in or Create an account to join the conversation.

More
17 May 2012 09:31 - 17 May 2012 09:45 #522880 by Old Man Rock
Replied by Old Man Rock on topic Installing a Dyna S on my Kz1000

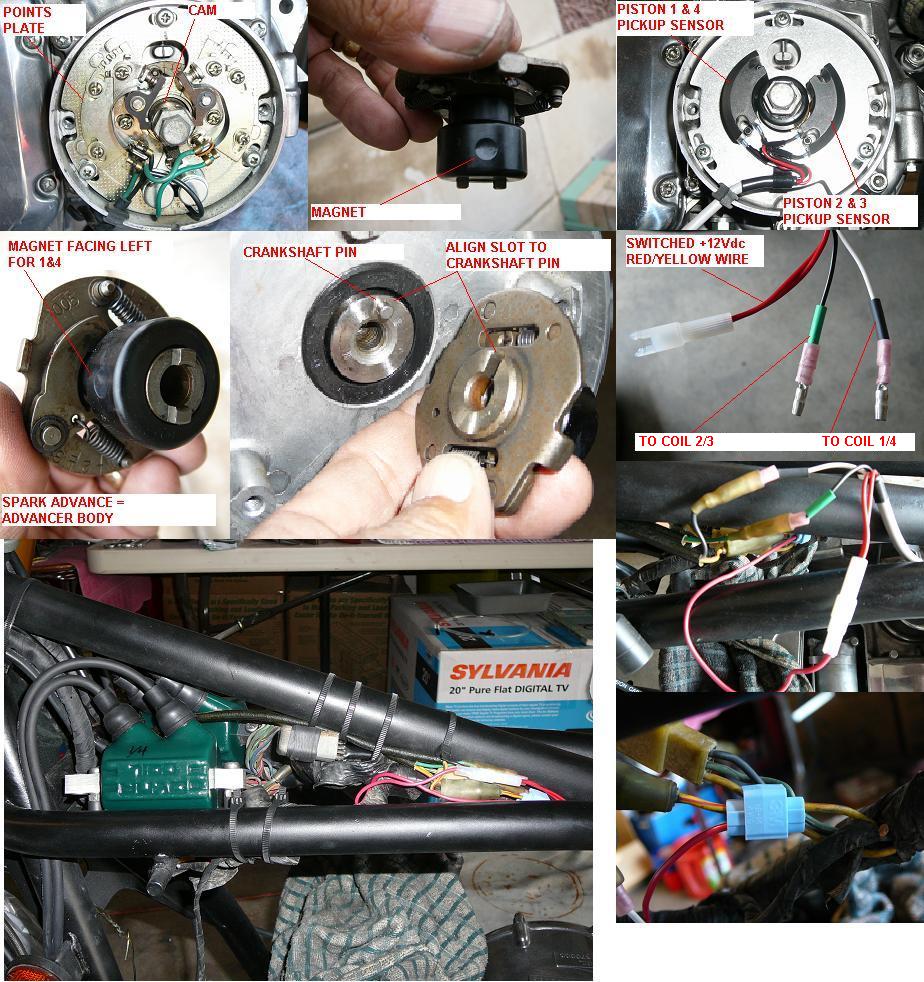

Are you following this.... dyna-s-ds2-1-installation-by-omr

Wiring Diagram...

NOTE: For the DYNA IE to operate, the ENGINE must be grounded!
In reference to switched battery voltage (~ +12Vdc), the ignition plate is grounded through the engine mounting.

Attachment DynaSBenchTest.JPG not found



Rotor Magnet facing 1/4 @ TDC...?

1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az
Attachments:
Last edit: 17 May 2012 09:45 by Old Man Rock.

Please Log in or Create an account to join the conversation.

  • Motor Head
  • Offline
  • User
  • FIX UP YOUR BIKE RIGHT AND CHEAP
More
17 May 2012 09:36 #522882 by Motor Head
Replied by Motor Head on topic Installing a Dyna S on my Kz1000
www.dynaonline.com/skins/downloads/Default.aspx
Download the Dyna S testing pdf file from Dyna's web site. it will explain how to check it as you are installing.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
