Hi there
could anyone tell me the fuse layout and values for my KZ. I have a pdf of the manual but cant read it.
Cheers
Fergie
could anyone tell me the fuse layout and values for my KZ. I have a pdf of the manual but cant read it.
Cheers
Fergie
KZ1100D1
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
09 May 2012 11:03 #520973
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic KZ1100 fuse layout
Wiring diagram in FILEBASE may be helpful.
Good Fortune!
Attachment filebasekzr.jpg not found
Good Fortune!
1973 Z1
KZ900 LTD
Attachments:
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
09 May 2012 11:06 #520975
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic KZ1100 fuse layout
Here's a link to a free down-loadable service manual:
Click here > www.kawiworld.com/index.php?option=com_c...icle&id=77&Itemid=99
Good Fortune!
Click here > www.kawiworld.com/index.php?option=com_c...icle&id=77&Itemid=99
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- tito
- Offline
- User
Less
More
- Posts: 17
- Thank you received: 3
09 May 2012 11:42 #520983
by tito
Replied by tito on topic KZ1100 fuse layout
Case of my kz1100b2, the main fuse is 30A and othes are 10A. Main fuse is located 2nd from right. I assume that the layout is depend on the model.
The following user(s) said Thank You: fergieuk
Please Log in or Create an account to join the conversation.
- fergieuk
- Topic Author
- Offline
- User
Less
More
- Posts: 36
- Thank you received: 0
09 May 2012 12:09 #520988
by fergieuk
Cheers for links Patton.
I have that manual download but fuse layout wasnt making sense and I couldnt read the pdf very well. Anyway had lifted the fuse box and noted it same layout as tito's B2 on my D1 spectre.
Does the fuse box on these give problems? I did a bladed conversion on my Yam XS1100, just wondering if worth the bother on this or just clean it up?
KZ1100D1
Replied by fergieuk on topic KZ1100 fuse layout
Patton wrote: Here's a link to a free down-loadable service manual:
Click here > www.kawiworld.com/index.php?option=com_c...icle&id=77&Itemid=99
Good Fortune!
Cheers for links Patton.
I have that manual download but fuse layout wasnt making sense and I couldnt read the pdf very well. Anyway had lifted the fuse box and noted it same layout as tito's B2 on my D1 spectre.
Does the fuse box on these give problems? I did a bladed conversion on my Yam XS1100, just wondering if worth the bother on this or just clean it up?
KZ1100D1
Please Log in or Create an account to join the conversation.
- tito
- Offline
- User
Less
More
- Posts: 17
- Thank you received: 3
09 May 2012 13:05 - 09 May 2012 13:10 #521000
by tito
Replied by tito on topic KZ1100 fuse layout
Yes, it is worth replacing with blade type. Blade type is easier to find from any car shop and my main fuse was kept burning out until I clean all terminal/connection with Deoxit, that was suggested by MFolks from this forum. :laugh:
btw,,, the enlarged wire diagram pdf can be found from this link.
kzrider.com/filebase/cat_view/102-1982/195-kawasaki-kz-1100-d1
this doesn't tell you the layout thought,,,,
btw,,, the enlarged wire diagram pdf can be found from this link.
kzrider.com/filebase/cat_view/102-1982/195-kawasaki-kz-1100-d1
this doesn't tell you the layout thought,,,,
Last edit: 09 May 2012 13:10 by tito. Reason: add a sentence
Please Log in or Create an account to join the conversation.
- chrisM
- Offline
- User
Less
More
- Posts: 31
- Thank you received: 1
19 Feb 2018 22:10 #779040
by chrisM
Replied by chrisM on topic KZ1100 fuse layout
I know this is a few years late but I had the same question for my kz1100 and stumbled upon this thread, so maybe this will be useful to someone down the road:
From left to right if you are facing the handlebars: Head light (10A) - Horn / Ignition (10A). - Tail / Meter (10A) - Main (30A) - Flasher (10A)

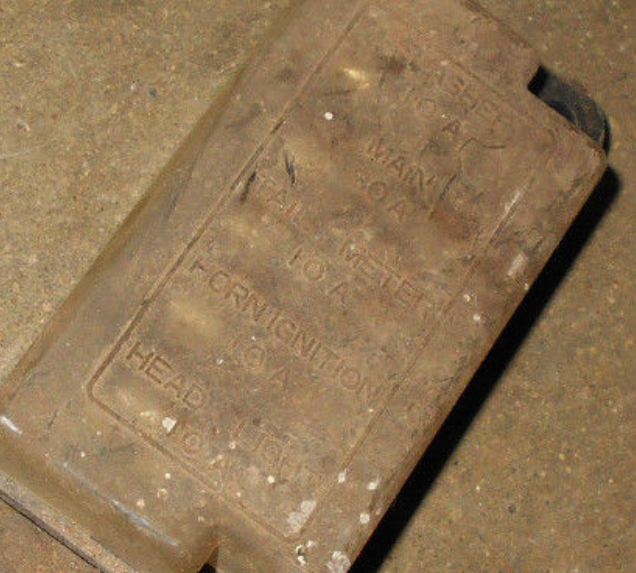

I found this pic on an eBay post of someone selling one
From left to right if you are facing the handlebars: Head light (10A) - Horn / Ignition (10A). - Tail / Meter (10A) - Main (30A) - Flasher (10A)
I found this pic on an eBay post of someone selling one
The following user(s) said Thank You: CCrosswait
