Lights don't work and plugs won't spark
- kz_fl
- Topic Author
- Offline
- User
Less
More
05 Mar 2012 17:26 #507966
by kz_fl
1980 kz650
1983 kz1100 LTD
Replied by kz_fl on topic Lights don't work and plugs won't spark
Update #3:
Don't ask me how, but I got the bike running. The light stilll arne't working, but I'm just going to rewire them manually to avoid the headache of a wiring diagnosis project. However, it's only running on the interior cylinders. The two outer pipes are cold. This is obviously caused by the ignition coils. Strange though, that I can't seem to get a meter reading even on the working coil. I must not be touching the correct wire. I'll keep you all updated after I buy a new coil.
Don't ask me how, but I got the bike running. The light stilll arne't working, but I'm just going to rewire them manually to avoid the headache of a wiring diagnosis project. However, it's only running on the interior cylinders. The two outer pipes are cold. This is obviously caused by the ignition coils. Strange though, that I can't seem to get a meter reading even on the working coil. I must not be touching the correct wire. I'll keep you all updated after I buy a new coil.
1980 kz650
1983 kz1100 LTD
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
Less
More
- Posts: 6650
- Thank you received: 540
05 Mar 2012 18:57 #507978
by MFolks
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Replied by MFolks on topic Lights don't work and plugs won't spark
You've got a 650? the Right coil should go to #1 and #4 with the Left coil to #2 and #3 For some strange reason Kawasaki had the 550's,650's, and 750's wired backwards to the bigger 4's(900's,1000's and 1100's).
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
Less
More
- Posts: 6650
- Thank you received: 540
05 Mar 2012 18:59 #507979
by MFolks
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Replied by MFolks on topic Lights don't work and plugs won't spark
Also check the sparkplug caps(they unscrew from the sparkplug wires)using a multimeter, check the resistance as it should be 5000 ohms. If you're unsure on how to use a multimeter, just ask here.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- kz_fl
- Topic Author
- Offline
- User
Less
More
- Posts: 14
- Thank you received: 0
05 Mar 2012 19:35 #507983
by kz_fl
You're correct. The right coil goes to the outside plugs. I'm a little embarrassed, however. The reason the coils weren't reading is I didn't turn the engine stop switch to run. Whoops. And btw, I've discovered a large crack on the problem coil. So I tested the coils with the switch to RUN and now both wires going to the working coil are reading about 10v. The red/yellow wire going to the problematic coil FROM the good coil is also reading 10v. The black wire, however, coming from the breaker points going to the problem coil is only reading .30. Is the problem the breaker points or coil?
1980 kz650
1983 kz1100 LTD
Replied by kz_fl on topic Lights don't work and plugs won't spark
MFolks wrote: You've got a 650? the Right coil should go to #1 and #4 with the Left coil to #2 and #3 For some strange reason Kawasaki had the 550's,650's, and 750's wired backwards to the bigger 4's(900's,1000's and 1100's).
You're correct. The right coil goes to the outside plugs. I'm a little embarrassed, however. The reason the coils weren't reading is I didn't turn the engine stop switch to run. Whoops. And btw, I've discovered a large crack on the problem coil. So I tested the coils with the switch to RUN and now both wires going to the working coil are reading about 10v. The red/yellow wire going to the problematic coil FROM the good coil is also reading 10v. The black wire, however, coming from the breaker points going to the problem coil is only reading .30. Is the problem the breaker points or coil?
1980 kz650
1983 kz1100 LTD
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
Less
More
- Posts: 6650
- Thank you received: 540
05 Mar 2012 21:08 #507992
by MFolks
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Replied by MFolks on topic Lights don't work and plugs won't spark
Kawasaki ignition coils were marginal even when new, add years of baking under the tank, and it's time to replace them along with the sparkplugs. Dyna and Accel make a popular 3 ohm coil.
www.z1enterprises.com sells Dyna coils & sparkplug wires. Accel can be found at www.jpcycles.com and other websites.
www.z1enterprises.com sells Dyna coils & sparkplug wires. Accel can be found at www.jpcycles.com and other websites.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- kz_fl
- Topic Author
- Offline
- User
Less
More
- Posts: 14
- Thank you received: 0
12 Mar 2012 13:51 #509211
by kz_fl
1980 kz650
1983 kz1100 LTD
Replied by kz_fl on topic Lights don't work and plugs won't spark
Ok so I need your expert opinions:
Update #4:
I bought a used coil since the old one had a big ass crack down the middle of it. I tested the coil and plug wires that come off of it. Everything is hot and there is spark coming from the plug wire boots. Just in case they had fouled from sitting for a while, I bought new plugs for cylinders #1 & #4. I still don't have ignition in #4 at all and only partial in #1(I know this only because the #4 pipe stays cold for a while after starting and running the bike; #1 pipe doesn't get as hot as pipes #2 & #3). In addition, the plugs I took out were all gunked up from the gas that was getting sprayed into the cylinder but not igniting. Since I have power from the battery all the way to the cylinders, this leads me to believe that the timing on the points is off. The point is apparently connecting/disconnecting because the coil is firing, but I'm thinking it's not doing it correctly because it's not igniting. Does this sound legit? And if so, is this a job I can handle myself?
Update #4:
I bought a used coil since the old one had a big ass crack down the middle of it. I tested the coil and plug wires that come off of it. Everything is hot and there is spark coming from the plug wire boots. Just in case they had fouled from sitting for a while, I bought new plugs for cylinders #1 & #4. I still don't have ignition in #4 at all and only partial in #1(I know this only because the #4 pipe stays cold for a while after starting and running the bike; #1 pipe doesn't get as hot as pipes #2 & #3). In addition, the plugs I took out were all gunked up from the gas that was getting sprayed into the cylinder but not igniting. Since I have power from the battery all the way to the cylinders, this leads me to believe that the timing on the points is off. The point is apparently connecting/disconnecting because the coil is firing, but I'm thinking it's not doing it correctly because it's not igniting. Does this sound legit? And if so, is this a job I can handle myself?
1980 kz650
1983 kz1100 LTD
Please Log in or Create an account to join the conversation.
- HDDAN
- Offline
- User
Less
More
- Posts: 39
- Thank you received: 0
12 Mar 2012 13:58 #509214
by HDDAN
Replied by HDDAN on topic Lights don't work and plugs won't spark
go back and check everything that you did to the bike after the last time that you were able to start it. I try to do my mods one at a time to prevent this stuff from happening. It is probably something that you did. Start at the fuses.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
12 Mar 2012 21:32 - 12 Mar 2012 21:33 #509274
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Lights don't work and plugs won't spark

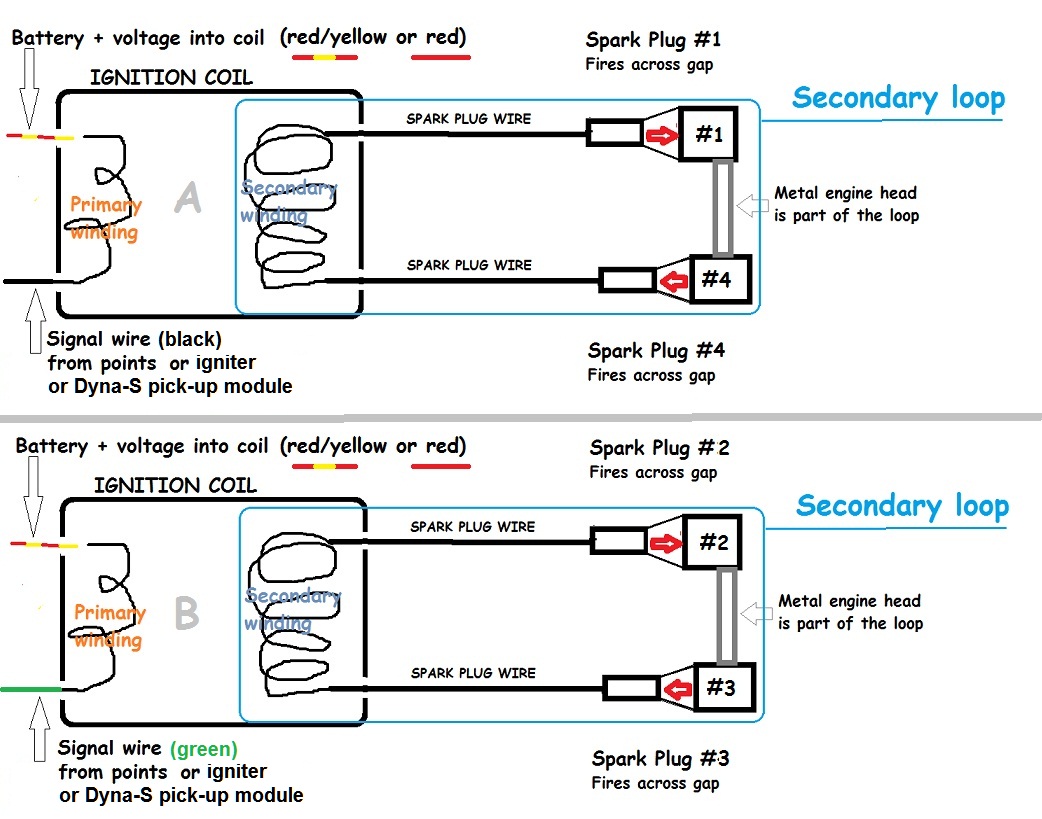

Perhaps there's insufficient voltage to the coil, for whatever reason.
With ignition switch ON and engine not running, coil should be receiving 13+ volts at its primary winding terminal.
Good Fortune!
With ignition switch ON and engine not running, coil should be receiving 13+ volts at its primary winding terminal.
Good Fortune!
1973 Z1
KZ900 LTD
